Can anybody help me to simulate this beam on Solidworks Simulation?

Hello guys,

I need to realise the analysis with solidworks simulation of a beam. Solidworks simulation shows error when I run the analysis.

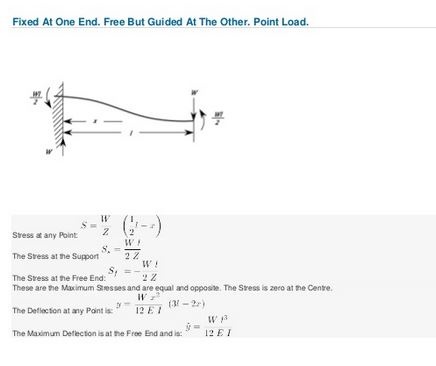

I need to design the restrictions of a beam Fixed at One End, Free but Guided at the Other, with Load. (See this page http://www.slideshare.net/Jaganeye/cantilever-beams).

I have tried to make this analysis in solidworks simulation, but I have more problems because I don't define well the restrintions. Can anybody help me to simulate this beam on Solidworks Simulation?

Thanks.

SolidworksSimulation
Answers 2
SF
SF 2013-12-09 Best Answer

hi luis, not sure why but your posts got put on the second page. maybe they were moderated for some reason because of the link.

for free/guided at the end, does the face of the end need to stay parallel to the fixed end or is it just a point in the center that needs to be guided?

JM
JM 2013-12-09

attach your *.sldprt file here.
