Can a parting line be converted to a sketch?

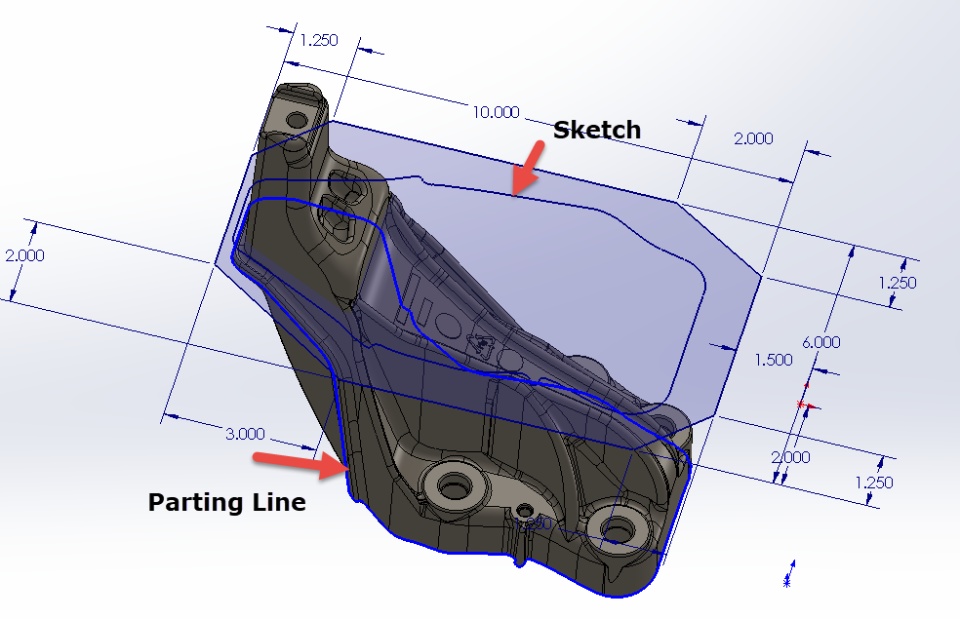

I do a lot of trim die design and most of the parts do not have a planar parting line. It would be very helpful if the parting line could be converted to sketch entities on a plane but I don't know if that is possible. Can anyone confirm this? The sketch in the picture was created by converting the edges of the part one by one which can be very tedious and difficult to generate a contiguous sketch. It would be so much easier to just select the parting line and click convert.

SolidworksSketching
Answers 14
MW
MW 2021-04-09 Best Answer

I would think so.

Post up a sample part and I will take a look

NV
NV 2021-04-09

Oh boy, settle down lol. I didn't offer a solution only to argue semantics.

Agree to disagree.

Those surface edges ARE the parting line. They EXCLUSIVELY are available for selection as a result of the parting line feature. Doesn't matter how it is achieved (try on a solid, it doesn't work). How was the parting line created? (hint: by selecting those same edges..) The blue line is just visual que for dummies who don't know how to use draft analysis or can't visualize spatially.

AN
AN 2021-04-09

Technically we are not converting the parting line to a sketch as Richard Gergely pointed out, but we are essentially accomplishing the same thing. Thank you Newell for your suggestion. I tried it and it works. You have made my life easier. Ask and you shall receive. Thanks again.

RG
RG 2021-04-09

If we look at the question it was can the PL be converted and the answer is still no. What you are actually doing is selecting the edge of surfaces to recreate the PL which is what essentially the OP already does just without the inclusion of select loop.

Looking at the parting line representation this could be by a non-editable blue 3D curve. Solidworks chose not to do it that way.

NV
NV 2021-04-09

Well the question wasn't about making sense of why, but rather can it be done. To understand why, you have to realize what the parting line feature actually does.

The parting line created in blue is nothing more than a visual representation of surface element boundaries created by the feature. It is not a sketch or even a curve really (why it doesn't display with curves but rather PL's only..) so there is nothing to convert. The only thing it does is generate the surface bodies from the solid geometry and thus the method I suggested IS essentially converting the PL.

RG
RG 2021-04-09

Yes that method works to recreate it but it still doesn't make sense why you just can't pick the PL that is already created in blue.

NV
NV 2021-04-09

It is possible. Launch a sketch, hide your PL, Solid bodies, and either cav/core surface bodies. RMB on the PL edge of the surface body shown, click "select open loop" and then convert.

DP
DP 2021-04-09

Also this:

TT
TT 2021-04-09
<p>Dusty Nogueira wrote:</p><p></p><p>What kind of an answer is that Matt "<strong>I would think so". </strong>Either you know or you don't. I would think so also but I can't seem to be able to do it and that is why I'm asking. I've been using SolidWorks since 1998 and there is a lot of things that I still don't know. Sorry for the abruptness, I always give up smoking for Lent and tis the season, so I'm a grumpy old man this time of year. I would post a sample part if I knew how to upload it. Maybe someone has some insight into this question.</p>

RG
RG 2021-04-09
<p>Nadia Shea wrote:</p><p></p><p>Create new 3D sketch and convert entities should work I think. Perhaps Fit spline as well.</p>

You can't pick it

RG
RG 2021-04-09

Doesn't work as far as I know, never found a way to convert it. Yes I agree I have no idea why it doesn't though.

EB
EB 2021-04-09

Dusty,

Click on "Use advanced editor" at the upper right of the dialog box and you will have the option to attach files to upload.

I'd be interested in having a look at the problem too, but without a relevant file (something with a complex parting line) handy it's hard to try things.

NS
NS 2021-04-09

Create new 3D sketch and convert entities should work I think. Perhaps Fit spline as well.

AN
AN 2021-04-09

What kind of an answer is that Matt "I would think so". Either you know or you don't. I would think so also but I can't seem to be able to do it and that is why I'm asking. I've been using SolidWorks since 1998 and there is a lot of things that I still don't know. Sorry for the abruptness, I always give up smoking for Lent and tis the season, so I'm a grumpy old man this time of year. I would post a sample part if I knew how to upload it. Maybe someone has some insight into this question.
