Break view problems

Hello all,

I have two problems with break view:

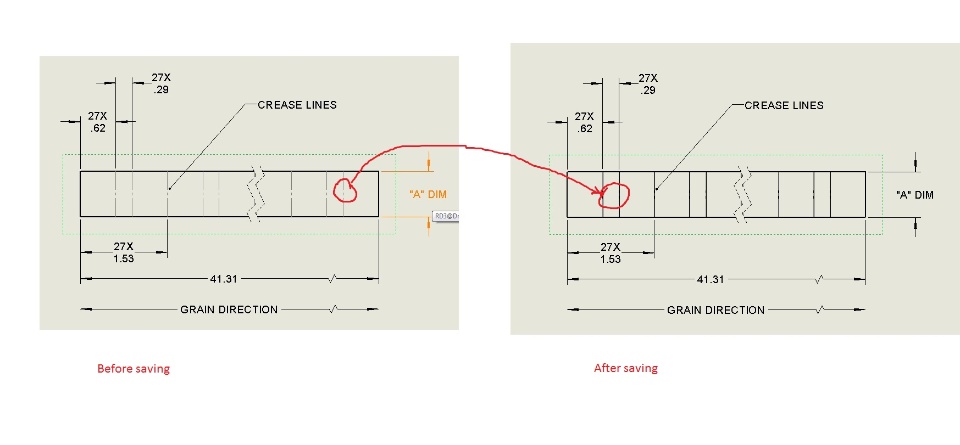

1. The bend line style become solid style after i save drawing, it's not still is the chain style. Please see the pic.1 on attach file.

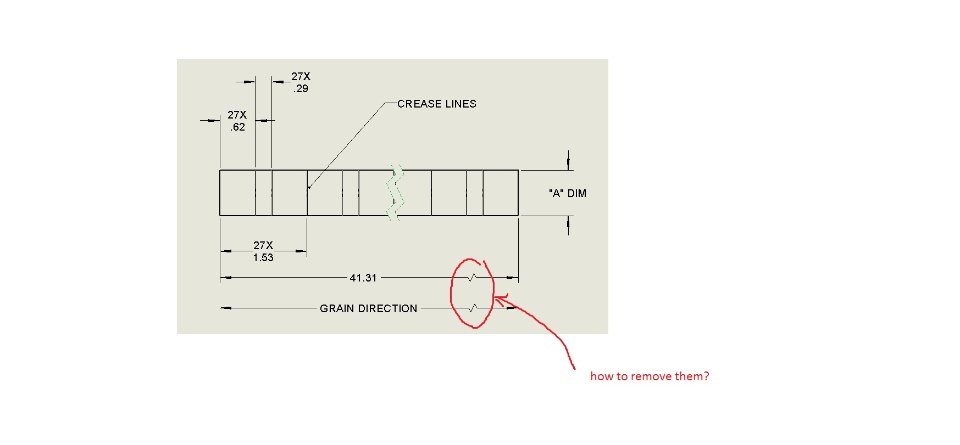

2. I want to move the break symbol dimension. Please see the pic.2 on attach file.

Thanks for your answer.

SolidworksDrawings And Detailing
Answers 2
GS
GS 2011-10-20 Best Answer

I don't use break view very much so I'm not sure about this but have you tried un-checking this for your second question?

comment imagecomment image
SF
SF 2011-10-21

Glenn,

Thank you for your help. I solved my second problem.
