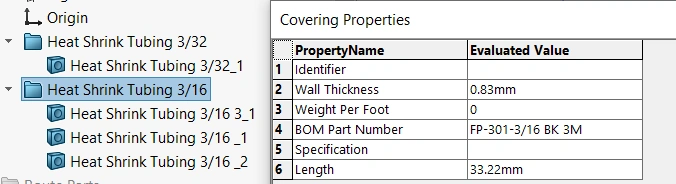

Hello! I need to display total length of isolation in BOM. I have found these properties, but I can't find "Length" property or similar when creating BOM of harness. How to show it in BOM so it will be connected to property "Length" on the image?
Hello! I need to display total length of isolation in BOM. I have found these properties, but I can't find "Length" property or similar when creating BOM of harness. How to show it in BOM so it will be connected to property "Length" on the image?
These are likely cut list properties. Enable the "detailed cut list properties" option in your BOM and you'll get access to them. Could also make a file property referencing the cut list property, then call that up in your BOM.
Make sure your model is a Sheet Metal/Weld Ment design model. If the model you import is in X.T format, select Weldment on the Weldment Tab
After selecting Weldment, you can see the Cut list displayed in the design management tree, you need to update the necessary information (Length)
On the drawing, use Column Properties and select Cutlist Item Properties to select the necessary properties from the list
If it is an assembly, use the detailed cut list properties option when creating the BOM.
