I'm using the below code to "goal seek" the desired length of a spline. Essentially I have a spline which has been trimmed to an oversized circle, and it runs a loop which adjusts the circle size smaller, measures the difference between the spline length and the desired spline length and feeds that back into the next circle size. This approaches the desired length then exits the loop when it's within 10^-6 m.

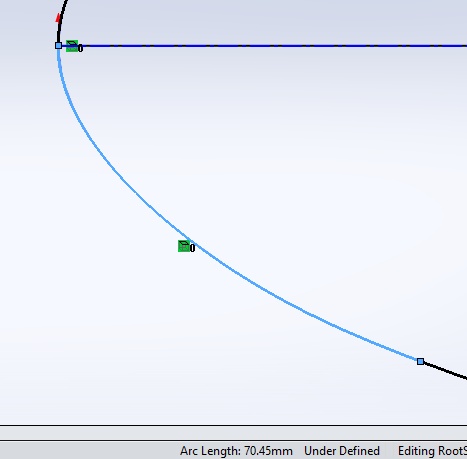

To date this method has worked quite well. However, I'm finding that lately the measured spline according to the GetLength2 function gives a different value than the Arc Length when measured in Solidworks. Does anyone know why this varies, and by so much?
Thanks for your help! Code and snapshots below:
''''''''''''''''''''''''''''''''''''
CircleDiam = 0.7
While SplineMeasure > sinDesiredArcRootLower + 0.000001
Set myDimension = Part.Parameter("D1@" & SketchNo2)
myDimension.SystemValue = CircleDiam
Part.ClearSelection2 True
Part.ClearSelection2 True
SelectSkSegFs (jj + 4) 'Part.Extension.SelectByID2 "Spline2", "SKETCHSEGMENT", 0, 0, 0, False, 0, Nothing, 0
Set swSketchSeg = swSelMgr.GetSelectedObject5(1)
Set swCurve = swSketchSeg.GetCurve
bRet = swCurve.GetEndParams(nStartParam, nEndParam, bIsClosed, bIsPeriodic)
Debug.Assert bRet
vStart = swCurve.Evaluate(nStartParam)
vEnd = swCurve.Evaluate(nEndParam)
ExtractFields vStart(6), nStartSuccess, nDummy
ExtractFields vEnd(6), nEndSuccess, nDummy
Debug.Assert nStartSuccess
Debug.Assert nEndSuccess
SplineMeasure = swCurve.GetLength2(nStartParam, nEndParam)
Debug.Print "Length = " & swCurve.GetLength2(nStartParam, nEndParam) * 1000# & " mm"
CircleDiam = CircleDiam * (sinDesiredArcRootLower + SplineMeasure) / (2 * SplineMeasure)
Wend
''''''''''''''''''''''''''''''''''''
