Angular Dimensioning

Hi All,

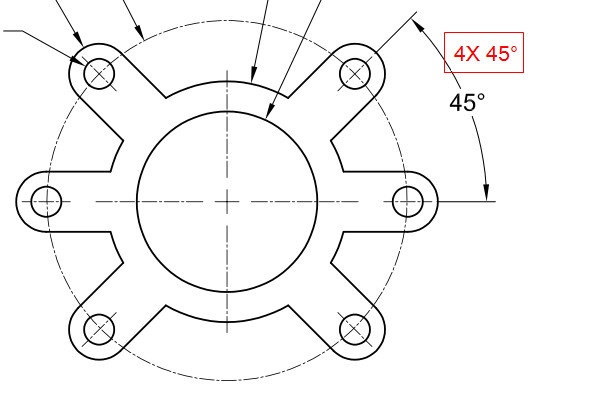

In the attached drawing there is and angular dimension for holes. From the manufacturing point of view is it good to add 4X in the angular dimension or let it be as it is. Hoping for your feedbacks.

Regards

Jitendra Gahalot

SolidworksDrawings And Detailing
Answers 3
DG
DG 2017-09-04 Best Answer

You can either of 4X or TYP and one of these should suffice.

JG
JG 2017-09-04

Thank you..

DP
DP 2017-09-05

Personally, I don't like the use of the word TYP in a drawing, unless it is the ONLY feature which has multiples.  In this case it might be ok, but don't go overboard.
