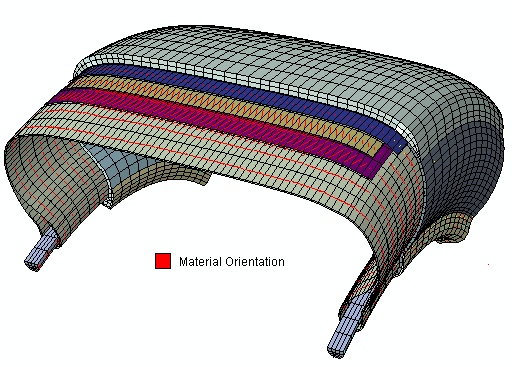

In the Ph.D. Thesis of Mr. Yang "Finite element analysis and experimental investigation of tyre characteristics for developing strain-based intelligent tyre system" I found an interesting plot about material orintations. Can anybody explain me how to create such a plot?

link to the tesis (page 108): https://etheses.bham.ac.uk/id/eprint/3072/
