Hi, I want to simulate in CST Studio Suite the "Ethernet 100BASE-T" communication lines of my PCB. Exactly, I want to see the radiated emissions produced by the ethernet communication from the connector to the PHY. The problem is that I don't know how to represent the RLC circuit in the schematics window. Does anyone have any idea about this? How do I represent the pins of the PHY and the input signal?

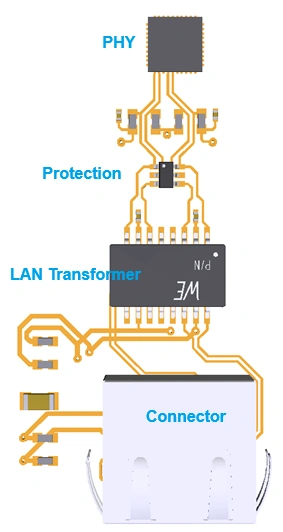

This is the circuit:
