Hi All,

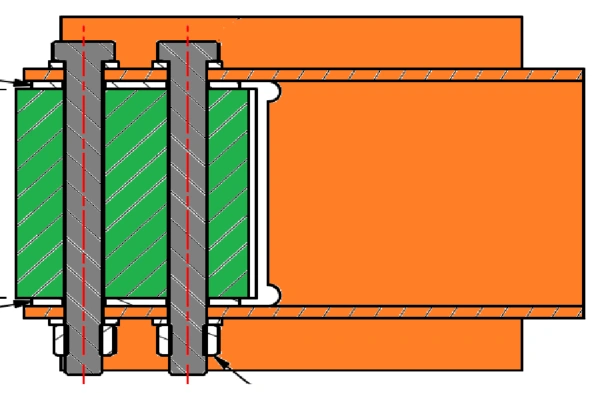

I'm currently trying to model the drawing below in Abaqus 2023.
The green is a solid block and the orange is a beam attached to the block by the bolts in grey.

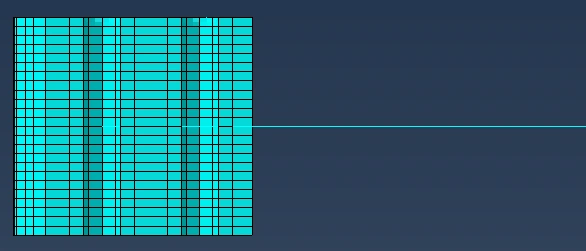

I'm trying to model the block using C3D20R elements and the beam using B32 elements as below, but am struggling to get a good model for the bolted connection.
Can anyone offer any advice?
Thank you 🙂
