Hi everyone,

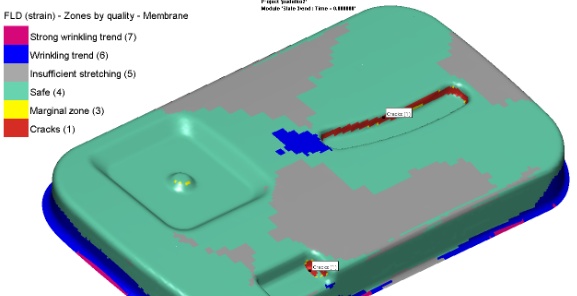

I want to create a plug-in for FLD Damage in order to visualize the contour plot in function of the wrinkling, stretching, safe, marginal and crack areas (something like picture attached). I think that visualizing the FLD contour plot in this way is more readable. To do that, I'd need create a custom legend in which the intervals should show text instead float values.

I was reading the API documentation, but ContourOptions objet doesn't have an, let me say, intervalLabel. However, Abaqus can show text like when you plot contact status whose legend as labes such as: not in contact, sliding, sticking. I can create and modify interval values by setValues(intervalValues=(float1, float2, float3)), but no showing text.

Is there any way or work around to reach that?

thanks in advance.
