I am having problems with printing to PDF from Draftsight, whether through Draftsight's direct PDF output, or through a third party PDF printer driver. This problem existed in SP2016 and has followed through into SP2017.

I am creating drawings with a title block drawn in paperspace, and a main viewport for the drawing box. I then tend to use multiple small viewports in the legend, to annotate certain elements on the drawing.

When I come to print to PDF, the linework on the drawing (ie title block, drawing box, etc) stay in the correct location, but the contents of the viewports are shifted out of their boxes by an increasing degree from one end of the page to the other.

I wondered whether it was the thrid party writer, but I have tried several different ones, and all have the same issue. But it also happens with the direct PDF output from Draftsight, so I have come to the conclusion that it is Draftsight that is the problem. This seems to be a fairly fundamental issue, so I wonder whether anybody else has come across it?

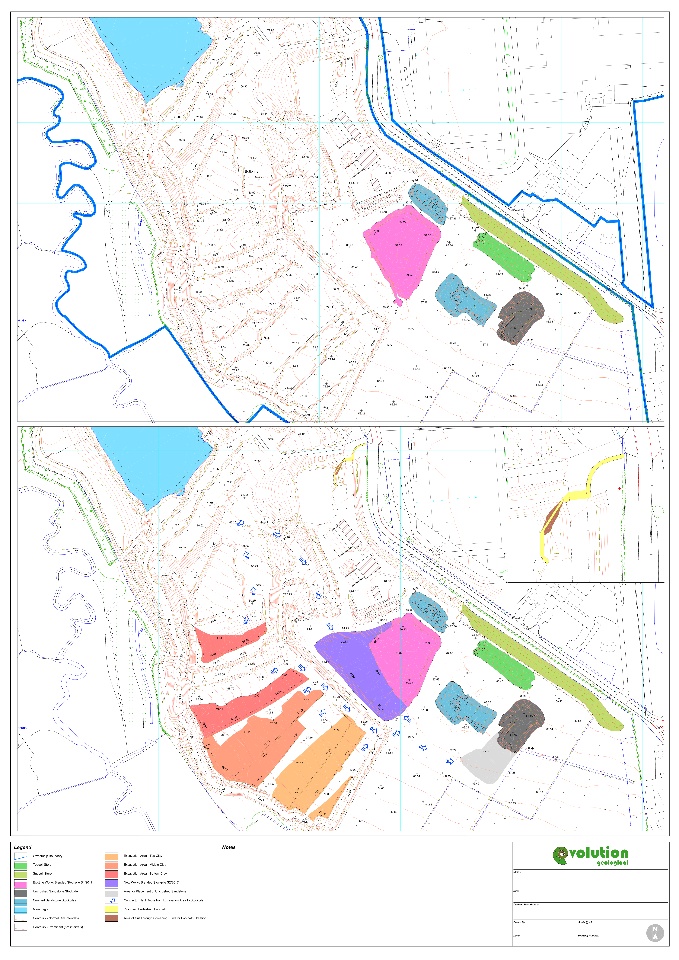

I have attached an example pdf that demonstrates the problem.

Any assistance would be very much appreciated.
