Hello All Users,

I found a macro to add text to a view from the Coe platform. However, I can only add View name and Scale properties to text in the macro. I want to add different properties as a new line is that possible?

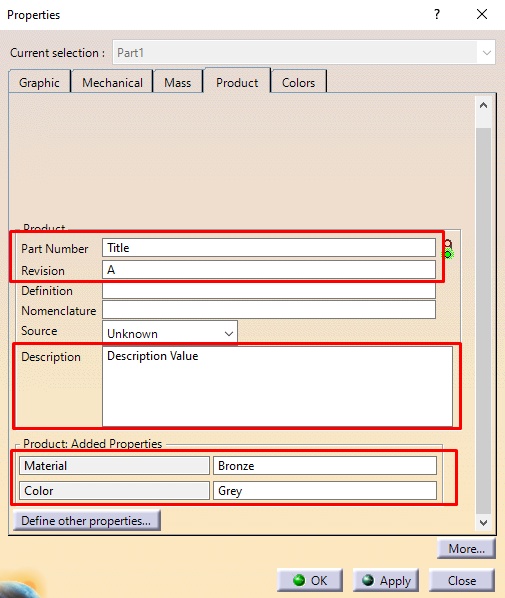

For example, I need to add values in part properties. Information such as Part Number, Revision, Material or user Properties. The picture contains information I want to add.

Can I add a linked attribute using MyDrawingView.Texts.Add?

Dim MyText As DrawingText
Set MyText = MyDrawingView.Texts.Add(vbCrLf + "Scale", TextLocation(0), TextLocation(1))

Here is the total code:

Sub CatMain()

Dim MyDoc As Document
Set MyDoc = CATIA.ActiveDocument

If TypeName(MyDoc) <> "DrawingDocument" Then

MsgBox "This macro works in Drafting Workbench", vbCritical, "Error"


End If

Dim MyDrawingDoc 'As DrawingDocument
Set MyDrawingDoc = MyDoc

Dim MySelection 'As Selection
Set MySelection = MyDrawingDoc.Selection

Dim Status As String
Dim vFilter(0)

vFilter(0) = "DrawingView"

MySelection.Clear
Status = MySelection.SelectElement2(vFilter, "Select Drawing View", True)

If Status = "Cancel" Then

End If

Dim MyDrawingView As DrawingView
Set MyDrawingView = MySelection.Item(1).Value

MyDrawingView.Activate

Dim MyDrawingSheet As DrawingSheet
Set MyDrawingSheet = MyDrawingView.Parent

Dim TextLocation(1)

Status = MyDrawingDoc.Indicate2D("Indicate Text Location", TextLocation)

If Status = "Cancel" Then

End If

Dim MyText As DrawingText
Set MyText = MyDrawingView.Texts.Add(vbCrLf + "Scale", TextLocation(0), TextLocation(1))

Dim ParameterName As String
ParameterName = "Drawing" + MyDrawingSheet.Name + "" + MyDrawingView.Name + "\Name"

Call MyDrawingView.InsertViewScale(1 + Len(MyText.Text), MyText)
Call MyText.InsertVariable(1, 0, MyDrawingDoc.Parameters.GetItem(ParameterName))

End Sub

Thank you.

AKIN KUZEYI

​​​​​​​
