Name: Pairs Plot

Author: Stephane Vellay

Version: 1.0

Created: 04/2011

Purpose: Shows correlations and distribution of properties

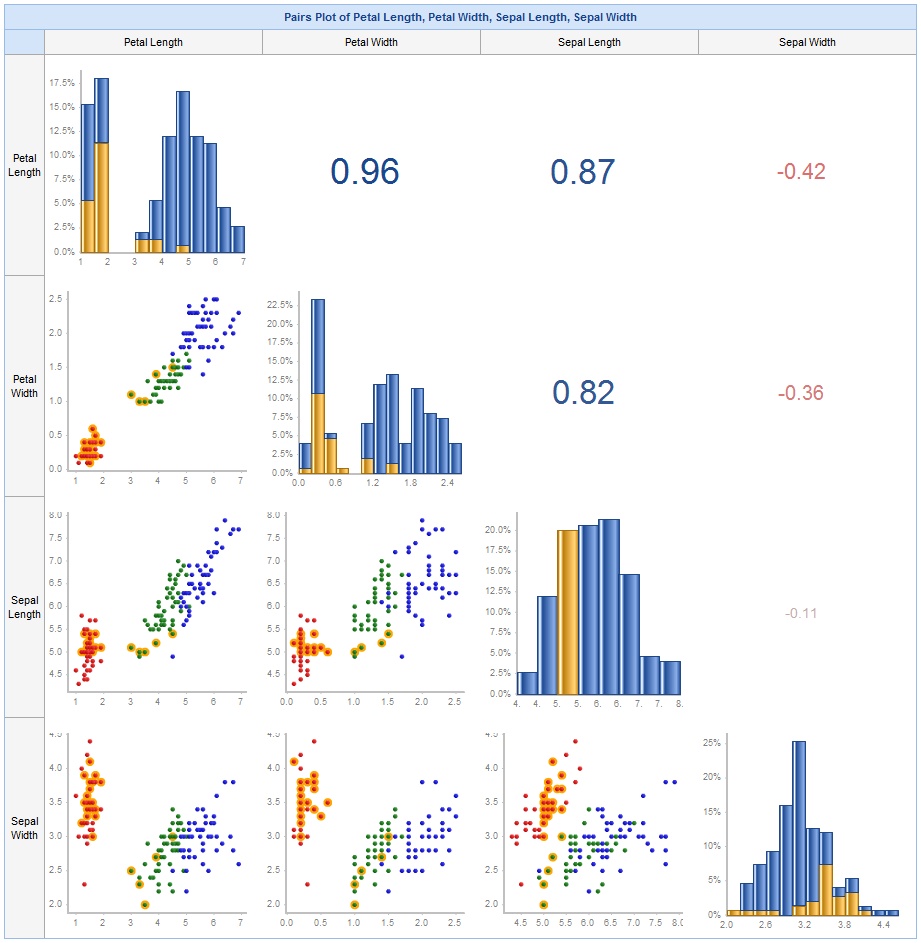

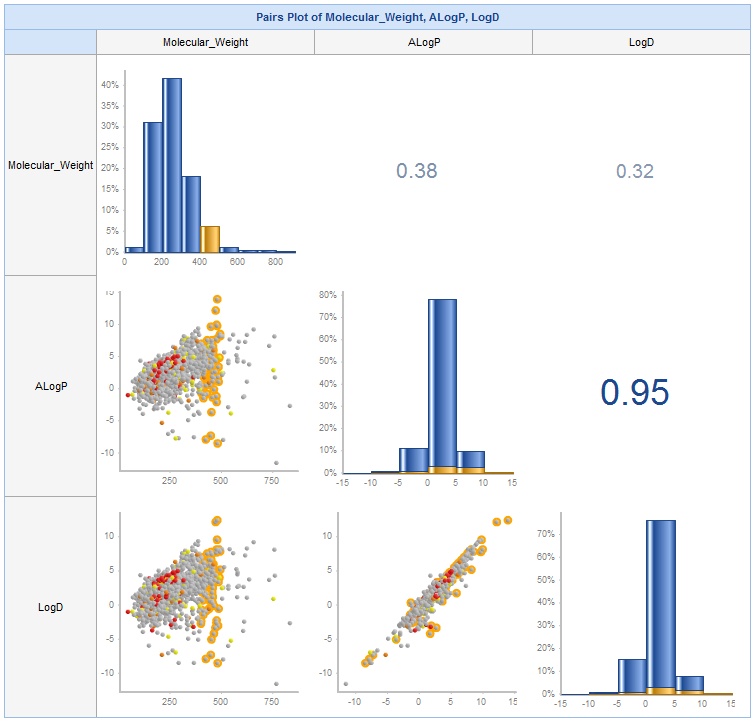

Each property specified by Property Names is plotted against each other property, creating an N by N grid of plots for N properties, based on the Cross Tab component. The following plots and information are presented:

• Relationship XY Charts in the lower-left triangle

• Aggregates numerical data, performs binning, and generates a Histogram showing frequencies of bins, in the diagonal

• Calculates the Correlation between chosen properties, and presents them in the upper-right triangle


Content:

• Pairs Plot component

• Calculate Colour Gradient component from https://community.accelrys.com/message/3311

• MAO Pairs Plot example protocol


• Iris Pairs Plot example protocol


Requirements:

• Pipeline Pilot 8.0

• Reporting


Keyword: scatter plots, correlation, distribution, matrix, cross tab, xy chart, histogram
