Hi All,
another one for you sheet metal guys. This time I would like to know which are your topmost used and most important forming tools/punches. Do you have different variations of these tools (different sizes, which sizes)? Are these tools custom tools, just relevant for your company? Do you have the requirement to place forming tools across bends or do you want to apply forming tools to rolled sheet metal parts?
Please share your knowledge and expertise with me.
I really appreciate your input and thoughts.
Thanks and regards
Frank
Product Definition Team
SolidworksSheet Metal
We create sheetmetal parts using the occasional forming tools below.
D-Hole Cut Out
Knock Out Hole(Conduit)
Key Hole Slot
Boss Dimple
Along with a few that are specific to our company.
No & No to the last 2 question in your post.
Rudy
Good afternoon Frank,
Forming Tools on Rolled Sheets would be very nice and a few more enhancements that would be sweet for me:
1. Being able to take a flat part, which was developed in our plasma program, (which is saved as a dfx or dwg), and bring it into a SolidWorks part and select the face to convert to sheet metal and add a radiused bend to create a complete 360 Deg (or 359)
2. In the Edge Flange Feature be able to select an end point of a Skeleton Sketch in an assembly if/when your building your part in context.
Thank you for your valued time,
John
You should be able to do that by editing the flange profile sketch (Edit Flange Profile) unless I'm missing something.
Mine are embosses, louvers and ribs. Generally the available in design library and few are custom based on requirements.
Yes many times while building up bended or rolled parts with small thickness.
And I would support the enhancement to bend close to 360 (something similar to bending in Flex).
We use lance tabs all the time. Have a few hundred that have been developed over the years.
See the Process Carrier in the SolidWorks Performance Benchmark for the type of lance tabs we use all the time.
Yes being able to use a form tool across bends and rolled sheets would be great.
Cheers,
Anna
Good morning Deepak,
Did you try it, for some reason I couldn't get it to work. In a multiple part assembly, with the first part being a skeleton part, (No Features, Only Sketches), I couldn't select anything from the skeleton part.
I use a skeleton part that has only sketches, planes, axis or points in most of my main assemblies. So if I start with that as the top part in my feature tree, I can't select any point to stop my edge flange.
Let me know if I am doing something wrong,
John
Being able to insert a gussett in a bent up leg/side would be great. We use them all the time on our parts. We also use lance features in a number of our parts.
Bill
Make sure you don't have the option "No external reference" on in the assembly.
Check on the assembly tool bar or Under Tools > Options > System Options > External References
Good afternoon Deepak,

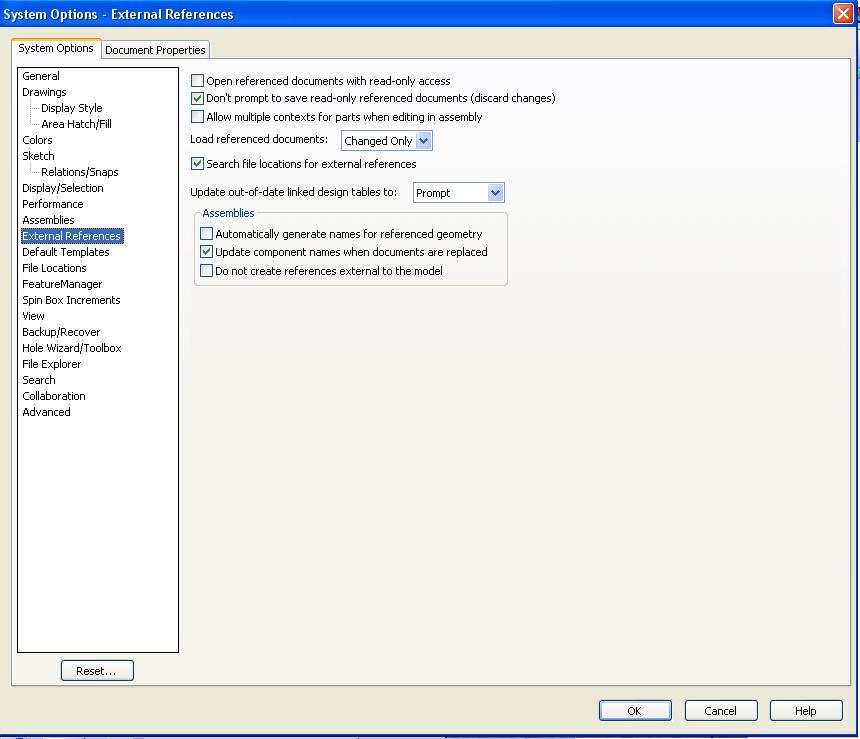

Attached is what I found. According to what I see I don't want it checked is that right.
Do you understand what I am trying to do?? Did you try it??
Thanks,
John
Good afternoon Deepak,
Frank assisted me on my issues, yes you can select the points of a skeleton part.
Process is, for those who don't know;
Create Skeleton Part
Insert into a New Assembly and Save Assembly
Insert New Part and add Base Sheet Metal in new part
Add Edge Flange, select sketch point from Skeleton Part
Ctrl & Select new edge flange sketch and make coincident
Thanks Frank
Later,
John
Frank,
I'm not a sheet metal guy, but a nice to have feature just came up a couple of days ago. Perhaps it already exists. We need a small recess on a sheet metal chassis to locate a round rubber foot. A partial punch, where we push a round punch part way through the thickness, extruding the same shape out the bottom, maintaining the thickness, would do the trick. I can't remember, if I ever knew, what it is called. It doesn't have to be a round punch, it could be any shape.
Jerry Steiger
Hi Jerry,
not sure if I have got the point. Do you imagine something like this?
Thanks
Frank
Product Definition Team
Frank,
No, in the type of form I'm talking about, the hole in the die is the same size as the punch, so the material on the both sides has a vertical wall where the material shears. We would typically punch the material a quarter to half the material thickness. If you punch it further, to something like 90% of the thickness, you end up with a knockout section, like you get in junction boxes for home wiring. I would attach pictures and a sample part file, but I can't seem to make it work today. Probably my computer's way of telling me to stop playing in the forums and get to work.
Jerry Steiger
Thanks to all of you who have responded. It really helps me to understand your requirements and workflows.
Kind Regards
Frank
Product Definition Team
