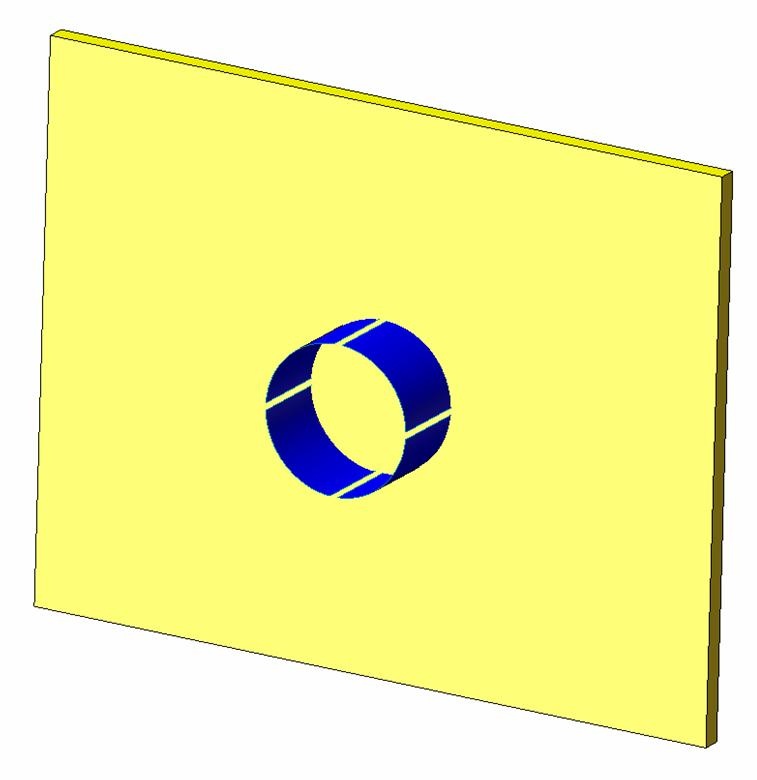

For sheetmetal parts sometimes we need to make micro-jointsin holes to hold the scrap of the hole on the part duringlasercutting and bending. These scrap is removed during theassemble of the part

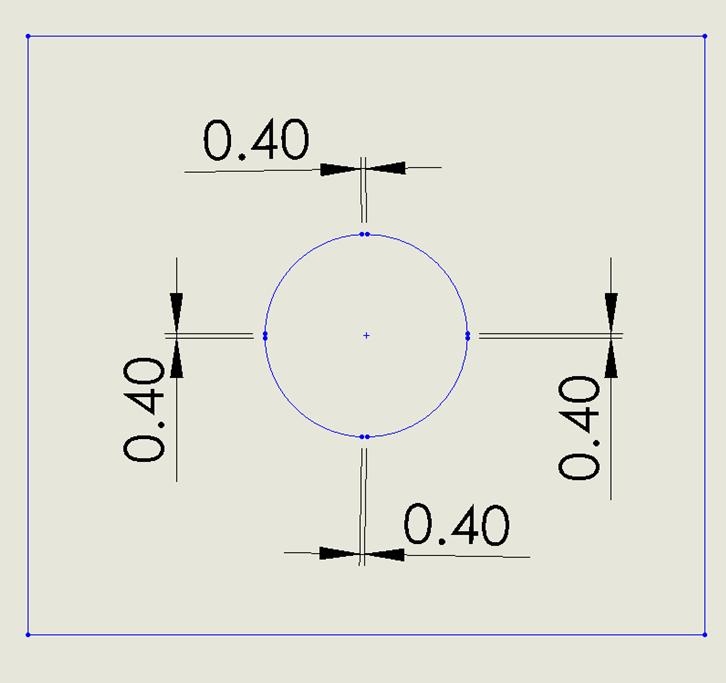

These micro-joints are for example 4 pieces of 0.4 mm width for 1round hole.
(see picture).
We used to make these micro-joints manually in DWG-editor,
but I wonder if there is a way to do this in SW 3d?
What I need is 4 segment lines (not double lines) for 1 round hole.

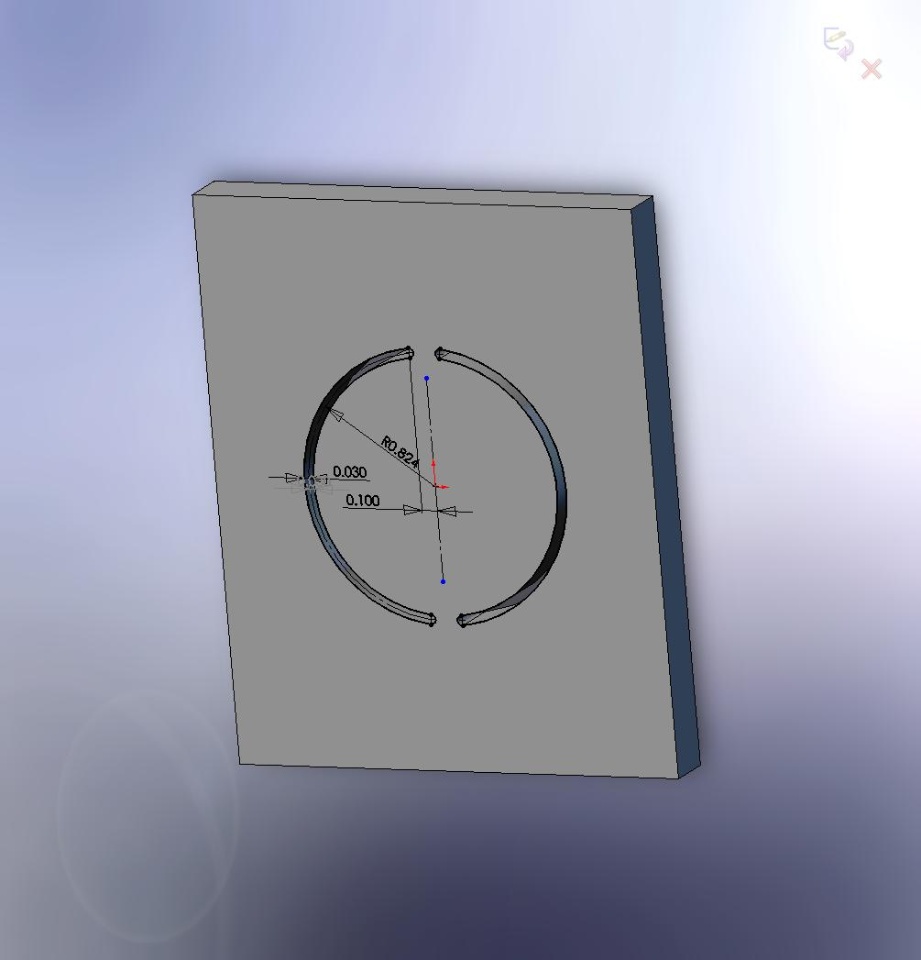

I've tried to do this with surfacing, but I can not cut thesurfaces from the Solid, because the surface is inside thesolid.(see pictures)
Who can give me some advice to do this in 3D?
Thanks for every hint.
Peka.
SolidworksSheet Metal
