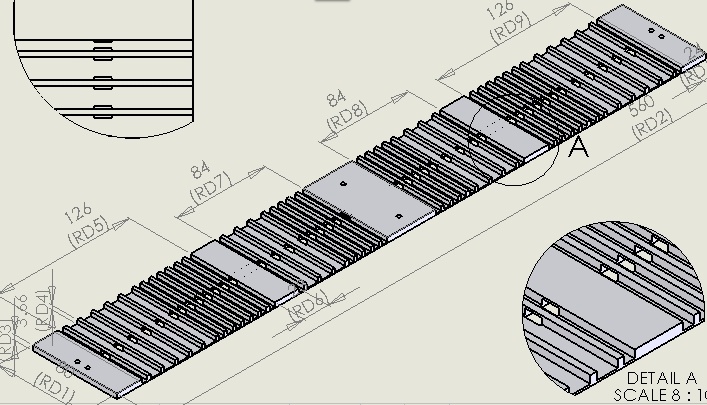

I have a simple part of thin plastic with groves cut inthem. I was hoping to be able to model it to help determinegrovewidth to achieve proper bending. The plastic sincethinenough, will bend until the groves hit on another. Ihaveattached a picture of the current simple drawing.
How would I be able to bend until interference occursbetweenportions. Any suggestions are appreciated.
Thanks
JoshSolidworksGeneral







How would I be able to bend until interference occursbetweenportions. Any suggestions are appreciated.
Thanks
JoshSolidworksGeneral

Can you model break this piece up into individual parts, and makean assembly out of it that once mated properly, will 'bend' how itshould as one part? Then you could move the parts until theyhit.
If you want to record an AVI animation using Animator, you wouldhave to do something tricky like putting the part in an assemblyand make a Flex feature where the trim planes are linked toin-context features, and move the in-context features. The reasonfor this is that Animator can only animate changes in mate values(distance or angle), and manually positioned parts. There isnothing that enables you to directly animate dimensions within apart.
So if you can mate a part plane to an assembly plane with an angle,drive the flex with trim planes with the mated planes, you couldconceivably animate your part flexing.
As for making it stop when it runs into itself, I imagine that thefeature would fail when it runs into itself.
Anyway, best of luck.
