Abstract

This work presents a comprehensive power path optimization model for electrical axles and drive systems, enabling multi-level simulation and analysis. At its core, the model optimizes the commutation cell by refining power module design, improving parallelization of bare dies, and enhancing three-phase inverter configurations. A key focus is Hie reduction of commutation loop stray inductance through the optimized design of busbars. DC-link capacitors, and power modules, all within a detailed 3D model.
High-fidelity 3D simulation results serve as input for double-pulse test simulations, facilitating an in-depth analysis of semiconductor overvoltages, gate-source (GS) effects, switching-induced ringing, and current symmetry across parallelized dies. As a parallel path, a dedicated 3D EMI filter model evaluates insertion loss, core dimensioning, and capacitor placement and selection, ensuring optimal placement of dimensions of the passive filter components.

Further integration includes a motor model and ground path representation derived from measurements and prior 3D simulations. The complete high-level model encompasses the frill drive system, incorporating the commutation cell. EMI filter, power semiconductors in SPICE models, and motor impedance. Through PWM-based operation simulations, the model provides insights into common-mode current flow, enabling precise assessment of power losses in EMC components and potential saturation effects in filter cores. Moreover, the common-mode current data supports further analysis of bearing currents in the axle when a suitable bearing model is included. Additionally, interactions between multiple power paths, such as the superposition of common-mode and load currents, can be evaluated.

This holistic simulation approach facilitates informed design decisions for enhanced efficiency, reliability, and EMC performance in modern electrified drivetrains.

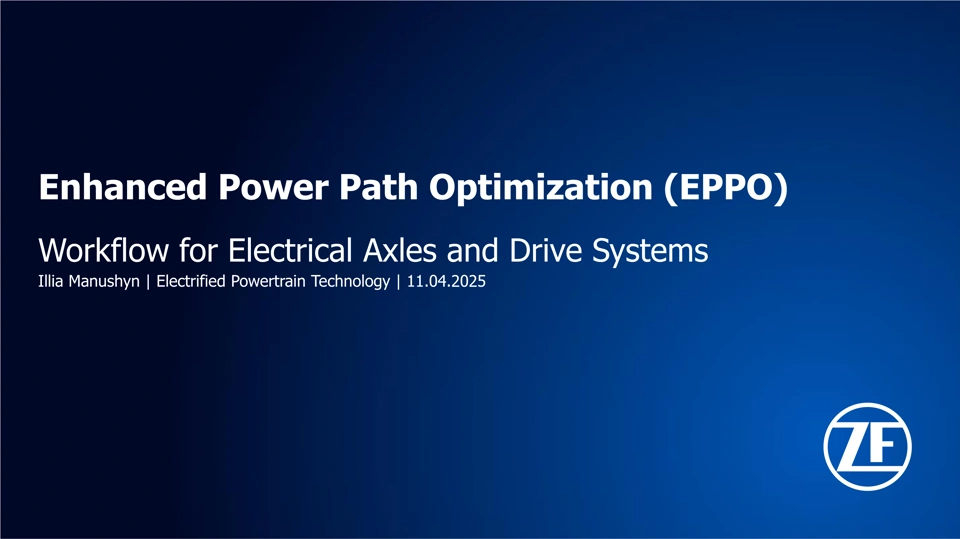

Slide deck
