A SIMULIA e-Learning Resource
Created using Abaqus 6.12

The Abaqus Technology Brief titled "Coupled Electromagnetic and Fluid-Structure Interaction Analysis of a Solenoid Valve" describes a methodology for building a coupled electromagnetic and fluid-structure interaction analysis of a solenoid valve.  In this example, integration between the applicable analysis techniques allows for the simulation of the complex multiphysics interactions.

The following video is a complement to the published Technology Brief.  This video includes:

• Introduction (0:00-2:00)
• Solution Methodology Overview (2:00-3:19)
• Abaqus/CAE Demonstration: Applying Electromagnetic force via User Subroutine UAMP (3:19-4:22)

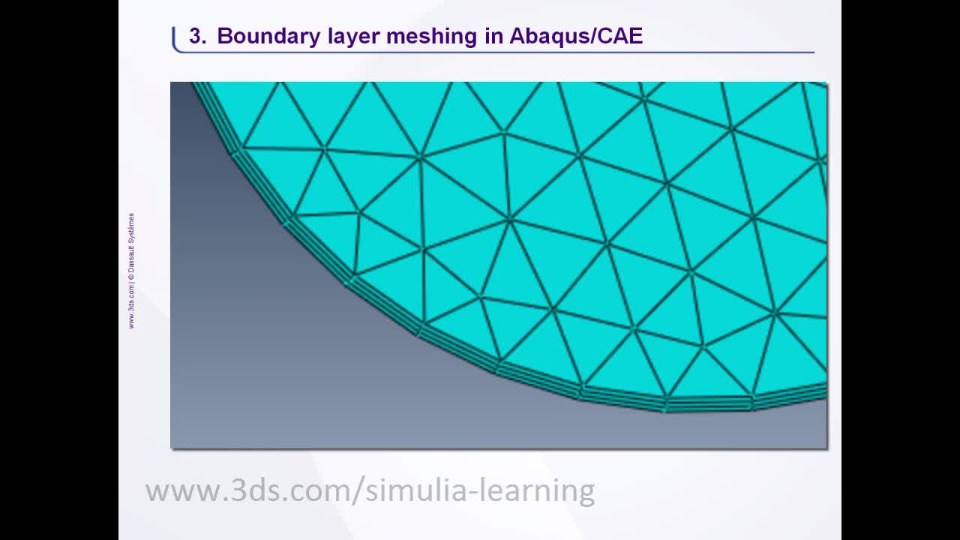

• Abaqus/CAE Demonstration: Boundary layer meshing (4:22-7:35)
• Results (7:35-8:30)

This video was recorded using Abaqus 6.12

For more information regarding this application, see the complete Abaqus Technology Brief:  Coupled Electromagnetic and Fluid-Structure Interaction Analysis of a Solenoid Valve

You may also be interested in e-Learning: Streamlines for fluid flow visualization
