Problem Description: The thin “L‐shaped” part shown above is exposed to a temperature of 20°C on the two surfaces of the inner corner, and 120°C on the two surfaces of the outer corner. A heat flux of 10 W/m2 is applied to the top surface. Treat the remaining surfaces as insulated.

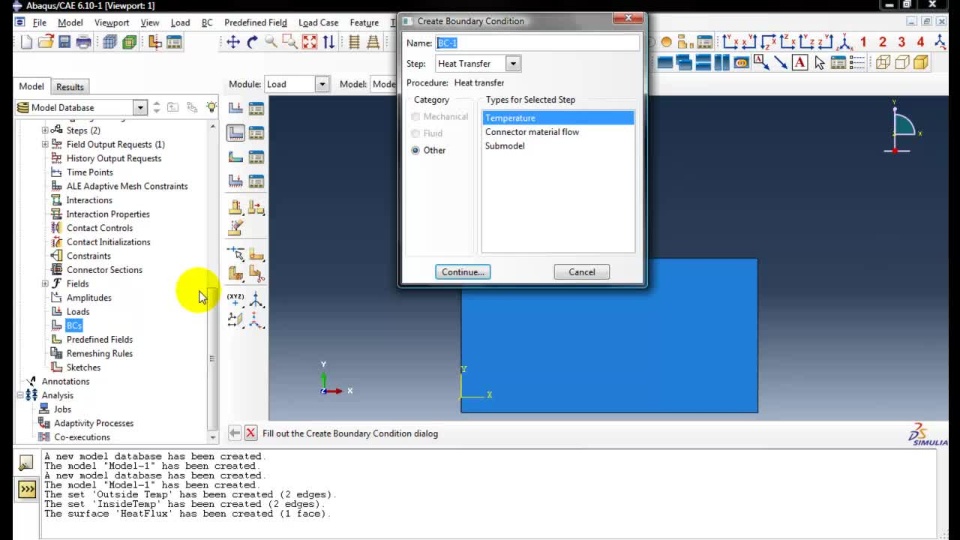

This example shown in video, leads you through the Abaqus/CAE modeling process by using the Model Tree and showing you the basic steps used to create and analyze a simple model.
