There is a new material model calibration app that was recently delivered as part of the 3DEXPERIENCE Platform, 2018x HotFix4.  A key challenge in using the advanced material models in Abaqus is knowing what testing to perform on a material specimen and how to calibrate a material model to obtain a good set of model parameters (coefficients).  Calibration is an enabling technology that allows our customers to use better, more advanced, material models to describe their materials.  Calibration tools help Abaqus users build higher fidelity models, with more physical realism.

To address this issue a new role has been created, Material Calibration Specialist that consists of the calibration app and the material definition app (material editor).  You will find attached to this post a short set of PowerPoint slides that describe the calibration app, and a series of narrated videos showing the use of the app for a few different material models.  The goal of this initial release is to provide a very fast and highly visual tool with coverage that meets or exceeds what is available today in Abaqus/CAE.  In this initial release of the calibration app, there is no use of the Abaqus solver.  There is instead a mathematical kernel that takes the test data and finds the material model response to a deformation and carries out optimization to determine the best fit set of model parameters.  Future releases will continue to add coverage for most, or all, of Abaqus material models. As the PowerPoint slides describe, calibration can go well beyond material constitutive behavior to damage & failure and even modeling abstractions such as connector element constructs for fasteners and bushings. We also know there is a need for calibrating behaviors with multi-element meshes/models for cases of non-homogeneous physics (localization, damage, etc.).

One very significant piece of technology that we have delivered in this first release is that the hyperelastic + Prony series calibration is performed as an integrated and simultaneous calibration (with hereditary integrals).  This means, as a for instance, that test data from a family of rates curves can now be calibrated. This was never possible before with Abaqus/CAE tools.

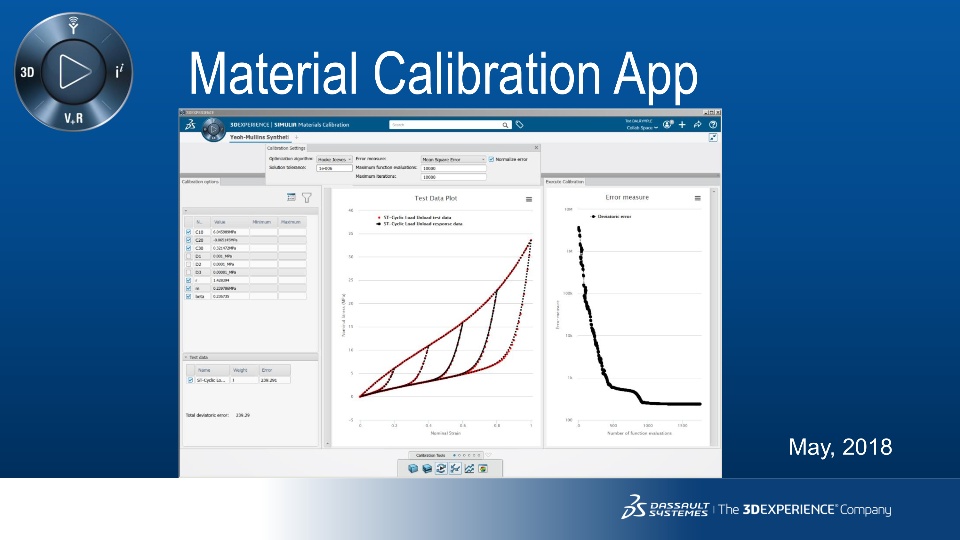

Material Model Calibration Update Slides (as of 06-06-2018) :

Narrated Videos:

Material Model Calibration Demo #1, Classic Treloar data, simple hyperelasticity (12 minutes).  This video was created using the R2018x version of 3DX.  A similar video, created using the R2021x version can be found here https://r1132100503382-eu1-3dswym.3dexperience.3ds.com/#community:39/post:3759

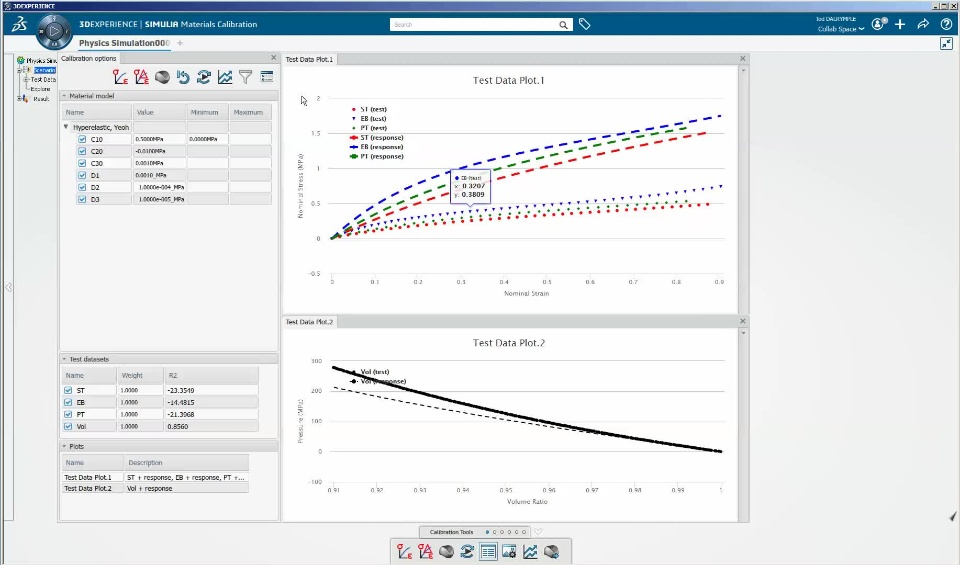

Material Model Calibration Demo #2, add volumetric data, still simple hyperelasticity (13 minutes) :

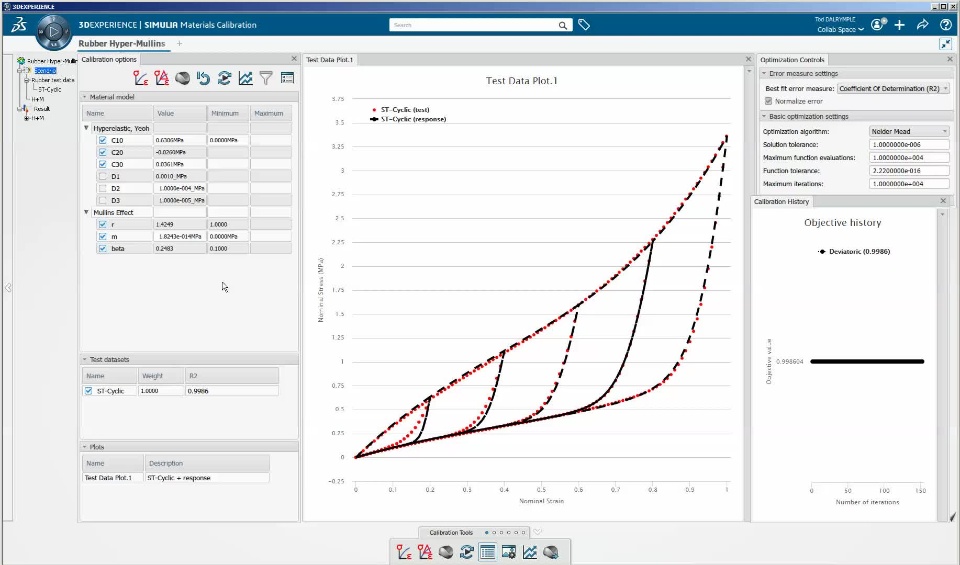

Material Model Calibration Demo #3a, hyperelastic + Mullins material model (13 minutes) :

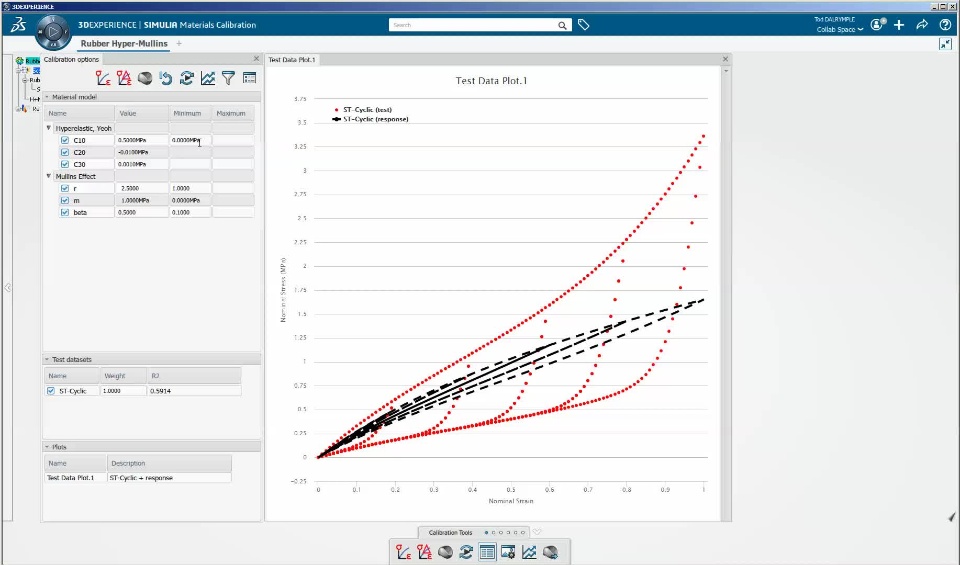

Material Model Calibration Demo #3b, 3a revisited (5 minutes) :

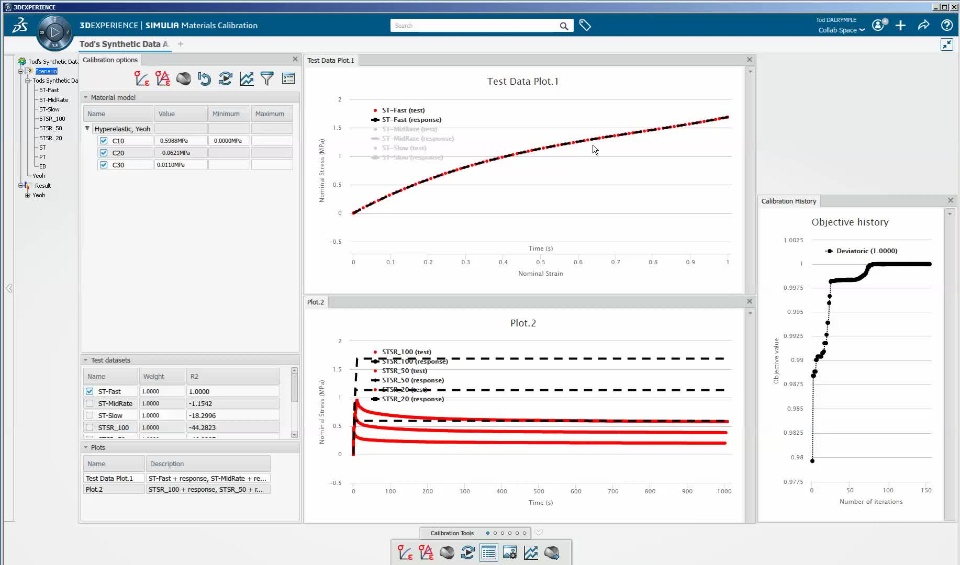

Calibration Demo #4, more types of test data, hyperelastic + Prony series viscoelasticity (14 minutes) :

Material Model Calibration Deep Dive and Future Developments.  These slides were developed by Dan Cojocaru and will be presented in the Material Symposium on day #1 of the Science in the Age of Experience conference:

Update on the Calibration App for 2019x, FP1923, June of 2019.
