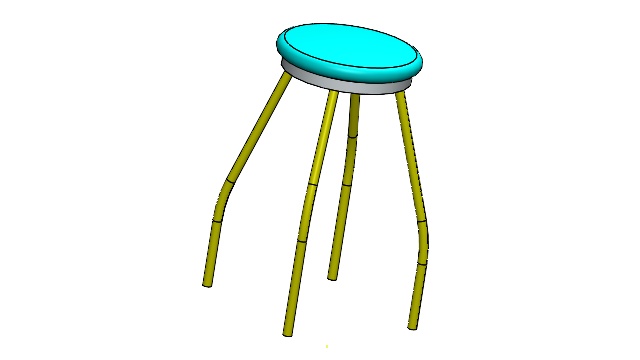

A new simulation example entitled “Buckling Analysis of a Stool” is available with the R2022x FD04 release of the User Assistance. This example teaches you how to save a SOLIDWORKS part (shown in the image) to the 3DEXPERIENCE platform and create a buckling simulation using the Linear Structural Validation app.

Buckling is a failure mode that occurs when an applied compressive load reaches a critical value, causing large displacements and a loss of stability for a model. A model that buckles can no longer support the service loads for which it was designed. Structures with slender parts are at risk of buckling under compressive loading. A buckling simulation predicts the buckling failure modes and the associated critical load factors for a model. You can use the results of a buckling analysis to design products that are safe from buckling.

You begin the example by saving the stool geometry to the 3DEXPERIENCE platform directly from SOLIDWORKS Connected. Next, you create a buckling simulation in Linear Structural Validation to predict the buckling failure modes and the associated critical load factors under a compressive load. Finally, you create a bookmark for the simulation results to share with your team.

To learn more and to complete the example for yourself, see Buckling Analysis of a Stool.
