Abaqus/Standard to Abaqus/Explicit co-simulation allows you to capitalize on algorithmic strengths of two analysis program.

Abaqus/Standard strengths include:
   - Unconditionally stable
   - Allows for larger time increments than Abaqus/Explicit
   - Substructuring
   - Cost-effective for small-strain analyses

Abaqus/Explicit strengths include:
- Excels at simulating high-speed events
- Extremely robust contact algorithm

Co-simulation provides a cost-effective solution when different model regions can benefit from the respective strengths of the two analysis program.

Narrated Video

This video was created using Abaqus 6.9, however the concepts demonstrated still apply in Abaqus/CAE today.

The following video includes:

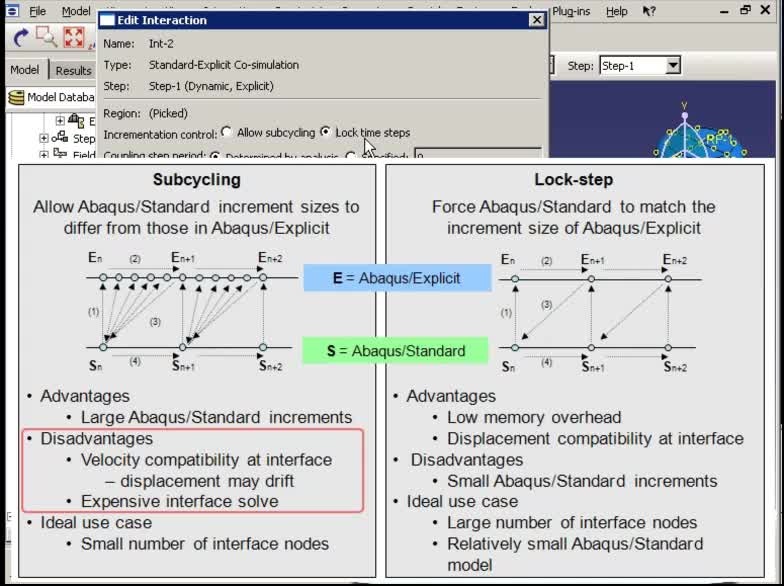

   - An introduction to Abaqus/Standard to Abaqus/Explicit co-simulation (0-1:13)
   - A demonstration of Abaqus/Standard to Abaqus/Explicit co-simulation using a beam model (1:13-12:51)
         -- 2:50-3:19 Link and Exclude part instances
         -- 3:19-4:32 Abaqus/Standard model
         -- 4:32-4:51   Abaqus/Explicit model
         -- 4:51-8:34   Co-simulation interactions
         -- 8:34-9:42    Co-execution
         -- 9:42-12:39  Visualization

This video was produced using Abaqus 6.9 and can also be found in the Introduction to Abaqus 6.9 web-based training site.

Now You Try It!

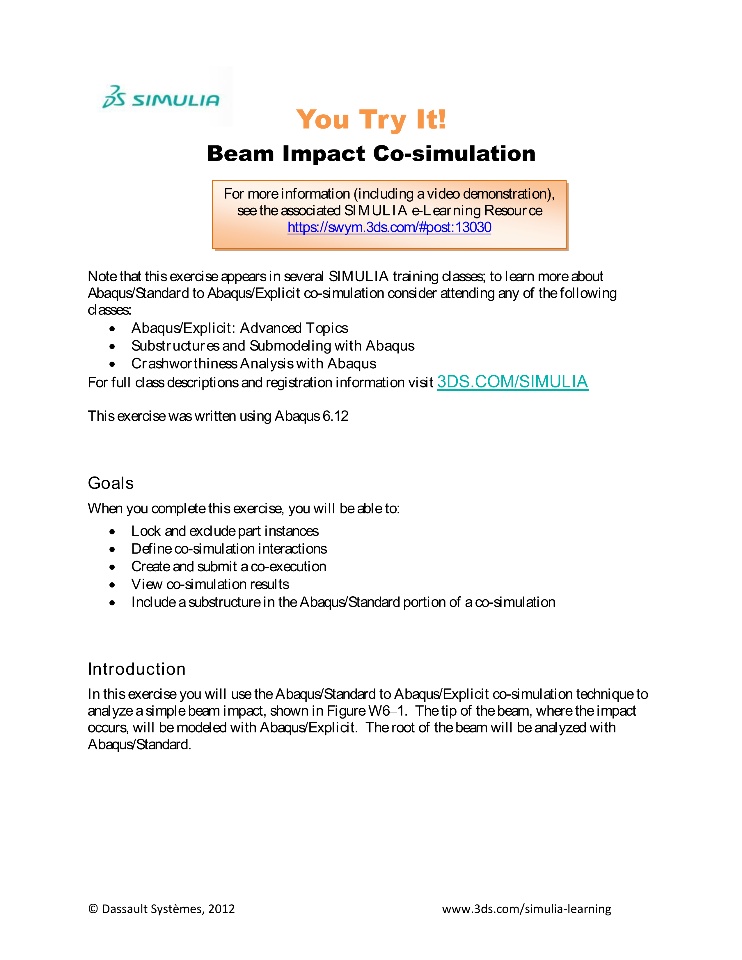

Download the attached file, CosimulationStdToExp-beam-StepByStep-Abaqus612.pdf and follow the step-by-step instructions to perform two Abaqus/Standard to Abaqus/Explicit co-simulations:
    1: Co-simulation analysis without substructuring, which is demonstrated in the video above.
    2: Co-simulation analysis with a substructure, in which you will use a substructure for the Abaqus/Standard portion of the simulation.

This exercise has been updated for Abaqus 6.12

Learn More

SIMULIA training classes

Note that this exercise appears in several SIMULIA training classes; to learn more about Abaqus/Standard to Abaqus/Explicit co-simulation consider attending any of the following classes:

Attached PDF:

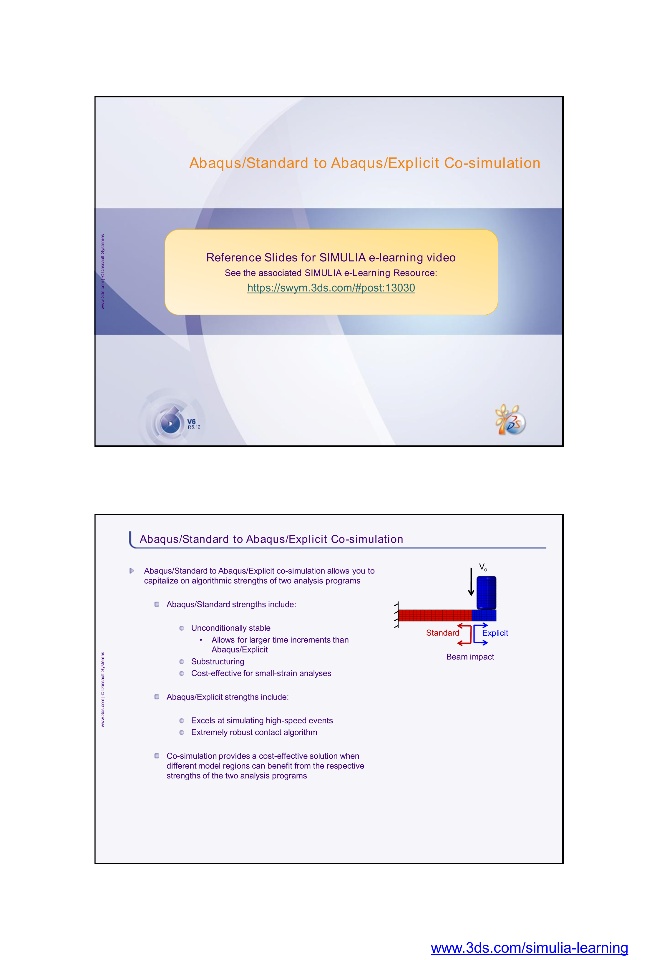

---- Reference slides: CosimulationStdToExp-SlidesWithWorkflow-Abaqus612

Abaqus Manual references:
---- "Dynamic impact of a scooter with a bump," Section 2.4.1 of the Abaqus 6.12 Example Problems Manual
---- “Abaqus/Standard to Abaqus/Explicit co-simulation,” Section 17.3.1 of the Abaqus 6.12 Analysis User's Manual
---- “Defining a Standard-Explicit co-simulation interaction,” Section 15.13.14 of the Abaqus/CAE 6.12 User's Manual
---- Chapter 26, “Co-simulation,” of the Abaqus/CAE 6.12 User's Manual

Knowledge Base Articles:
--- QA00000020151: Abaqus Technology Brief: Full Vehicle Durability Using Abaqus/Standard to Abaqus/Explicit Co-Simulation
--- QA00000008379: How to use overlay plots to animate co-simulations in Abaqus/Viewer

-- More SIMULIA e-Learning Resources --
