We were honored to have Stefan Castravete from Caelynx Europe present at the SIMULIA Americas Users Conference, May 1-2, 2024 in Novi, Michigan.

Abstract

The study was performed by Caelynx Europe and National Institute of R&D in Microtechnologies (IMT).

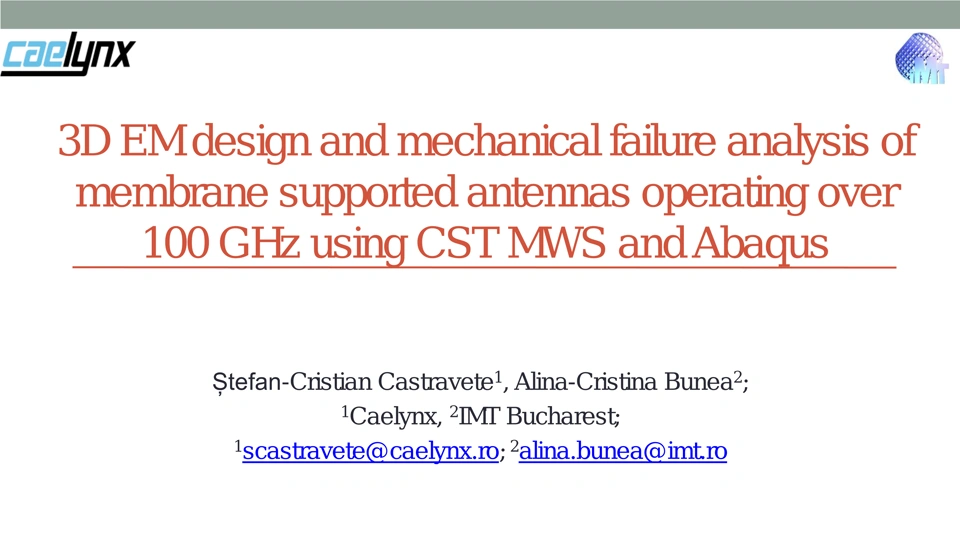

5G devices operating up to the millimeter wave band (> 30 GHz) are already widely deployed, offering up to 20 Gbps transfer rated. The smaller wavelengths have already led to higher integration features and on-chip antenna deployment. The next generation of communication devices (6G) will go even further and with operating frequencies up to the THz being taken into consideration. As always, one bottleneck is the wavelength and substrate dependent antenna. One approach to direct integration of high-performance antennas in mainstream CMOS/BiCMOS technologies is the use of thin dielectric membranes processed through back end of line (BEOL) deep etching of the lossy silicon substrate. With this motivation, we designed a fully parametric model of a Folded Slot Antenna Array (FSAA) using CST Microwave Studio. The layout was optimized for operation above 100 GHz. The antenna is supported by a 2.1 µm thick SiO2/Si3N4 dielectric membrane released through deep reactive ion etching (DRIE) of low-resistivity (ρ = 10 Ω·cm) silicon. Input matching and radiation performance as a function of frequency are the main tradeoff parameters. Over 20 % fractional bandwidth and peak gain of 5 dBi are obtained by 3D full-wave simulations using the Time Domain Solver (Finite Difference Time Domain method). The results are validated using on-wafer measurements of a fabricated test device. Since the membrane-supported antenna has a symmetrical, bi-directional radiation characteristic, one application scenario will place the antenna over a metalized reflector, which will lead to the recovery of the backside radiation. The result will be a single lobe broadside radiation characteristic with a peak gain around 7-8 dBi. In the case of vacuum applications, it’s important to assess the effects of the pressure on the membrane.

The 3D model exported by CST MWS is thus imported in Abaqus, where pressure/force/deformation analysis are performed. The breaking point and deformation of the membrane are assessed and a worst-case scenario of the deformation (right before failure) is exported as a 3D model back to CST MWS. A new 3D EM simulation is performed and the input matching and radiation characteristic changes are presented.
