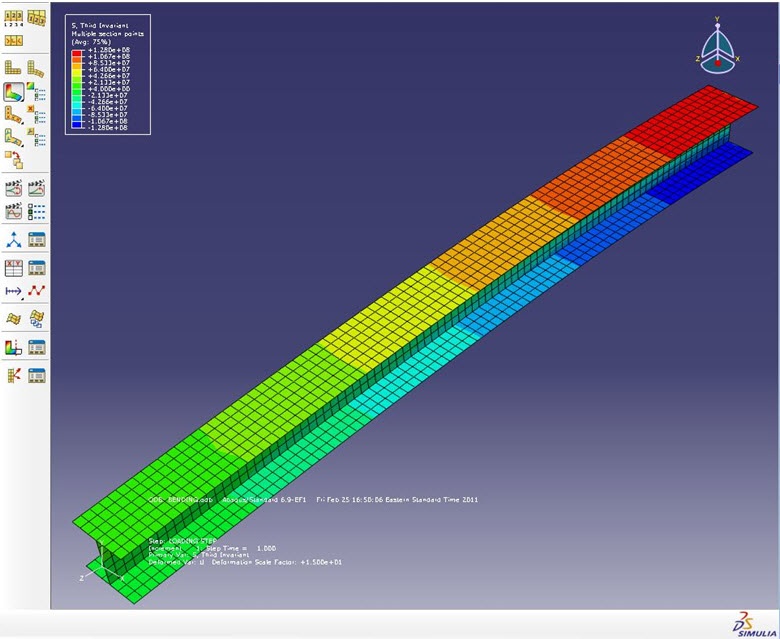

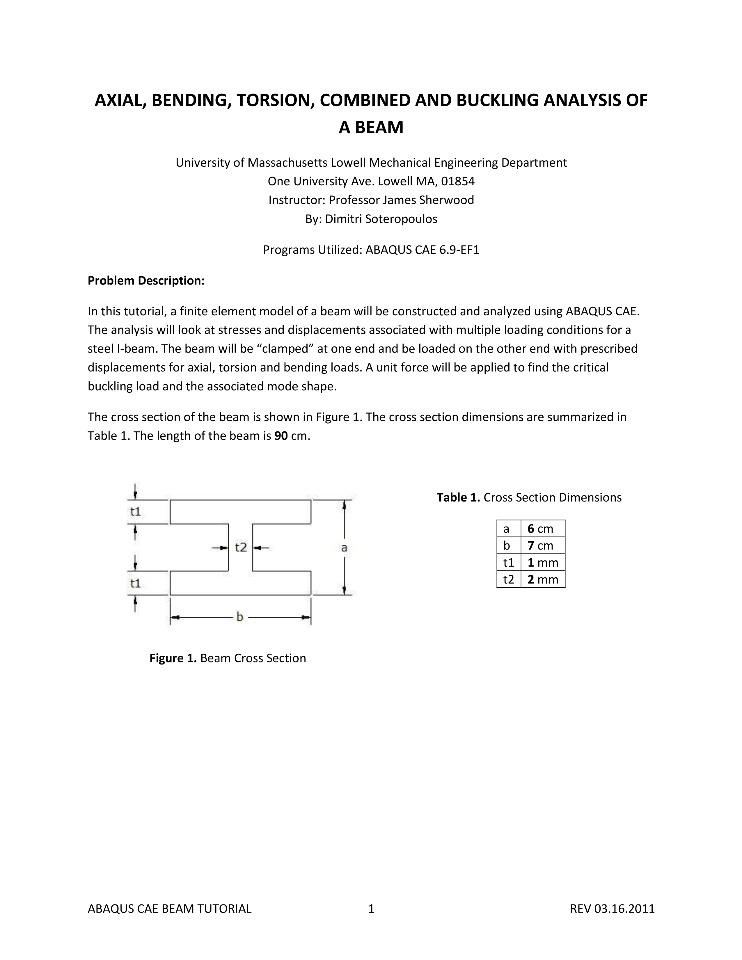

In this tutorial, a finite element model of a beam will be constructed and analyzed using Abaqus/CAE.The analysis will look at stresses and displacements associated with multiple loading conditions for asteel I-beam. The beam will be “clamped” at one end and be loaded on the other end with prescribed displacements for axial, torsion and bending loads. A unit force will be applied to find the critical buckling load and the associated mode shape.

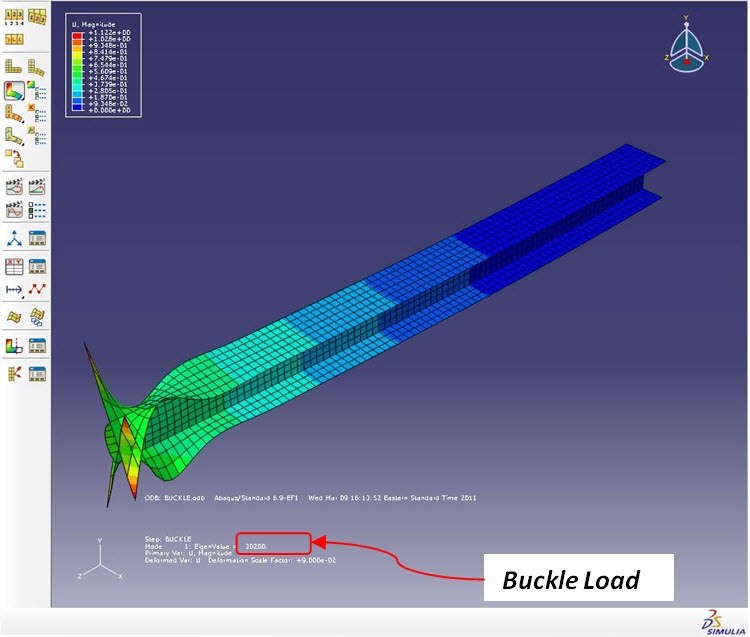

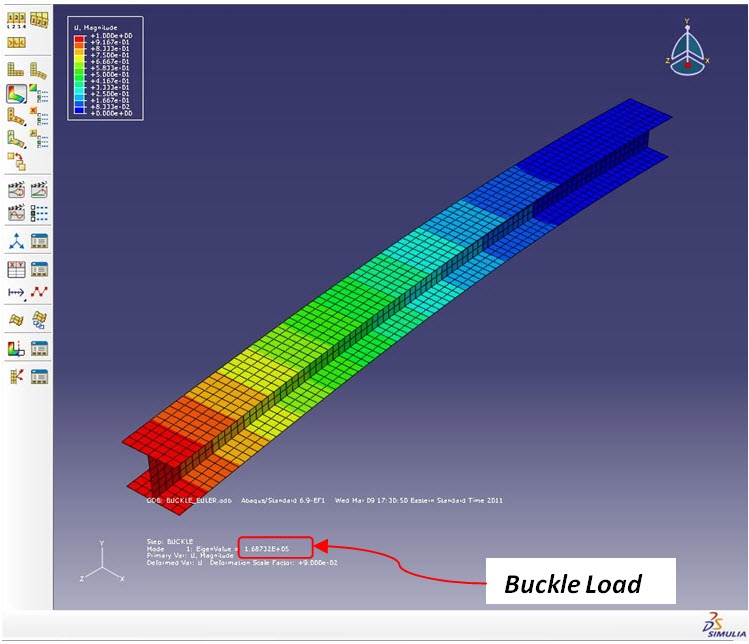

                            Global Bucking                                                           Localized Buclking

University of Massachusetts Lowell

Mechanical Engineering Department

Instructor: Professor James Sherwood

Written By: Dimitri Soteropoulos

Programs Utilized: Abaqus/CAE 6.9-EF1
