Surpac Tip - Using the New Graphical Drillhole Constraints

In GEOVIA Surpac 2023 Refresh 2, there is a new graphical drillhole constraint form available. You can now graphically constrain drillholes with a polygon, solid, dtm or a wild card (*).


This will allow geologists, geotechnical engineers and mining engineers to just display the  drillholes in the area of interest. Eg. Drillholes that are above a pit, drilled through the underground workings etc.


Here are some tips on how to use the new constraint form

3DM constraints

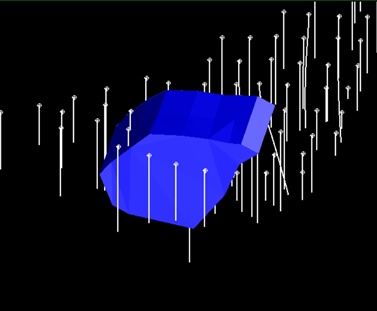

  • If you are wanting to see the drillholes that are within a solid
  • Database>display>add new constraint

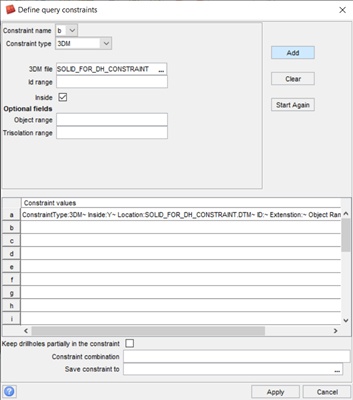

  •  Select the 3dm option in the constraint type, select the solid and apply.

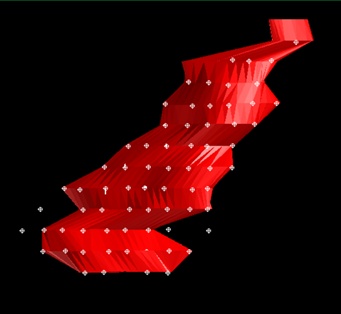

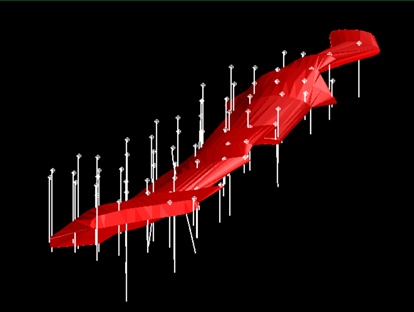

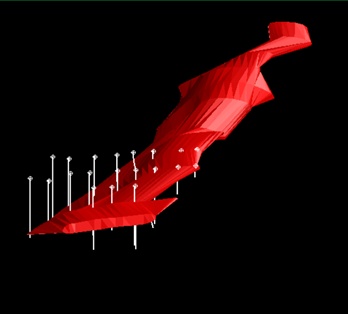

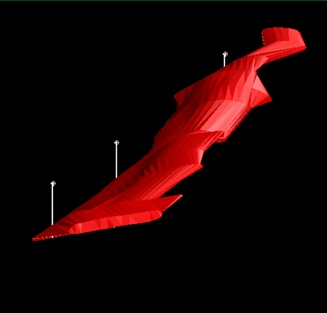

  • Hide the faces of the solid and display the edges so you can see the drillholes within the solid.

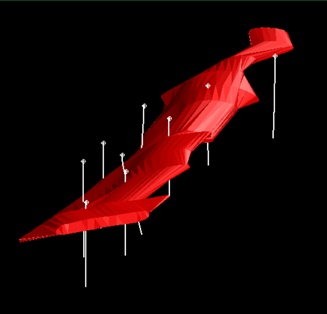

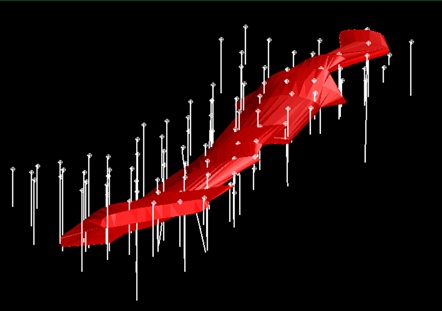

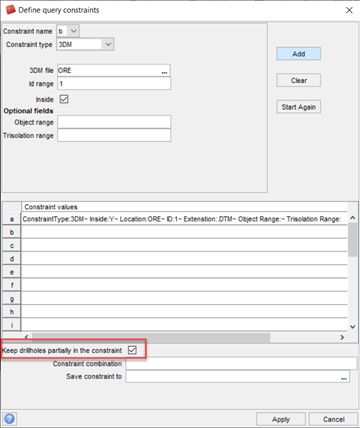

  • If you want to see all the holes that intersect a solid, then you would use the option “drillholes partially in the constraint.”

Table constraints

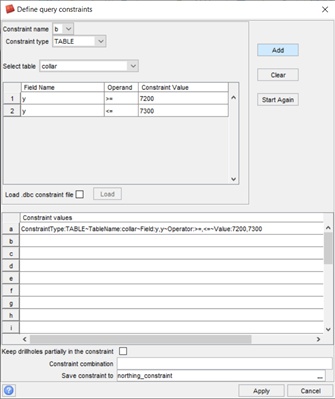

  • You can create a table constraint based on northing

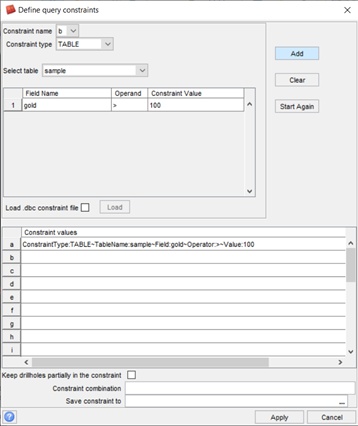

  • If doing a constraint on an interval table, then select the table and the field. Eg you may want to see the holes with Gold>100


  • You can now also use a wild card ‘*’ to filter out the holes you want to display.

  • Constraint files
    • You can use existing .dbc files but REMEMBER these were only applied to a table.
    • You can use the new xdbc format.
  • Combinations

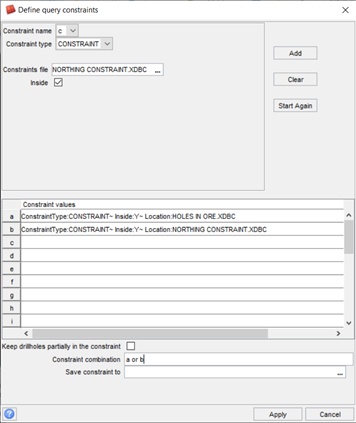

    • You can use the combination ‘or’



  • You can use the combination ‘and’. NOTE: the constraints are 'and' by default.



String Constraint

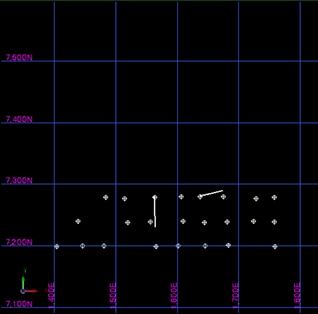

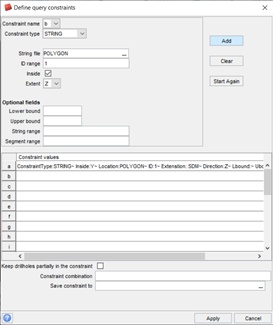

  • You can now constrain the drillholes graphically by using a closed polygon


 ​​​​​​​
