Working with Volume Query on the 3DEXPERIENCE platform

RH 2026-07-20

Imagine a powertrain engineer needs to route a new cooling line through an engine bay that's already packed with components. Before committing to a path, she has to answer a deceptively simple question: what's actually in the way? Somewhere inside that assembly of 4,000 parts sit brackets, harnesses, sensors and structural members that her new line can't touch. She rotates the model, hides layers, measures clearances by eye and clicks through the assembly tree part by part. An hour later, she has a rough idea—but no certainty. If she misses one bracket, the clash won't surface until a physical prototype fails, weeks and thousands of dollars later.

This is the core challenge of spatial reasoning in dense assemblies. Engineers think in three-dimensional space, but traditional tools force them to query in lists, names and manual inspection. When you can't ask "what occupies this region?" directly, you're left guessing and guesses in complex assemblies turn into rework. So, what is the solution?

The Volume Query tool on the 3DEXPERIENCE platform gives engineers a way to interrogate the geometry itself, asking spatial questions and getting exact answers.

The Value of the 3DEXPERIENCE platform

Volume Query lets you define a three-dimensional region within an assembly and instantly identify every component that falls inside it, intersects it or sits near its boundary. Instead of manually hunting through the model, you describe the space you care about and the platform tells you what's in there. For engineers working in manufacturing, automotive and electronics, this shifts spatial analysis from a slow, error-prone task into a precise and repeatable operation.

Defining a 3D Query Volume

The starting point is the Shape type: a box, cylinder, sphere or custom envelope that represents the space you want to investigate.

You might define it around a proposed routing path, a service access zone or the swept volume of a moving mechanism. Once you set the boundary, the platform evaluates the entire assembly against it. This works even when parts carry inconsistent names or come from different teams, because the query reads geometry, not metadata.

Note that there is also the ability to use Spaces that are predefined within the 3DEXPERIENCE platform. These are CAD-specific and will not be discussed here.

Identifying Components Within a Spatial Region

With the volume defined, Volume Query returns a precise list of every part that occupies or touches the region.

Using an Intersection mode, you can filter by whether a component sits fully inside the envelope, partially intersects it or falls within a specified distance. That distinction matters in practice as follows:

Fully contained parts tell you what already lives in the space you want to use.
Intersecting parts flag immediate conflicts that need resolution.
Intersecting and nearby parts flag immediate conflicts that need resolution and reveal clearance risks before they become collisions.
Nearby parts reveal specific clearance risks before they become collisions.

Integration Across the platform

The real strength of Volume Query comes from its place within a connected environment. Because it operates on the same data model that both CATIA and ENOVIA use for design and lifecycle management, spatial queries tie directly to your use-cases.

What	How	Why
Early concept and packaging studies	Select all components inside a proposed enclosure volume Check whether boards, wiring, ducts, or mechanisms fit within a target space Identify parts that intrude into reserved packaging zones	Catches spatial conflicts early before detailed design work piles up.
Cross-functional mechanical/electrical coordination	Select all geometry within a control cabinet, junction box region, or routing corridor Isolate connectors, cables, brackets, and mounting features affected by an enclosure change Review which components sit inside a moved or resized subsystem volume	Makes design-change impact analysis much faster across ECAD and MCAD teams.
Change management and engineering updates	When a component moves, query the surrounding volume to find potentially affected parts Select everything intersecting the swept volume of a revised mechanism Identify nearby clips, fasteners, harnesses, cooling lines, or support structures that may need updates	Reduces the risk of missing downstream changes.
Design review and interference detection	Select all parts inside a high-risk area around moving assemblies Isolate collision candidates within a motion envelope Review tight-clearance regions without manually hunting through the full assembly	Speeds up review cycles and improves design confidence.
Simulation and analysis setup	Select faces, solids, mesh cells, or nodes within a thermal, vibration, or stress-critical zone Apply loads, materials, constraints, or contact conditions to a spatially defined region Extract results only from the volume of interest	Makes CAE setup cleaner and more repeatable.
Manufacturing and assembly planning	Select all geometry inside a fixture envelope, robot reach volume, or tool access zone Identify parts that are difficult to assemble because they fall within constrained workspace volumes Validate whether tools can access fasteners and service points	Prevents late-stage manufacturability surprises.
Serviceability and maintenance design	Query the volume required for hand access, tool access, or part removal Select components that block maintenance paths Evaluate whether filters, batteries, or modules can be replaced without disassembling too much of the product	Improves usability and lowers service costs.
Variant and platform development	Select all geometry within the subsystem volume that changes between product variants Isolate configurable regions for different sizes, power levels, or customer-specific options Compare which parts are common versus localized to one spatial zone	Supports modular design and reuse.
Documentation and communication	Isolate a spatial region to create clearer screenshots, exploded views, or work instructions Select only the components inside a subsystem volume for BOM review or design discussion Focus design conversations on the exact impacted zone	Improves communication between engineering, manufacturing, and suppliers.
Quality and inspection planning	Select surfaces or features inside a tolerance-critical region Define inspection zones for scanning, metrology, or first-article validation Isolate geometry around known failure-prone areas	Improves inspection efficiency and quality control targeting.

Your Benefits

The business impact follows directly. Faster spatial analysis means quicker design decisions. Early conflict detection cuts rework and prototyping costs. Reliable space reservation improves cross-discipline collaboration, because teams coordinate through the model rather than through meetings and email. Each of these gains compounds across a development cycle, shortening time-to-market while raising design quality.

Where to find the Volume Query in the platform

The 3DEXPERIENCE platform supports volume queries in several web apps, primarily for selecting components:

3D Search: Useful for filtering and navigating large datasets in Product Finder and Global Design Management.

3DPlay and 3DCompose: While these apps support 3D visualization and assembly, the "volume query" feature here is more about bounding box selection rather than calculating physical volumes.

xDesign: Primarily a design and modeling app, but it supports volume queries for component selection, similar to 3DPlay and 3DCompose.

CATIA 3DEXPERIENCE: This functionality is used for tasks such as:

Searching and selecting components within a defined 3D volume or box in a digital mock-up environment.
Retrieving occurrences that match a specified volume or box, which is useful for design reviews and collaborative innovation.
Converting functional design elements into volume representations, providing insights into structural design conversions.

Demonstration

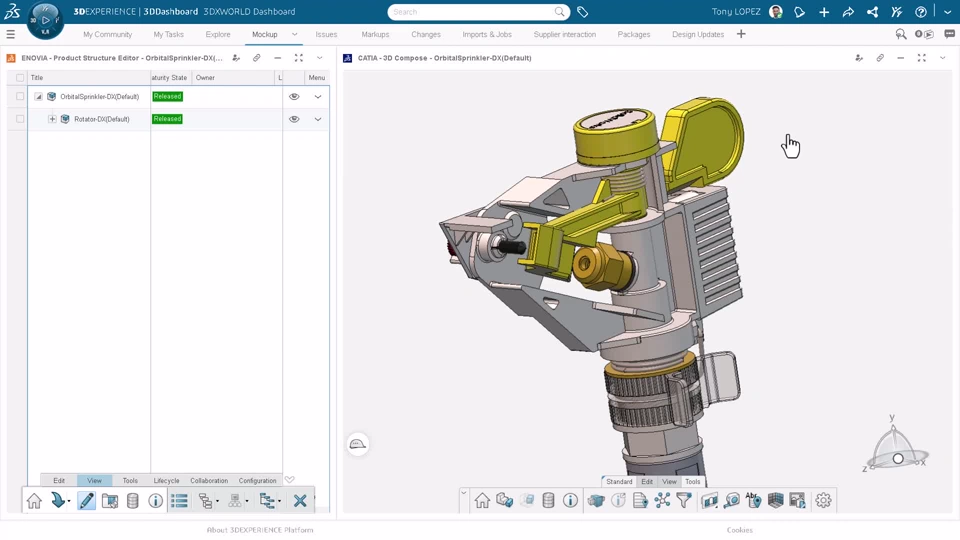

Let’s take a look at an example of volume search in action using 3D Compose.

Summary

Dense assemblies make spatial questions hard to answer. When engineers can't directly ask what occupies a given region, they fall back on manual inspection and visual estimates - slow methods that let costly clashes slip through to physical prototypes. Volume Query on the 3DEXPERIENCE platform solves this by letting engineers define a 3D region and instantly identify every component inside, intersecting or near it. Combined with collision and clearance detection and space reservation management, it turns guesswork into precise and productive documented analysis. For engineering teams focused on reducing development time, controlling costs and improving quality, the value is clear: when you can ask exactly what fits in a space—and get an exact answer—you design it right the first time.
