Design reviews are important activities that contribute to the accuracy of the design work.
The 3DEXPERIENCE platform provides several roles and applications (native / web) to support efficient design review processes and collaboration.
As a reminder, here are the main roles that help you to create Design Reviews:
Role | Native / Dashboard support | |
1 | Digital Mockup Review Engineer (DRN) | Native |
2 | Digital Mockup Validation Engineer (DEY) | Native |
3 | Digital Mockup Review Manager (RED) | Dashboard |
4 | Digital Mockup Validation Manager (YED) | Dashboard |

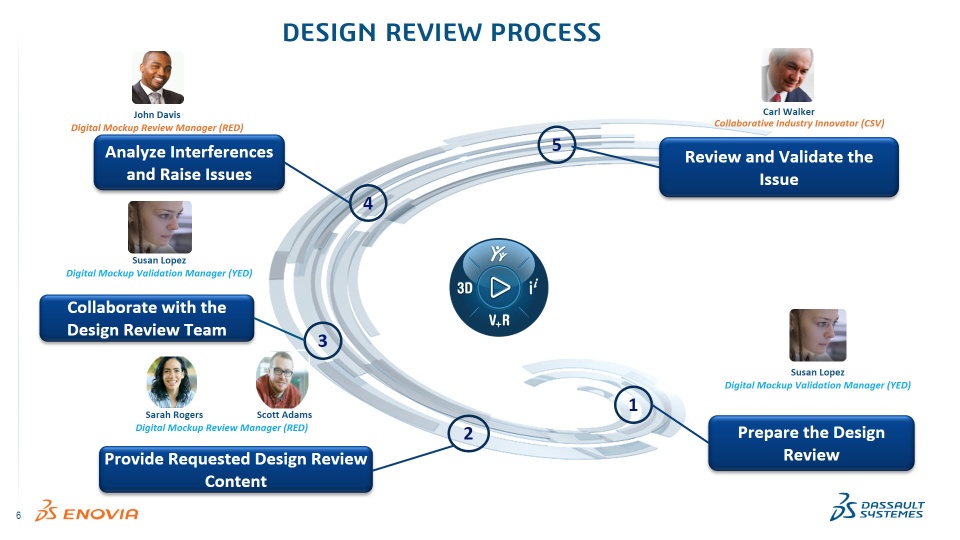

the following process illustrates how the dashboard roles (RED / YED / CSV) may work together:
The role “Collaborative Industry Innovator – CSV” provides the “3D Markup” app that enables a design review on web for multi-CAD product structures.
This app delivers the following main capabilities:
- Markup creation and review
- Measure items, the distance between items, or thicknesses.
- Cut through objects using a section plane.
- Annotate objects using different types of annotations.
- Create and play slides displaying specific states of the markup.
- Play a markup in 3DPlay for Dashboard.
This role provides also a set of apps that can help you collaborate around your design reviews:
App | Main capabilities | |

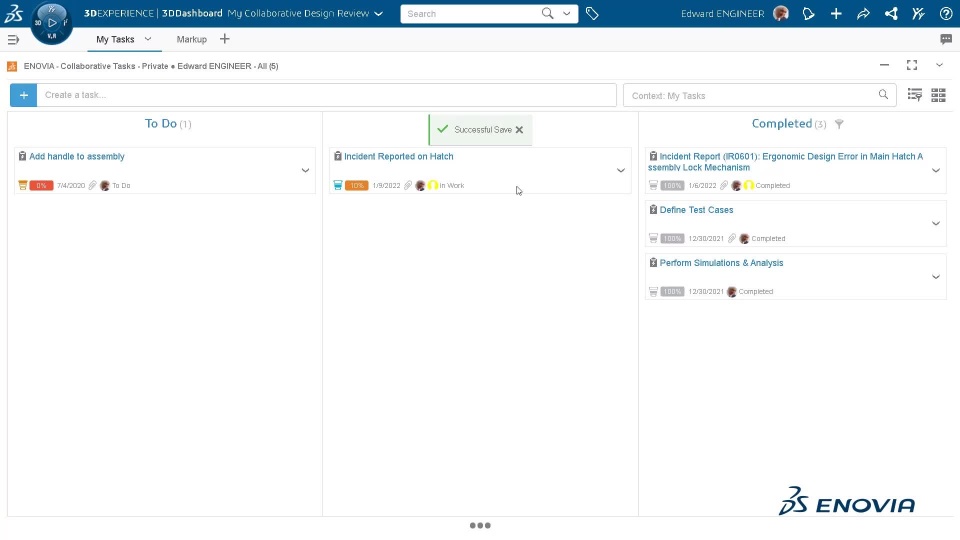

1 | Collaborative Tasks | Provides an intuitive user experience for simple task management (Without the need to create a project) |
2 | Issue Management | Enables a creation of issues that define problems to be resolved or functionality that needs to be investigated or improved |
3 | Change Action | Provides a formal change process that combines users, proposed changes, realized changes, attachments etc. |
When creating a 3D Markup, you can directly raise an issue and/or a Change Action from the Markup itself. When both issue and Change Action are created from the same Markup, the Change Action is automatically linked to the Issue as “Resolved By” which streamlines the Issue definition.
The following video illustrates a collaborative design process using 3D Markup, Collaborative task, Issue Management and Change Action apps.
