DELMIA Connectivity along Work Order Creation in Fabrication WOC F

TM 2021-12-20

Within Dassault Systèmes, DELMIA Connectivity Task Force (Aka DCTF) is delivering Turnkey Solution Framework that brings together DELMIA (DM), Ortems (APS), Apriso (MES), ERP

Work Order Creation in Fabrication (WOC-F) differs from 2 previous Scenario "Work Order Creation" (WOC) & "Closed Loop Issue Resolution" (CLIR). Because here we tackles Quantity

WOC-F scenario focuses on machining (subtractive mfg.), inside a machine shop.

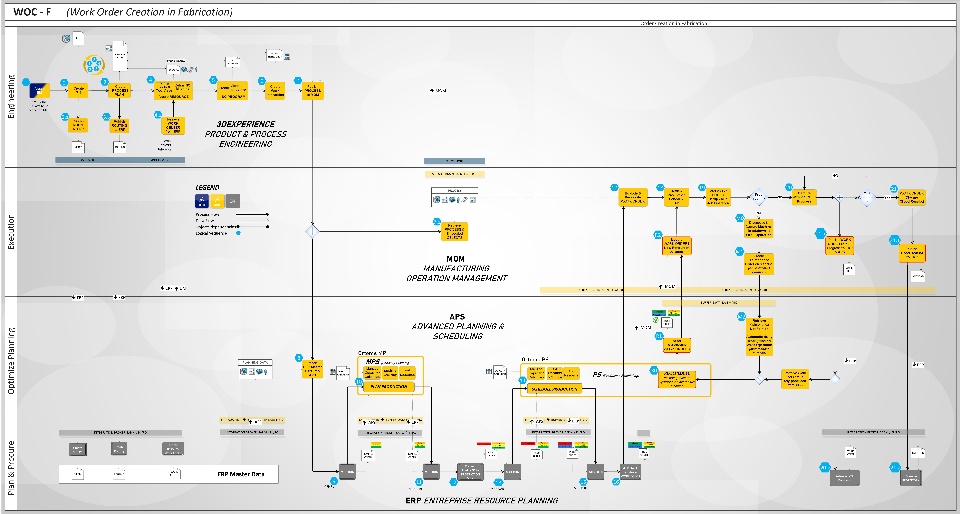

Please find below Process flow Diagram: (download pdf)

Key Topics and Concepts (beyond WOC & CLIR)

Multiple MID / Workplan / Process Plan structures for machining
Modeling an OR relationship between capable resources for a machining operation
Moving from virtual (DM Capable Resource) to real (Apriso Equipment) using Ortems Production Scheduler to select the equipment to be used
MRP Simulation - Generating planned orders (qty. > 1) from demand for products against a multi-level BOM
Focus on the difference between Ortems Manufacturing Planner (Capacity Planning) and Ortems Production Scheduler (PS) (Sequencing), and how they can be used together
Work order reconciliation in Apriso that includes the specific equipment selected for an operation (from Ortems PS)
Apriso Production Monitoring Cockpit, adjusted to display operations allocated to equipment
Equipment focused operations on the shop floor that incorporate Apriso’s Distributed Numerical Control (DNC) application
AEClab’s Production Console (PCO) – A rich Apriso implementation for fabrication operators
Direct connection between Apriso and Ortems PS to for equipment state information and emergency re-schedule updates

Link to CLIR Post: https://r1132100503382-eu1-3dswym.3dexperience.3ds.com/#community:F808hrMlRu6muF3FamipVQ/post:CPveqrNjRVu-bQ_WRoCbqg

Link to WOC Post: https://r1132100503382-eu1-3dswym.3dexperience.3ds.com/#community:F808hrMlRu6muF3FamipVQ/post:YVHoCBDgRFC4AnWdcyJ91w

Feel free to reach us for any further information you may need about Technical Integration & environment setup to enable this Scenario at your Company.

Thibault MULTRIER

(Industry Process Expert / Enterprise Architect)
