This workflow was presented at Concept Engineering Community Day held in Detroit, MI and Long Beach, CA on Oct 11th, 2022 and Oct 18th, 2022 respectively.

Abstract

Design data for structures in the concept stage is incomplete and evolving. For efficient design, important decisions must be made rapidly (sometimes in hours). Traditionally, the lack of precise 3D design data makes it challenging to apply FEA during this stage which can cause significant issues to be passed along to the detail design phase, where it may be expensive to fix. In addition, there is a lack of synchronization between system and subsystem objectives which may cause a waste of time due to users working on outdated designs & requirements, which will lead to high overheads.

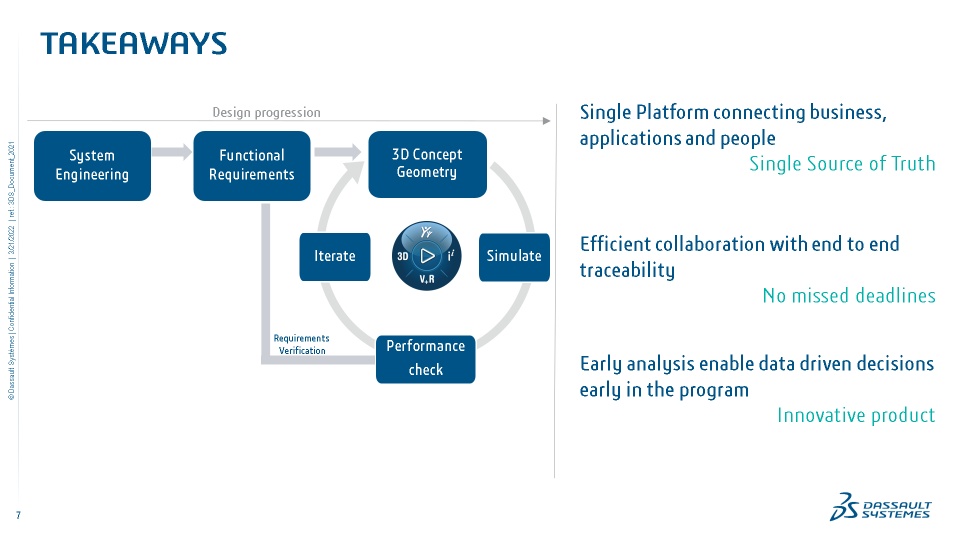

In this presentation, we showcase a unified workflow to evaluate requirements originating from MBSE models and then applied to structural design and simulation with full traceability from requirements to simulation KPIs, all in a single environment.

Workflow Exhibit

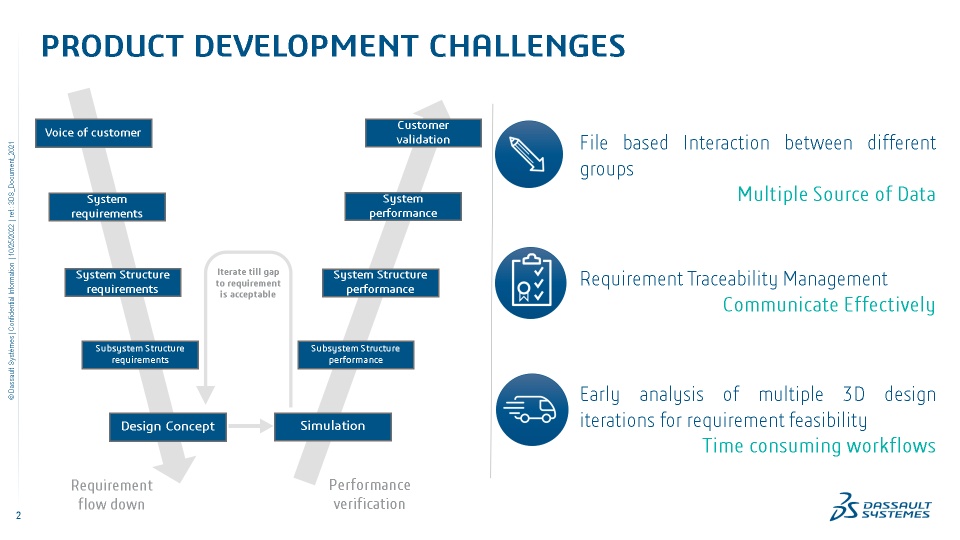

Product Development Challenges

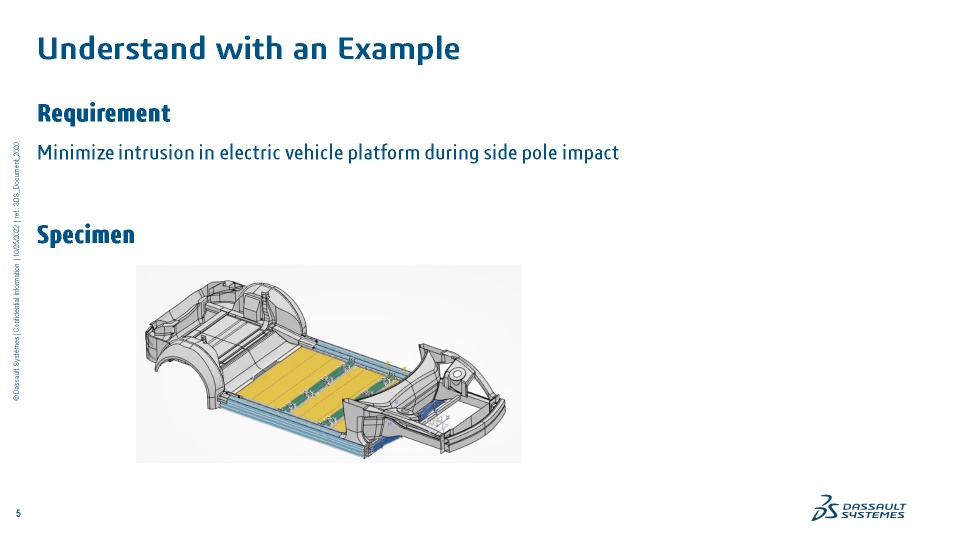

3DX platform solution with an example

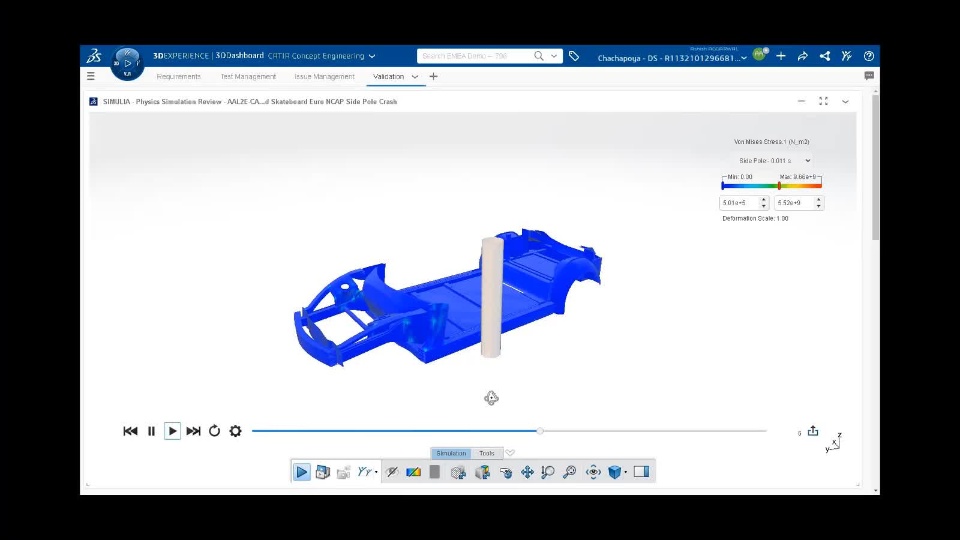

3DX platform solution Video

Conclusion

​​​​​​​​​​​​​​

I would like to thank @KP @PK for mentoring me in their respective domain expertise. Thank you to all the contributors @MD ​​​​​​​@DB ​​​​​​​

Feel free to contact me, in case you have any questions.
