After my post on multi-body design, I would like today to quickly share with you information on what is, I think, another main differentiating capability available in our CATIA Mechanical&Surface roles: the Hybrid Design.

What is Hybrid Design ?

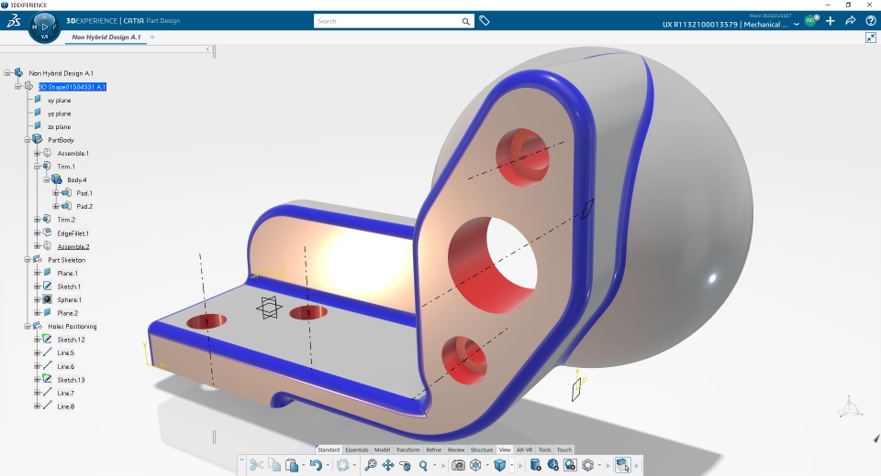

If Hybrid Design is turned off, Wireframe & Surface features can « only » be created inside Geometrical Sets or Ordered Geometrical Sets, but can not be created in Solid Bodies.

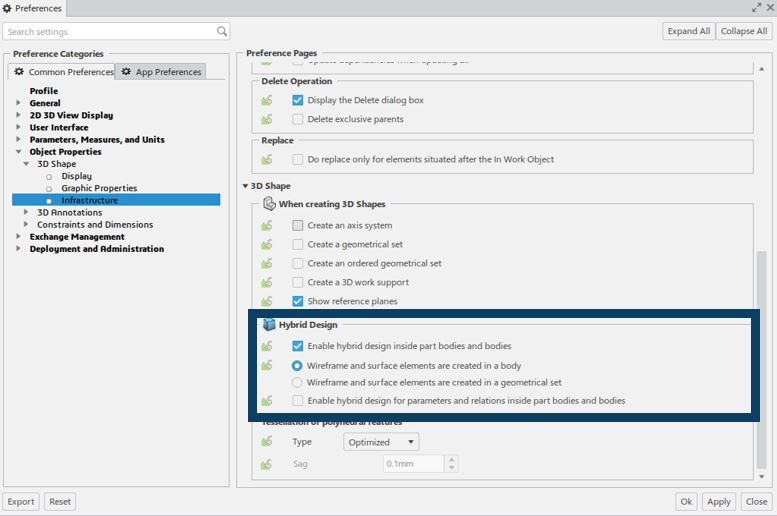

How to activate Hybrid Design ?

Note that the option “Wireframe and surface elements are created in a body” is to be used preferably to facilitate user’s understanding.

What are the Pros & Cons of Hybrid Design ?

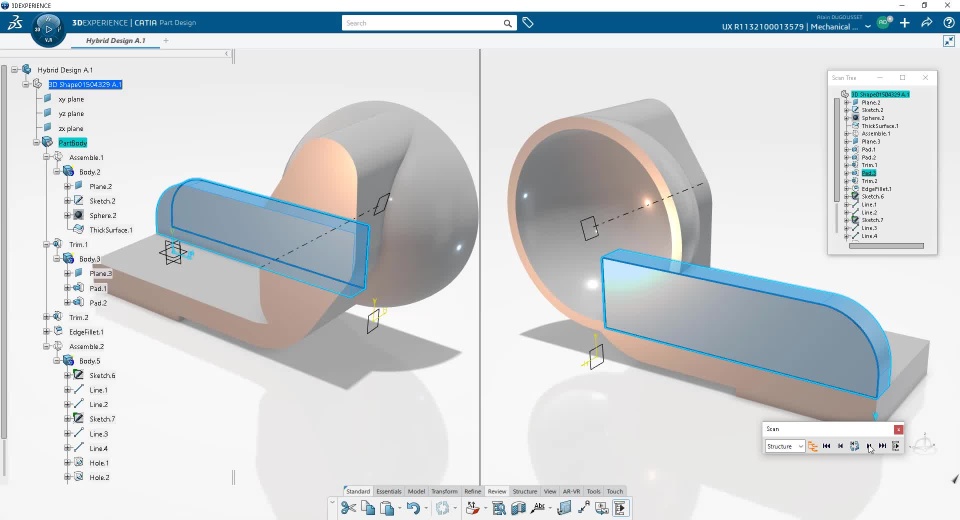

1- Ease of use of the “linear” approach

• No need to switch from Solid bodies to Geometrical Sets or Ordered Geometrical Sets depending of features types
• Only features that can be used for creating new ones are visible

2- Ease of re-use of the “linear” approach

• “Simplest” methodology for Part reuse, either by the same user or another one.

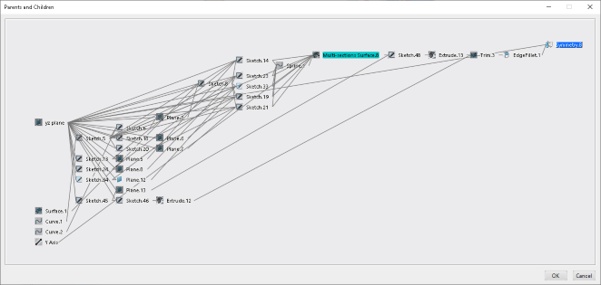

• No need to spend (loose) time trying to understand links between features in different bodies of different types

3-Flexibility for user who can mix both approaches

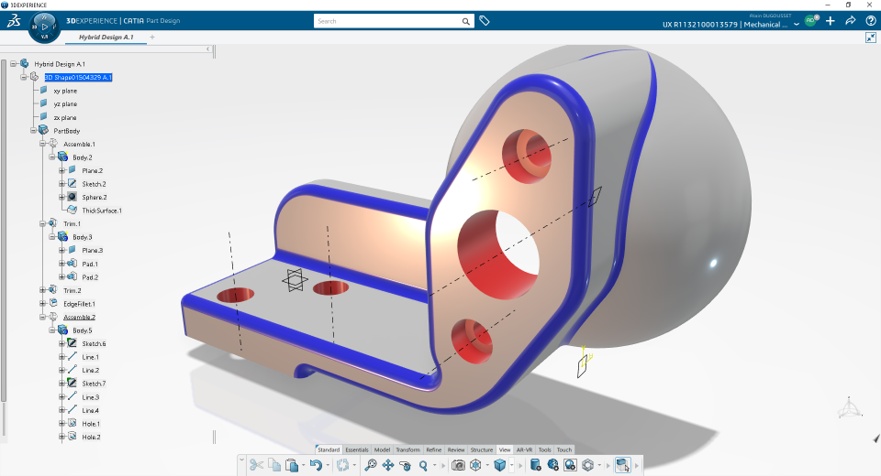

• Wireframe & Surface features with Solid one in Solid bodies

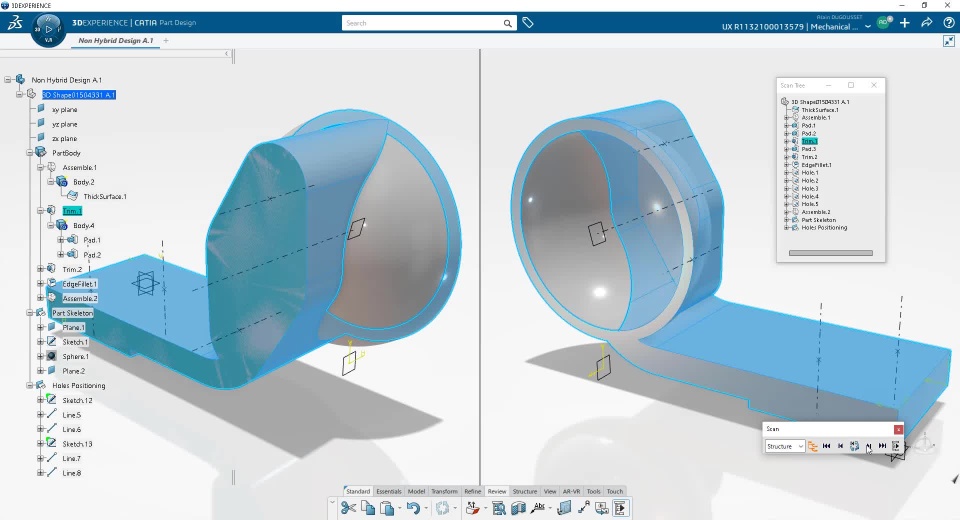

• Wireframe & Surface features inside Geometrical Sets or Ordered Geometrical Sets,for instance for Part Skeleton features

The only drawback I can see of using Hybrid Design is that it's a structured approach “only”, which can be seen as « too limited » for users who want

• to manage Wireframe & Surface feature independently of solid ones

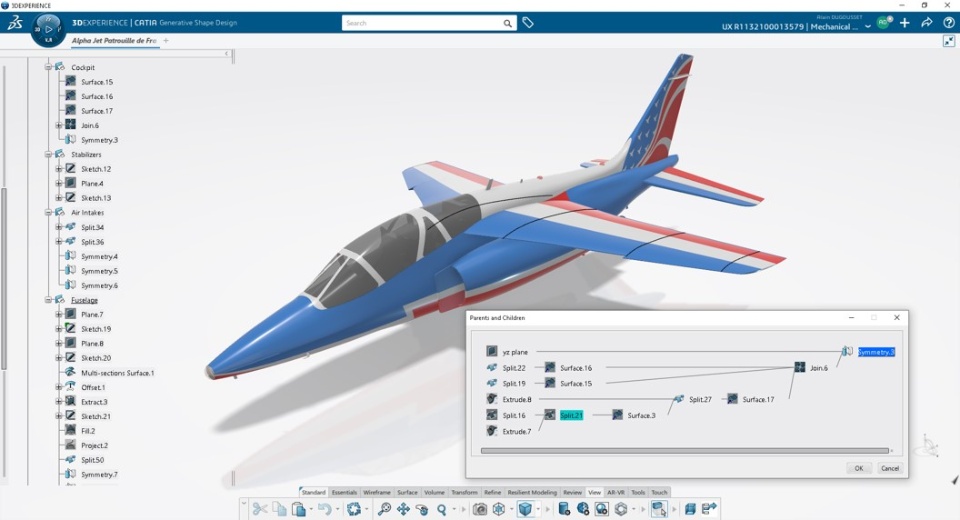

• to create non linear design and use CATIA modeling capabilities when using this kind of design methodologies

Hybrid Design and Knowledgeware

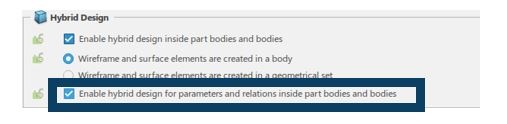

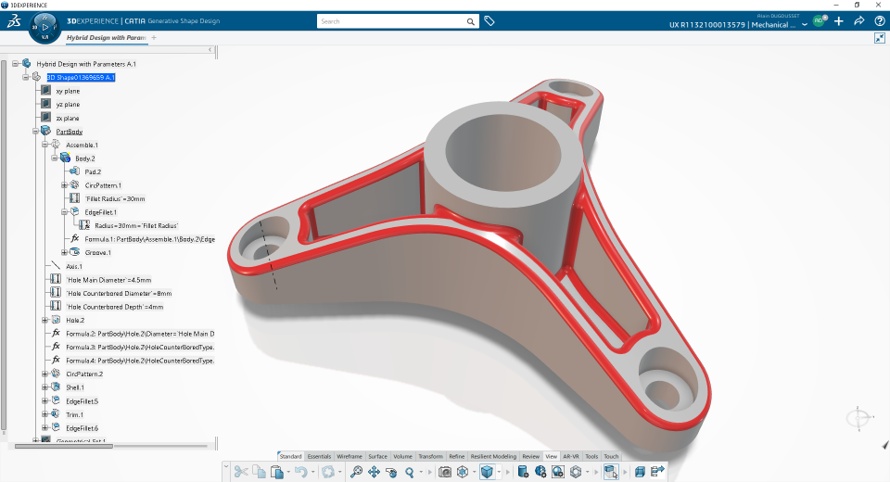

Thanks to a dedicated preference, parameters and relations can be created inside Solid bodies too.
