To create a volume built by the intersection of two other volumes, you must first create a new 3Dpart. In the tree, expand the two 3Dparts involved in the intersection.

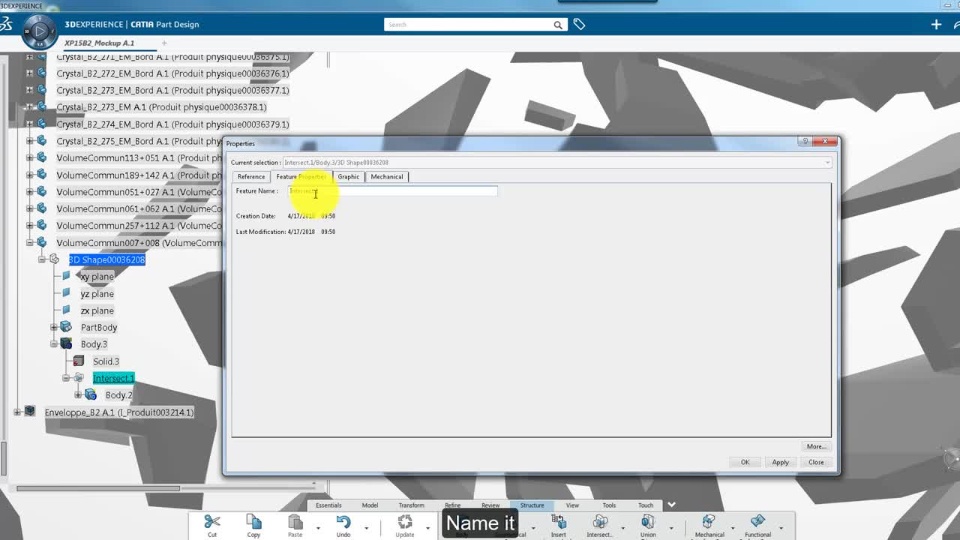

Select the 3DShape of the new 3DPart and select the "intersection" tool. Then select the two volumes concerned by the intersection. Your new volume has been created in your new 3DPart as "intersect.1".
You can then modify the graphic elements of different volumes such as color or transparency to have a better visualization of the new volume.
