Objective :

• Leverage the 3DEXPERIENCE to add details on an architectural model received from Revit with a level of details 200 ;
• Prepare a generative model of a partition with a level of details 350 ;
• Instantiate this model on the existing architectural partitions.

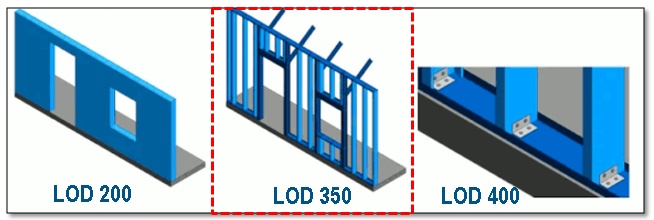

From LOD200 to LOD350 :

Based on the architectural specifications coming from Revit as IFC, we can change the level of details of each wall from LOD 200 to LOD 350 with more details (studs, channels, drywalls, insulation panels,...) respecting the country regulations and supplier product specifications.

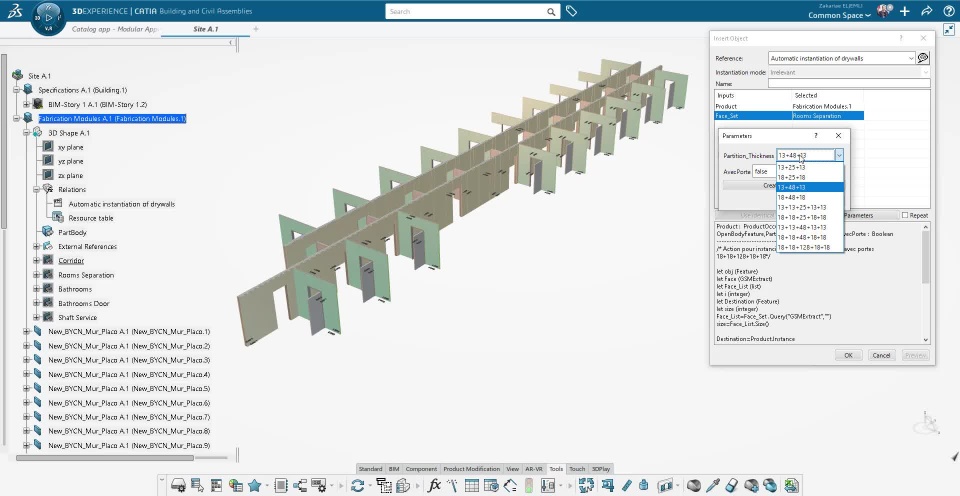

Demonstration of automatic instantiation :

Here is a demonstration highlighting the automatic instantiation of partitions based on architectural model received as IFC from Revit.
