I love CATIA and I love fencing.

So in celebration of both, I present you a Fencing Mask realized with:

• Human Design: To have a human reference for the size of the mask and nicer renderings
• Visual Scripting
  • The algorithmic approach is essential to create easily patterns like for a grill, list manipulation is key.

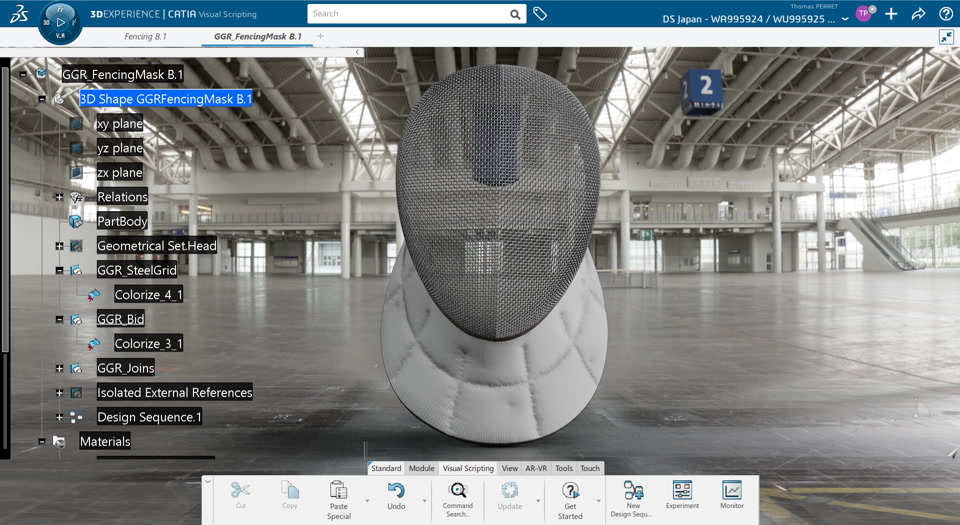

  • The Soft Body Solver helped me create a more realistic looking padded bib for the mask

This design is build using methodologies introduced in these two wikis:

https://r1132100503382-eu1-3dswym.3dexperience.3ds.com/community/swym:prd:R1132100503382:community:SNKdMgXCR8SJqa8lpbe7IQ?content=swym:prd:R1132100503382:wikitree:HPGhMmQ4SOSX6wvfloV3LQ

https://r1132100503382-eu1-3dswym.3dexperience.3ds.com/community/swym:prd:R1132100503382:community:SNKdMgXCR8SJqa8lpbe7IQ?content=swym:prd:R1132100503382:wikitree:gyXBonTwQ_iNN6NQIbR6Ag

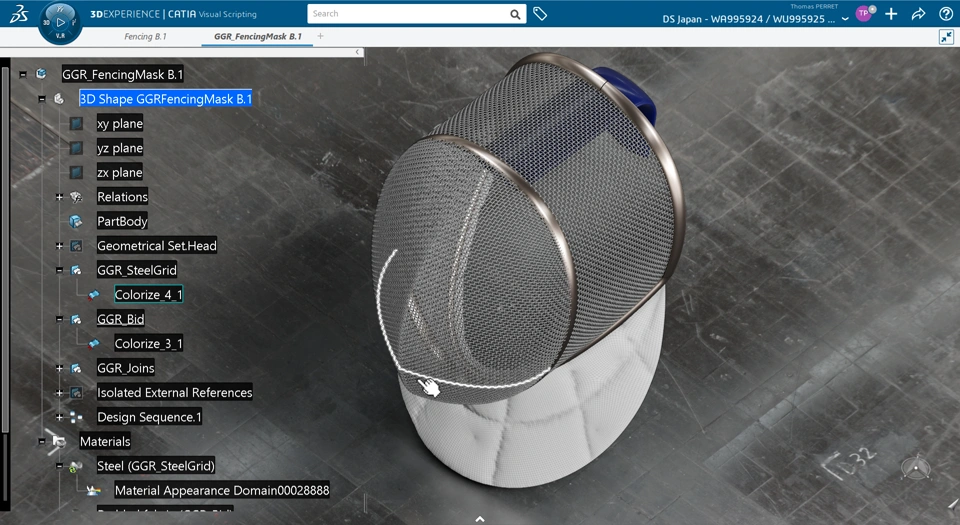

Like in the Weave Pattern tutorial, steel wires are a pattern of splines created by mixing lists of offsetted points. In this case I used the Line Normal operator to translate the points normally to the surface.

The model is quite heavy to share here, but I will progressively share explanations of some of the logic used.

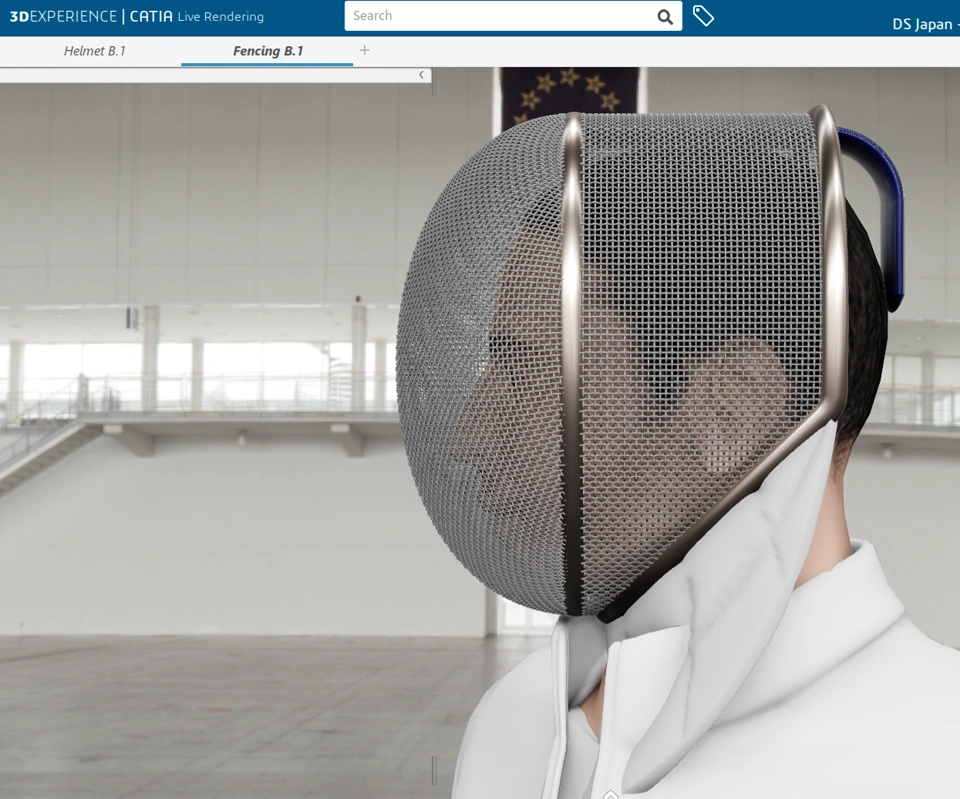

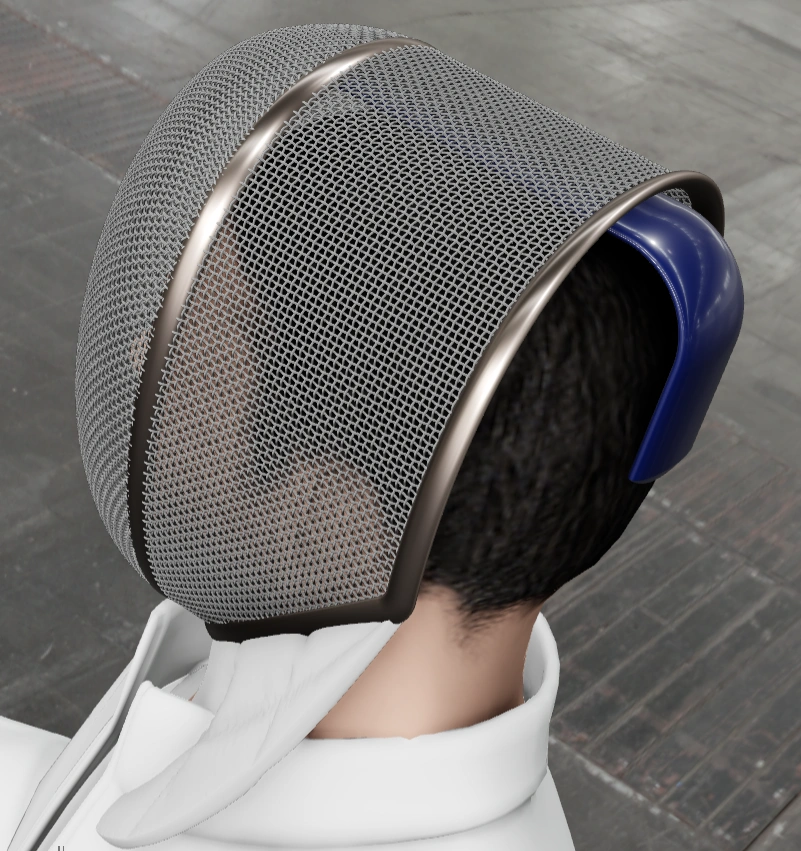

Additional renderings:
