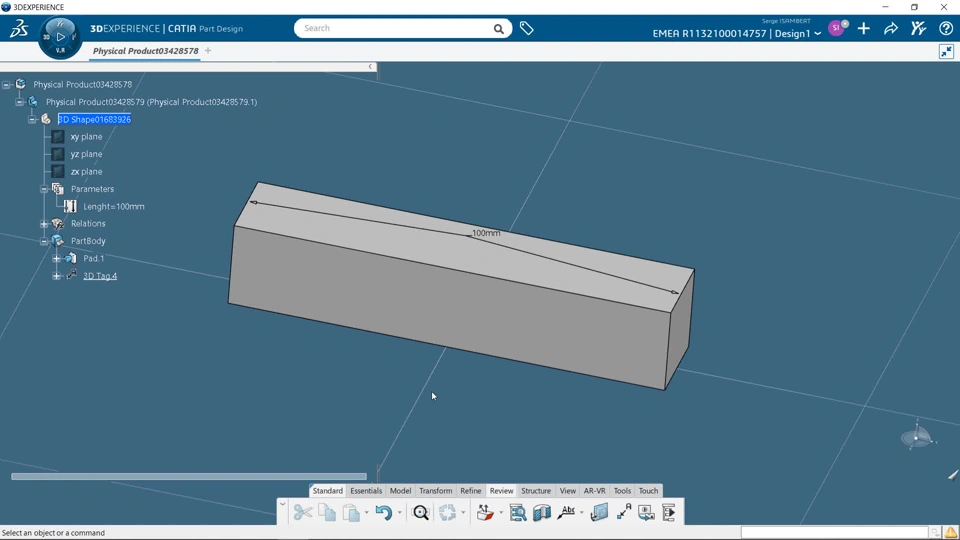

A 3D Tag is a geometrical feature with all feature capabilities and is used to display text in the geometry. It has the following properties:
- Each 3D tag has a text label which can have one or more leaders.
- The label is a literal of type string with usual behavior. It can be edited in tree or in command's dialog box. You can also add a formula.
- The leaders' end points are defined by selecting points or vertices.
In the geometry, the text is located by default near the barycenter of the leaders' end points.
The position can be changed by manipulation when editing the 3D tag.
- 3D tags can generate associative 2D texts with leaders in Drafting app.
You can change the graphic properties such as color, line type, thickness. The text properties (font, size, etc.) cannot be modified.
