Following is a summary of a Live Hands-on training session that was conducted on an automotive Battery Pack using the Concept Structure Engineer Role of the 3DExperience Platform. This Workflow was presented at Concept Engineering Community Day held in Detroit, MI, and Long Beach, CA on Oct 11th,2022, and Oct 18th,2022 respectively.

Abstract

_______________________________________________________________________________

Concept Structure Engineer, on the 3DEXPERIENCE Platform from CATIA, is a complete, end-to-end, concept design and engineering solution, connected to our Modeling & Simulation initiative.

You can seamlessly start from upstream engineering inputs, and quickly create parametric models, through a modular approach for future reuse. With less time spent ‘prepping’ models, we are able to swiftly move through a variety of alternative designs, through SIMULIA’s Parametric Design Study to see which alternatives pass or fail as the engineer moves the product along in the design process.

Workflow

_______________________________________________________________________________

Hands-on Session in action.

​​​​​​​

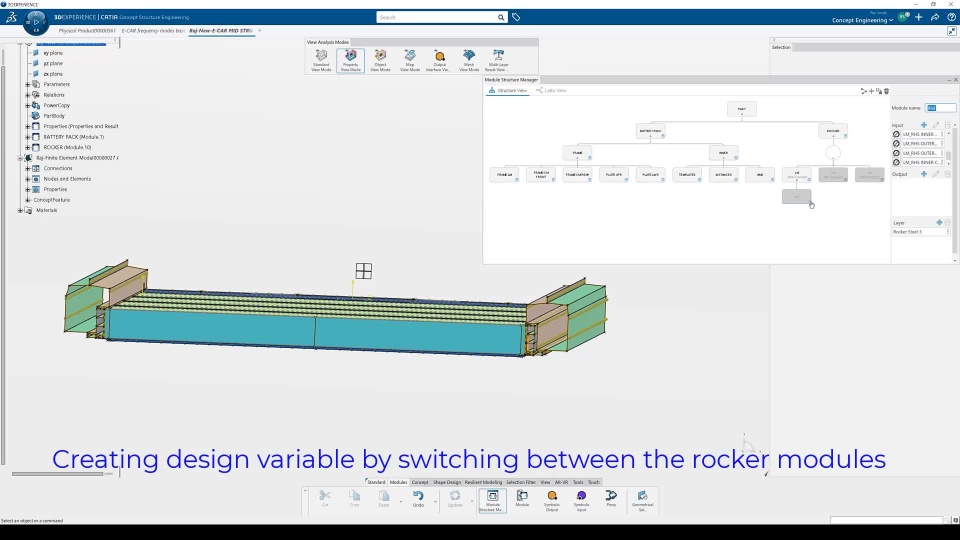

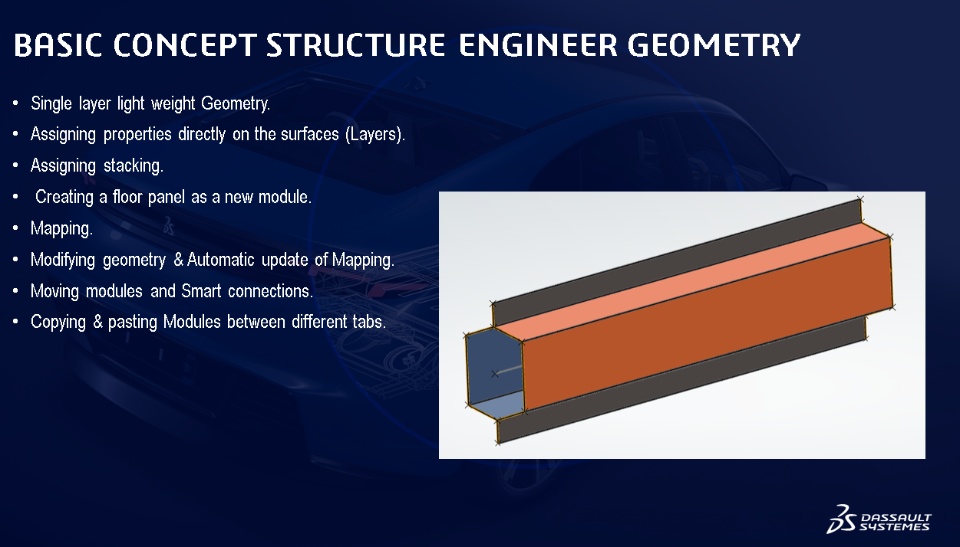

Going over Concept Structure Engineer App Basics and Explaining the Single Layer Geometry.

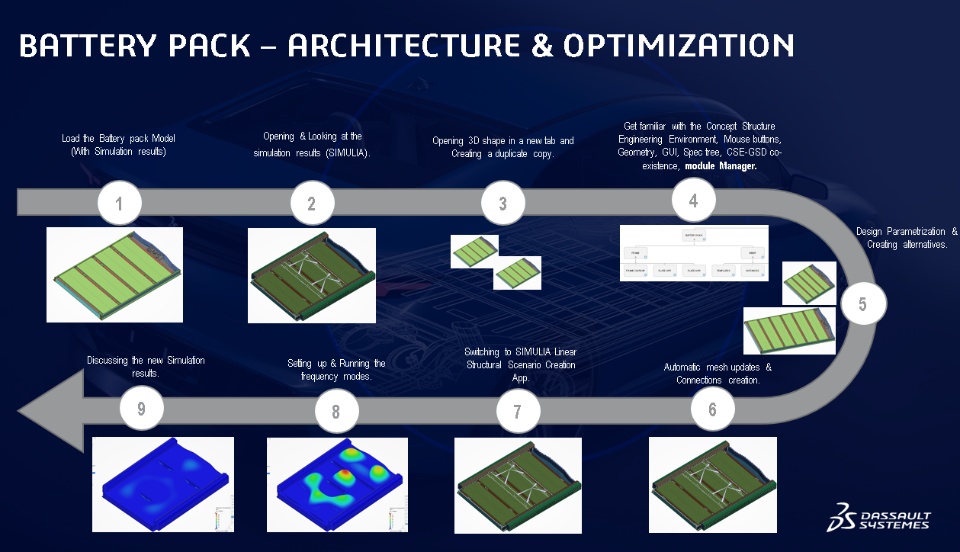

 Optimization of an Automotive Battery Pack End to End Process.

Video - Demonstrating an End to End process of an Automotive Battery Pack Optimization

​​​​​​​

I would like to thank my colleagues @MD ​​​​​​​@HN ​​​​​​​@ET @AA for their Contributions too.

Please feel free to get in touch with me if you have any questions about the Hands-on training session or the Models that were used.
