ENHANCED APP | CATIA Terrain Preparation
Terrain Image Mapping
- Parameter update: Management and synchronization of mapping parameters of all images through a sheet table

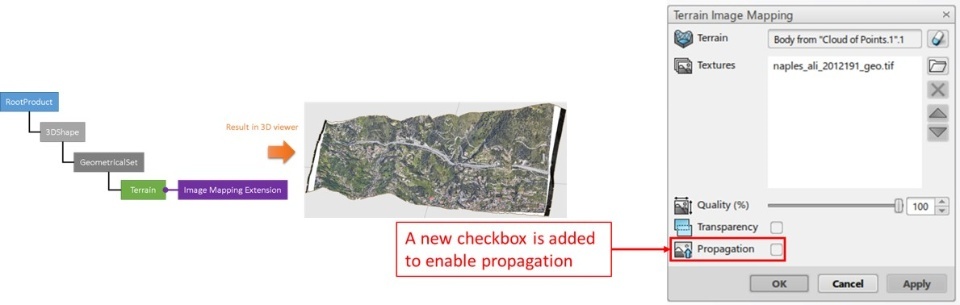

- Propagation: New option added to allow the propagation of an image mapping extension defined on a terrain on features having the same terrain as input
Access to the command "Link to spreadsheet"
A button has been added to launch the command "Link to spreadsheet" with the current terrain selected: instead of launching the command from the section "Tools" in action bar.

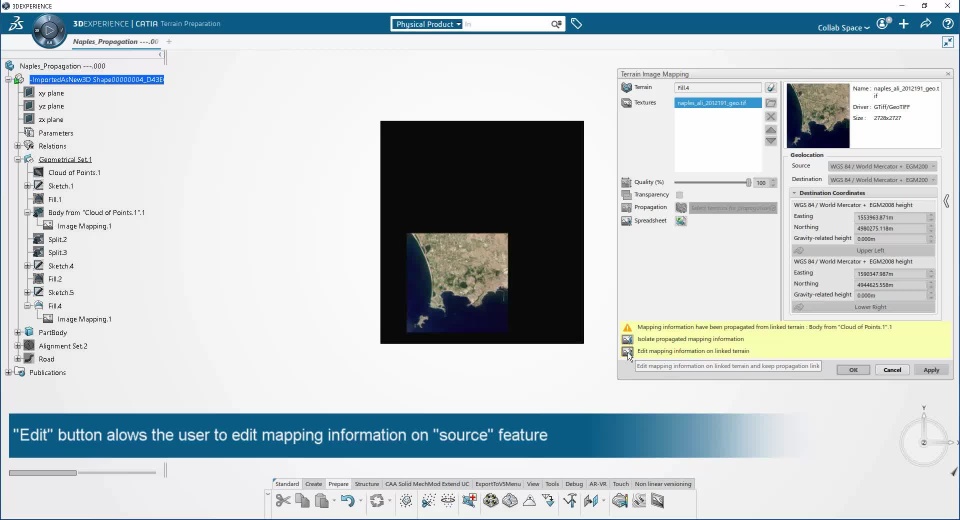

Mapping information can be propagated to other terrains.
Terrain(s) / feature(s) selections

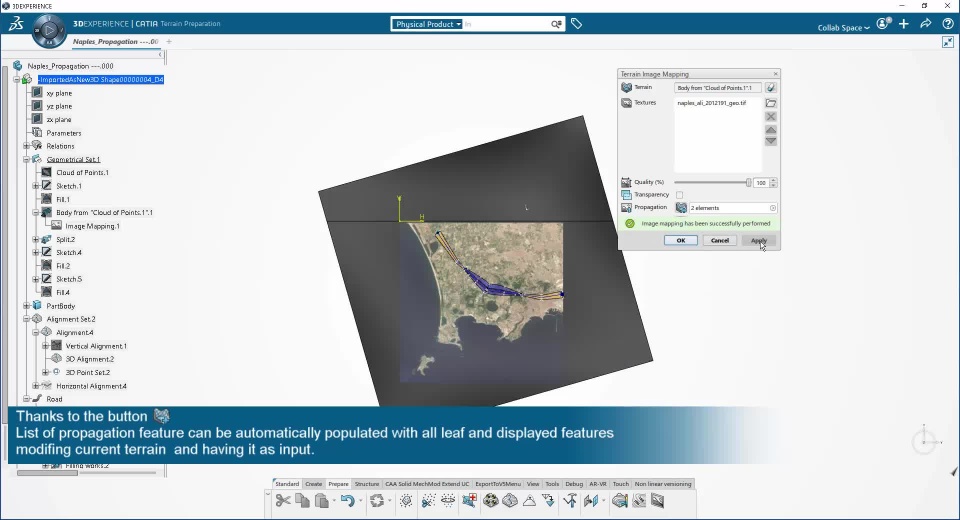

Terrain(s) / feature(s) modifying current terrain and having it as input
ENHANCED APP | Civil Engineering 3D MODELING
Road/Rail functional improvements
Alignment | Improve Transition Curves

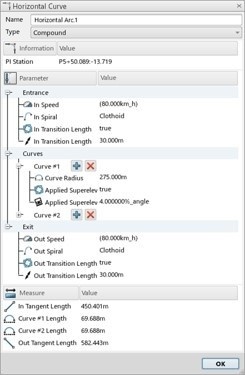

- Improved definition of horizontal curves with the support of Compound transitions
Road/Rail | Subgrade Geometrical Design
- A new command used to design the layers of the road/rail project that are between the track and the excavation
Road/Rail Design | Sculpting enhancements
- New option when creating modified terrain to choose the result with or without “excavations and fillings”
- Creation of Boundaries on modified terrains
