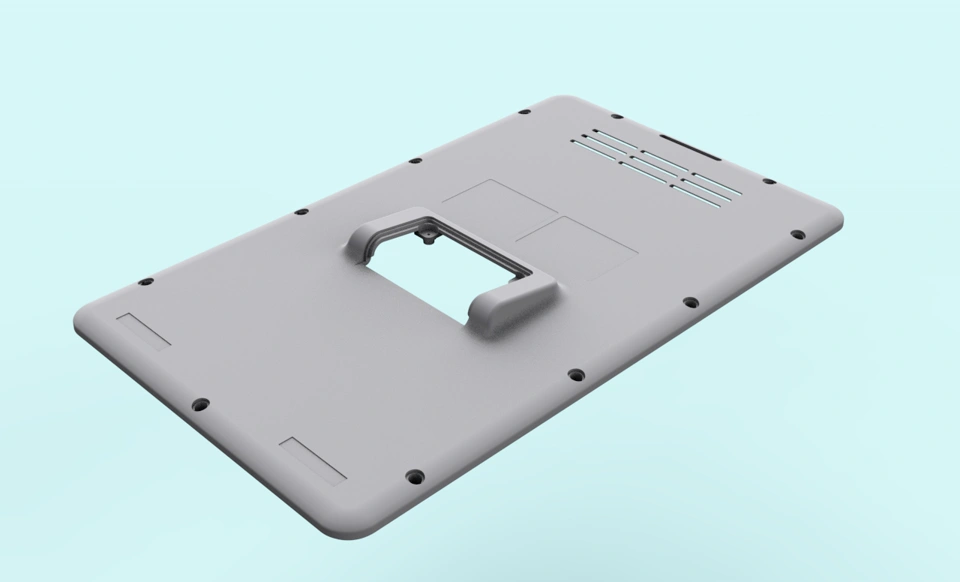

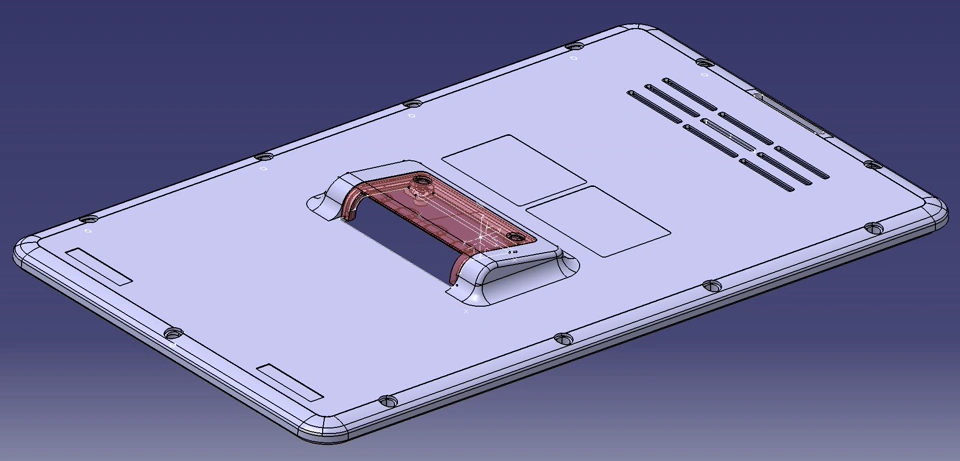

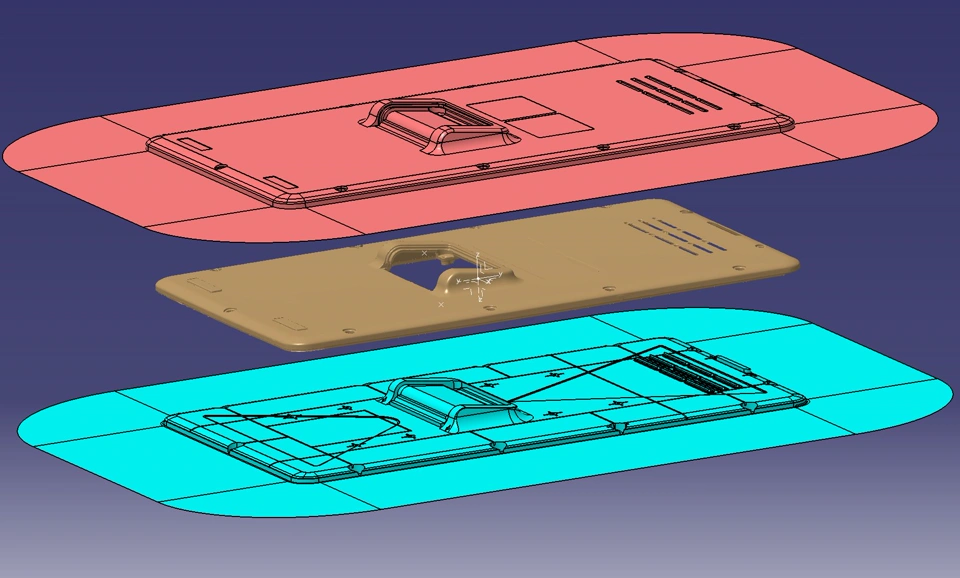

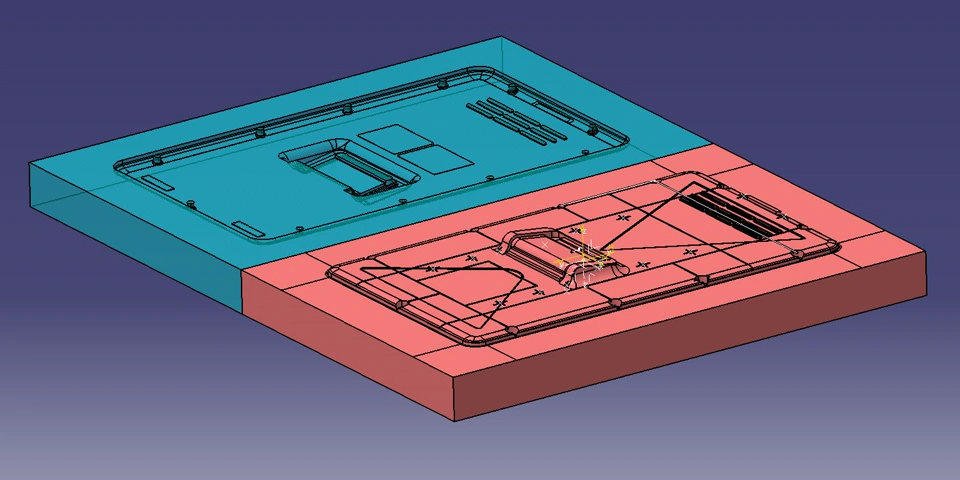

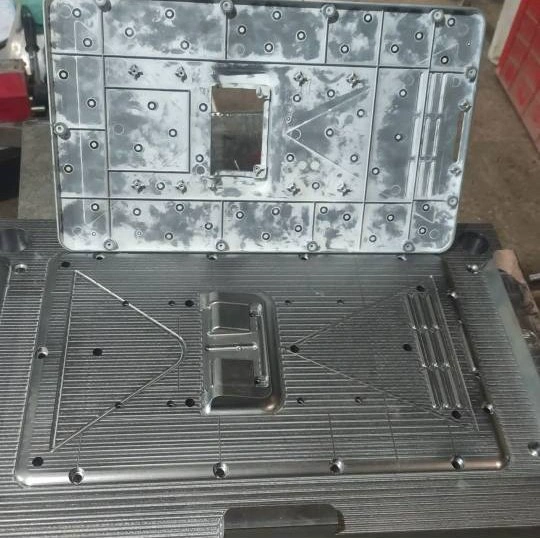

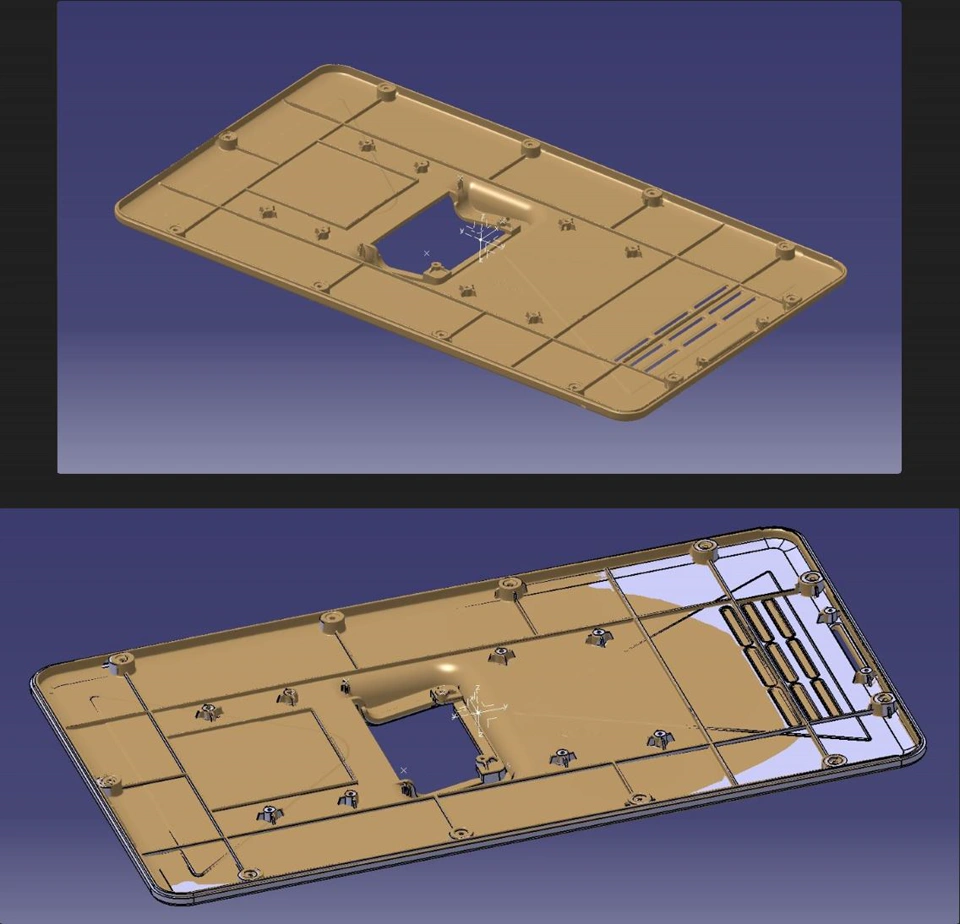

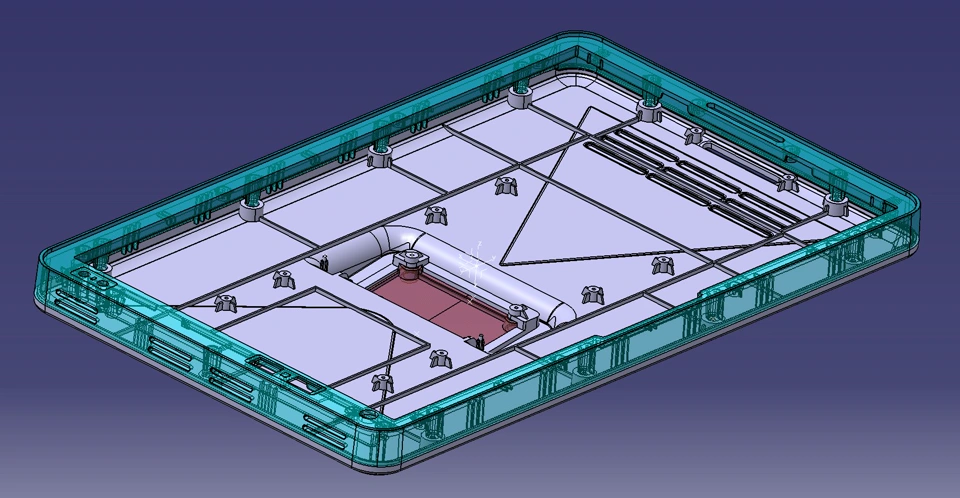

Designed this plastic part for production, where I optimized and corrected the geometry during reverse engineering to fix the deformations found in the original part. After modeling, I extracted the core and cavity surfaces and designed the injection mold tooling. The final machined mold is also shown in the photos.
