In this post we are sharing recent samples and material for MBSE in medical devices SysML and integrations in MBSE ecosystem.
MBSE and V&V

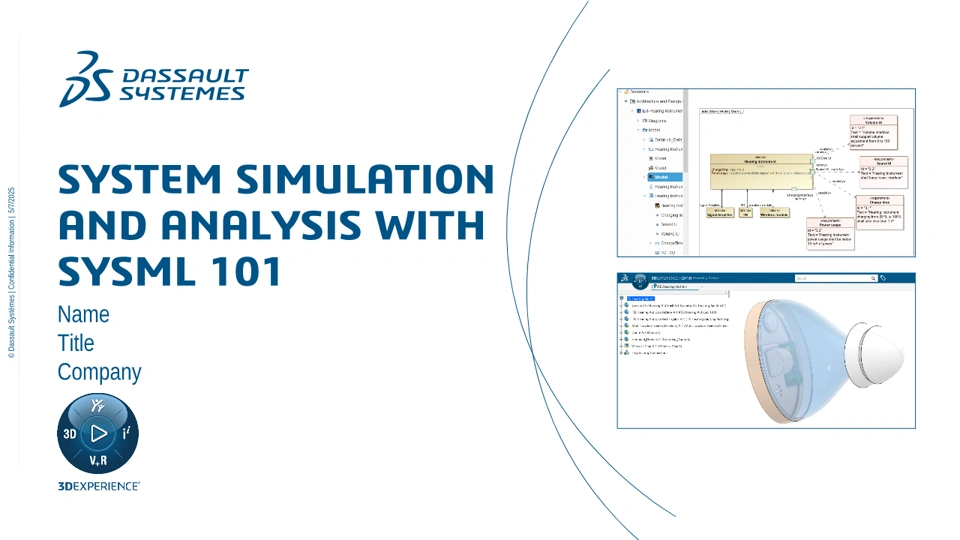

First of all introduction to system simulation and analysis with SysML covering:
- Validation based on use case simulation
- Verification based on system model execution and requirements compliance analysis
- Verification with detailed design model in the loop (SysML / Process Composer / 3D CAD integration)
Sample CATIA Magic project (unzip before using):
MBSE Ecosystem and Digital Engineering
Second we want to cover integrations between System Architecture in SysML and 3DEXPERIENCE Platform: Requirements Management (TRM), Variants Management / PLE in Enovia, Traceability, 3DCAD Integration using Process Composer.
Here is longer version of this demonstration presenting MBSE as DE enabler. From System Engineering to Analysis and Design for the Best Digital Products Engineering. In Context of Hearing Aid Medical Device In this session, we present major integrations of MBSE with SysML with design, analysis and model management capabilities in 3DEXPERIENCE platform - engineering and business model based enterprise environment by Dassault Systèmes. Session cover following major four integration points already available by this year plus we will talk about roadmap:
- System Architecture in SysML and TRM Requirements Management Integration
- System Architecture in SysML and ENOVIA Product Line Integration
- System Architecture and Process Composer Simulation Integration
- System Architecture Future Integrations Roadmap
Sample CATIA Magic project (unzip before using):
