Imagine & Shape : From Ideas to 3D
After drawing your model, sometimes using Natural Sketch or Live Shape, take a look to see how you can now use Imagine & Shape to model your thoughts and unleash your creativity !

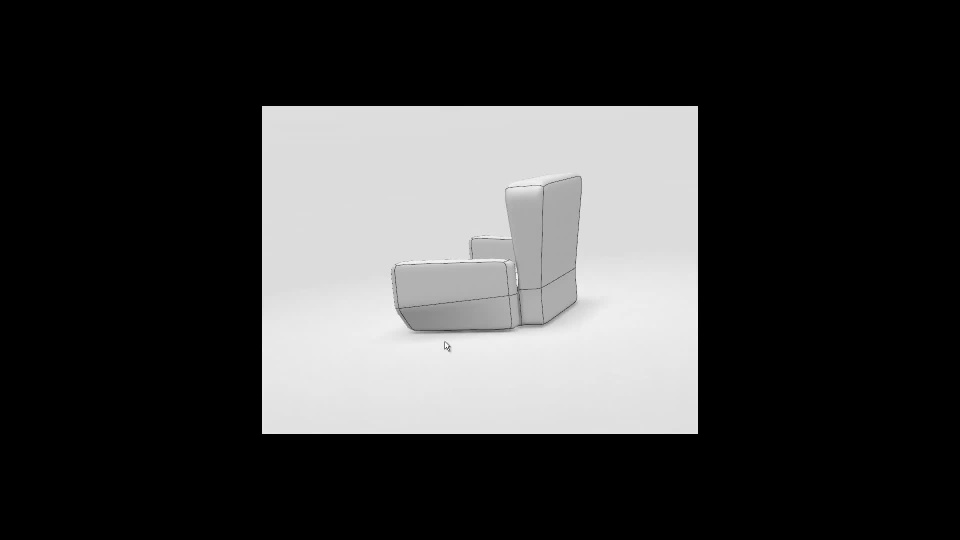

Here is a little video demo of how we used Imagine and Shape to modelize the "Boudoir" seat :
Video : modeling on Imagine & Shape |
Tips & Tricks : How easily model a seat with Imagine and Shape ? Step 1 to 3

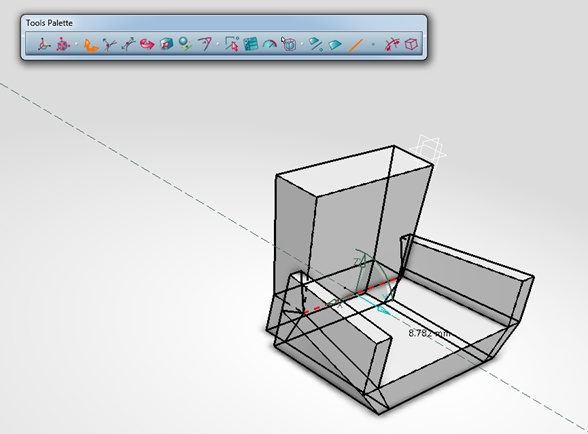

1-Create the global shape
1 |
|

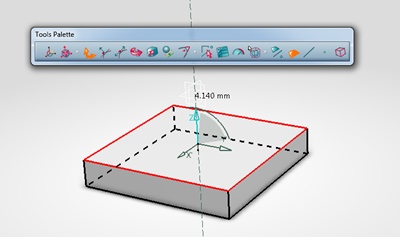

Create a box |
2 |

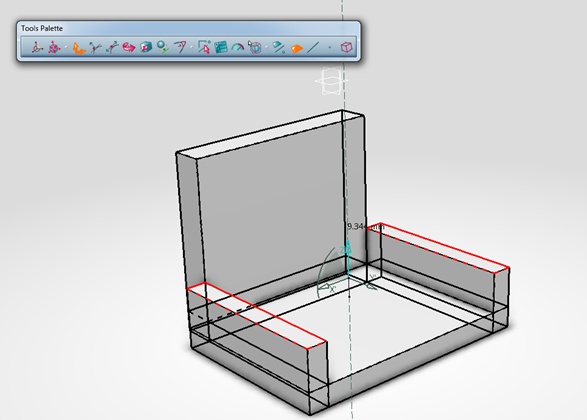

Face Selection + translation | |
3 |

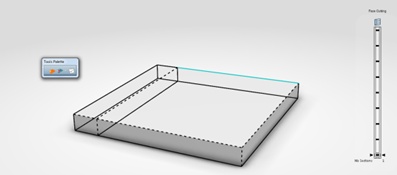

Select Face Cutting |
2- Set the shape you want for your seat !
1 |

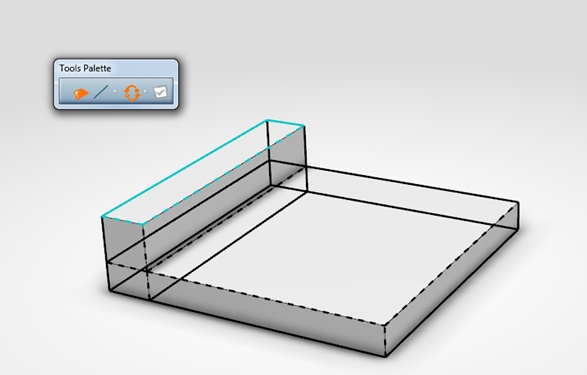

Extrusion tool | |
2 |
|
Repeat this operationas as many times as you want by using :
Face, Edge, or Vertex selection

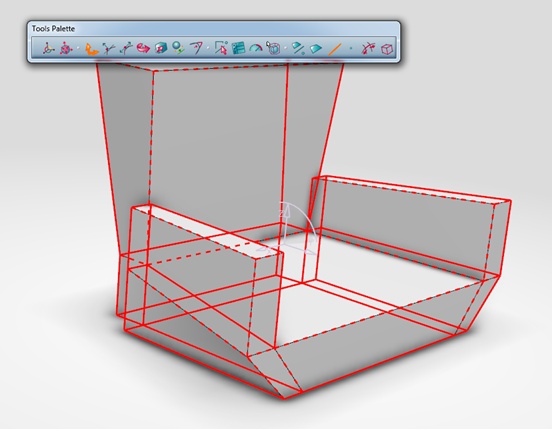

Translation, Rotation, Infinity |

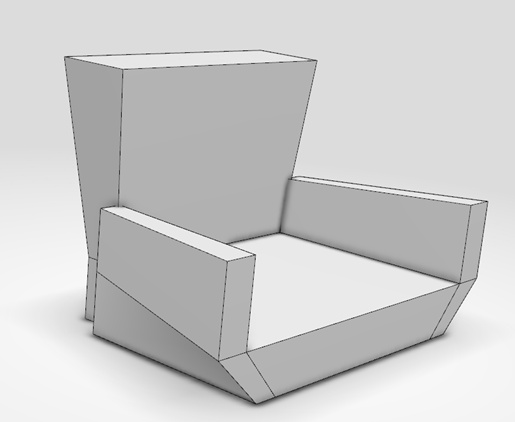

3 | That's an example of what you can get quickly ! |

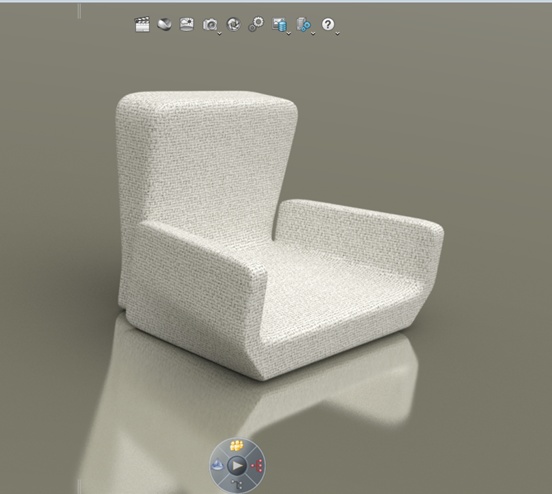

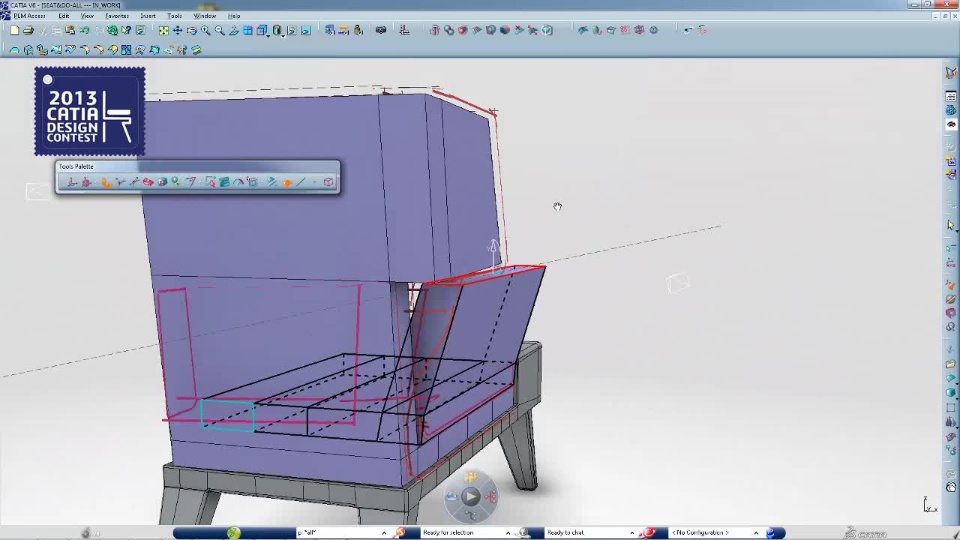

3- Give smoother shape to your cushion :
1 |
| |
2 |

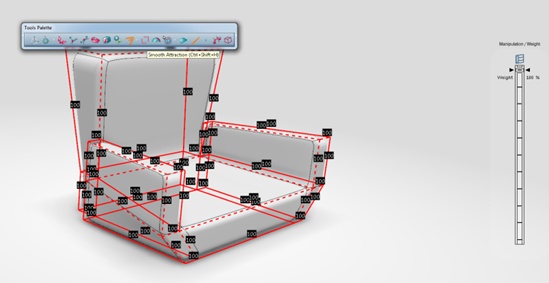

Attraction with smooth attraction option |
Now it's your turn ! Do not hesitate to share your own Tips&Tricks and your first attempts !
|
|
|
