b l e u - Ideation & Creativity
Starting point of "b l e u" was a design brief :
-Gran Turismo Coupé (2 doors)
-4 Seats
-Dassault Group heritage (Aerospace)
-French GT cars heritage
Starting from here, we explored the Dassault heritage with moodboards:

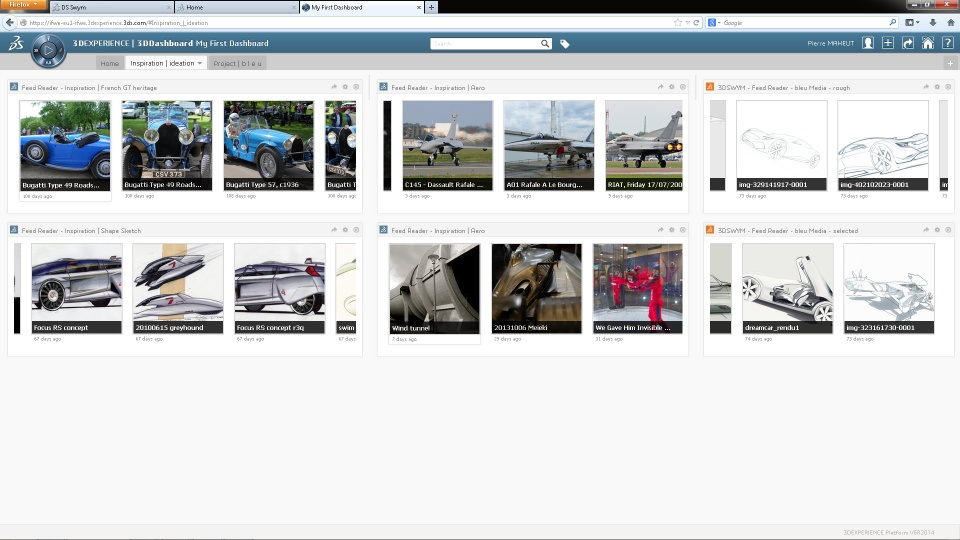

Using 3D Dashboard it is easy to gather all those information:
Based on that, starting to explore with abstract inspiration sketch, speedforms closer to spaceship than realistic cars with 4 wheels:

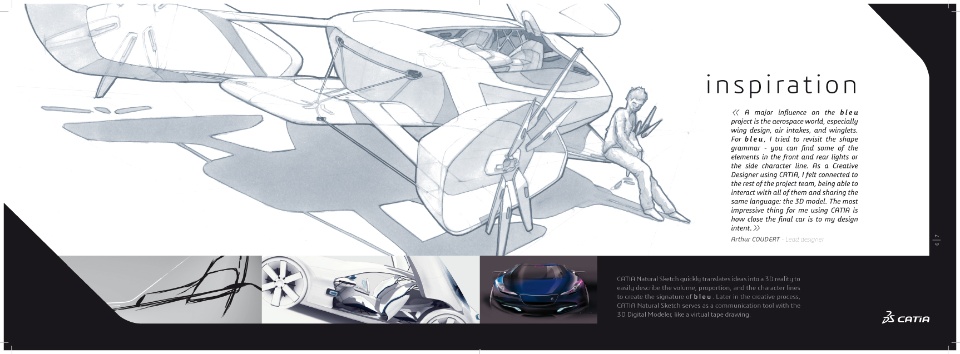

You can find direct connection between the illustration found in aerospace industry & exploratory sketches:
First key sketches start to emerge along the design reviews:
Combining technics and view angles:
Profile - Traditionnal Markers :
3/4 Front - Pencil with few digital modification:
3/4 Rear - Handmade sketch with digital coloring:
3D Skeching

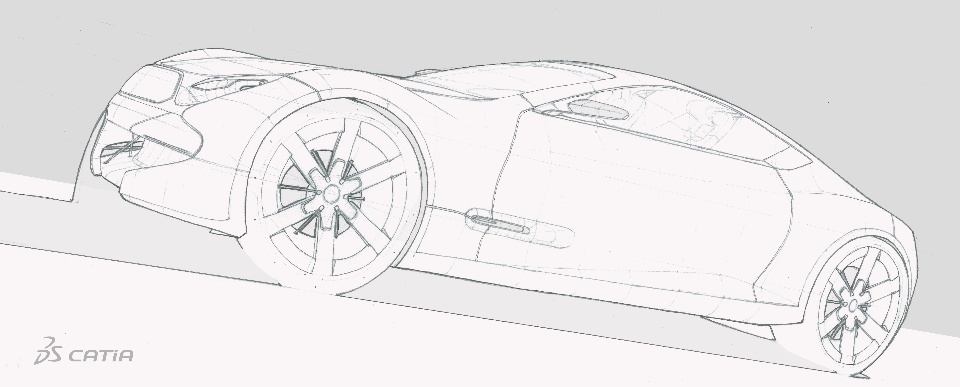

Also combining CATIA Natural Sketch, 3D Sketch:
Here is a tutorial video showing all the process:
Futher in the process after generating dozens of sketches and several design reviews, team converging on 4 Key sketches:
Based on this 2D Key Sketches, we will add more detain and precision using 3D Sketching capabilities directly in CATIA Natural Sketch:
Video:
Using CATIA Natural Sketch, creative designers can:
- Express & communicate creativity within 3D Sketch
- Transform your 2D idea into a 3D reality
- Explore design alternatives & details by sketching on 3D
Having this 3D Canvas we can go further in concept design ... but that's will next topic.
If you have any questions, comments don't hesitate to share it with the community !
Cheers,
Pierre
| | |
