You will find below an overview of the key new additional values provided by the 3DEXPERIENCE platform and all 3DS Brands roles and apps (ENOVIA; CATIA; DELMIA; SIMULIA; SOLIDWORKS) delivered in the 3DEXPERIENCE platform R2019x FD02 on the cloud.

3DEXPERIENCE platform core web apps

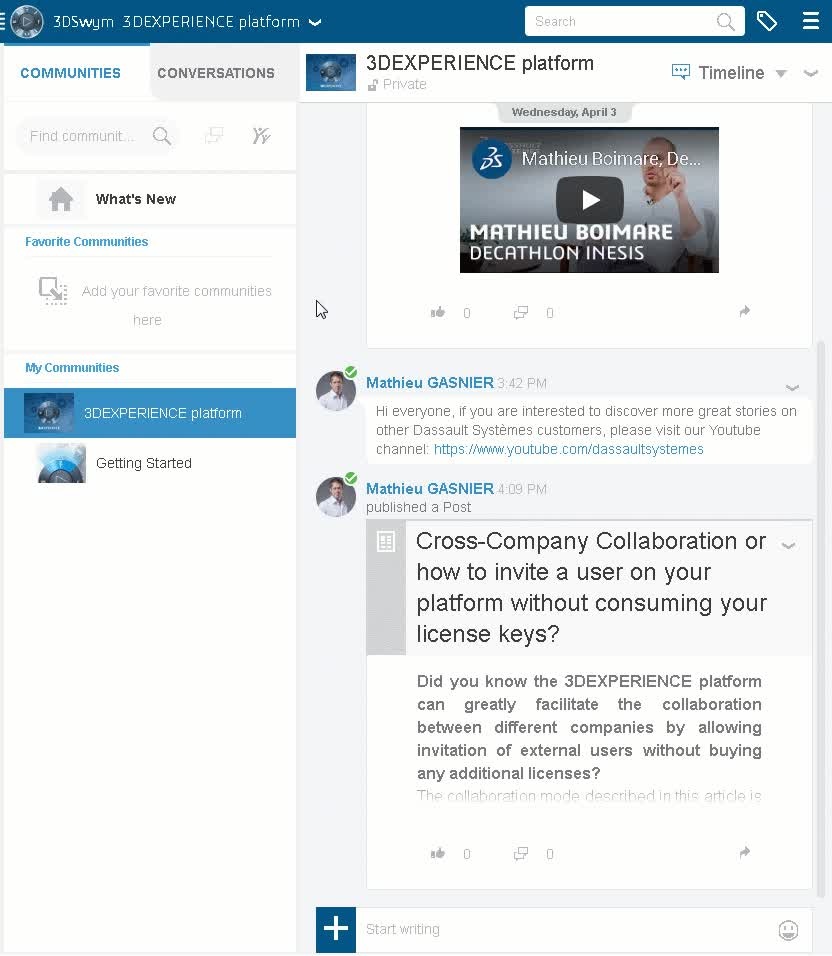

3DSwym enhancements

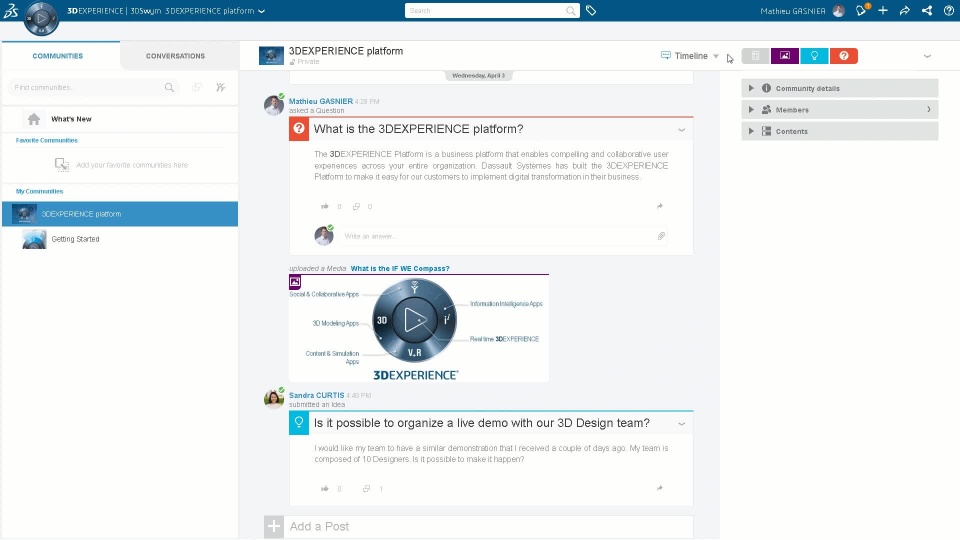

3DSwym has been redesigned and provide now additional user interaction features. Communities activity feed has been reshaped and display now, by default, a Timeline view (more recent activities are at the bottom). You can change the view at the top and choose the Content view in order to display a "blog-type" view by hiding the Message* content types.

*Message is a new type of 3DSwym content introduced in this version. See more information below.

Filter the timeline by content type (Post, Media, Ideas, Questions, Wiki Page, Survey) and their related activities.

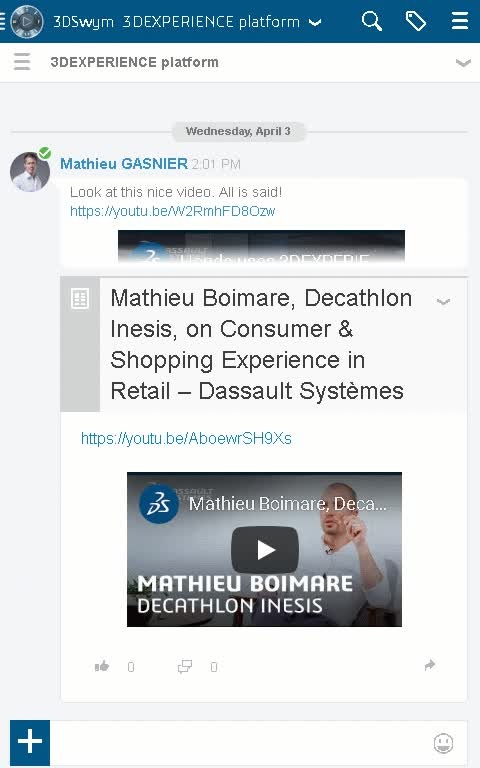

Youtube video are now directly embedded into any 3DSwym content. So, you can now preview and play your Youtube videos from 3DSwym.

Tips: Make sure to copy the Share Video link available below each Youtube video. Correct format is https://youtu.be/... If you copy/paste the URL from your browser address bar, the URL preview in 3DSwym will not work

You can now publish Message. This new type of 3DSwym content is available to all 3DSwym users. A Message is a short publication using simple formatting options and emojis (to share your emotions)

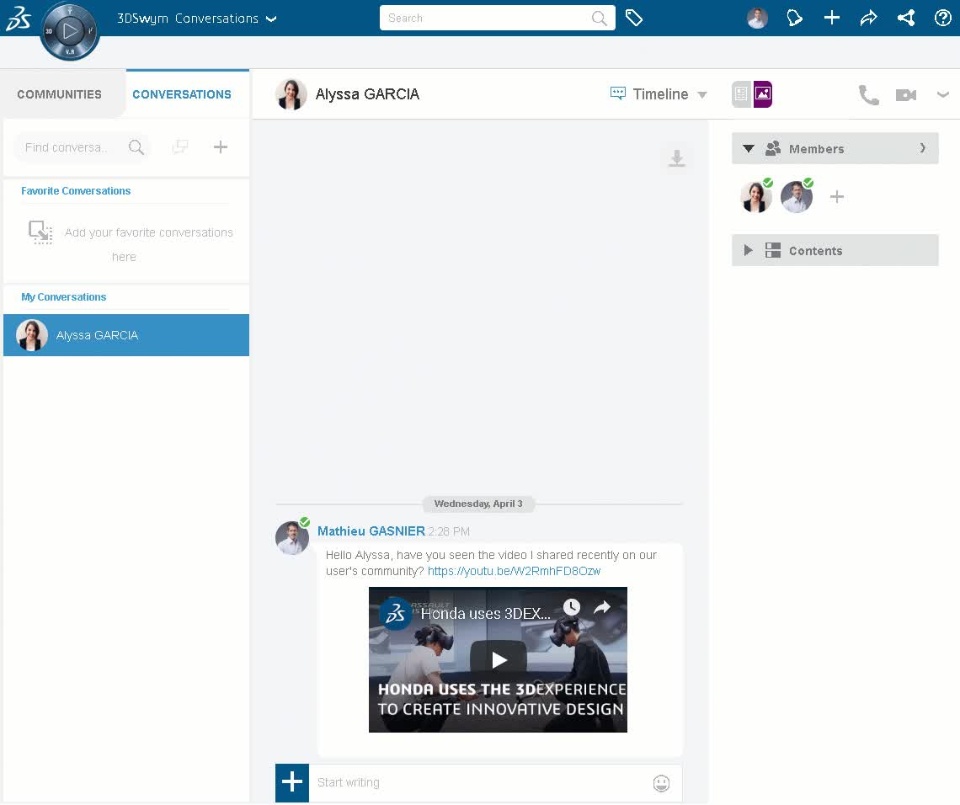

Private conversations have been enhanced as you can now create a private chat outside communities with up to 9 members. Conversations are now enriched with the ability to share media, publish posts and starting audio & video calls. All these new features are web based without any software download nor installation. See below an overall presentation of these enhancements

3DDrive enhancements

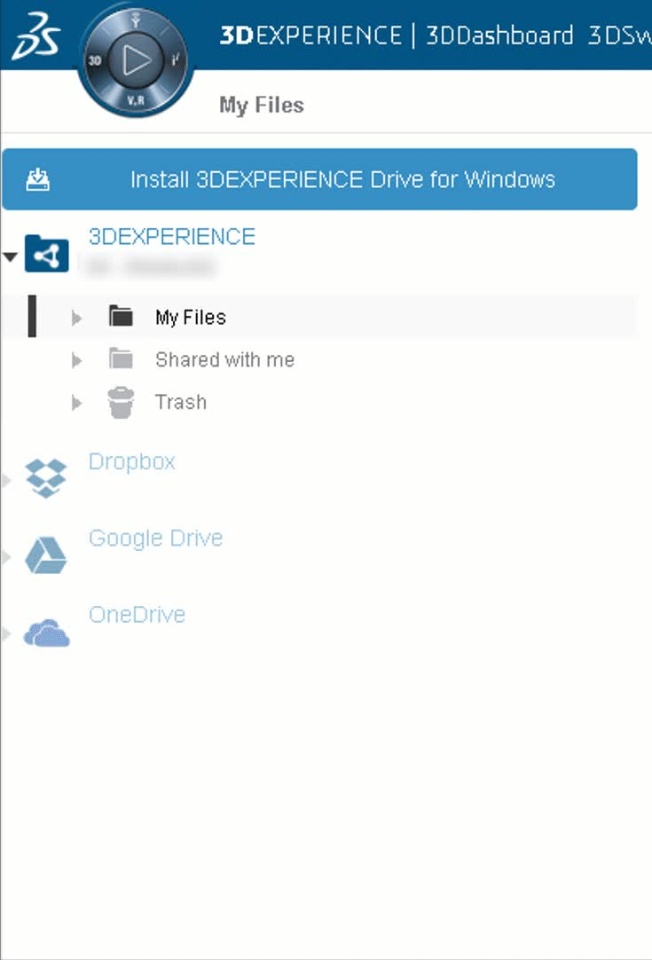

Set up your OneDrive drive. Using OneDrive from Microsoft? Know that you can now set it up within the platform on your 3DDrive to centralize all your drives (Dropbox, Google Drive, Microsoft OneDrive).

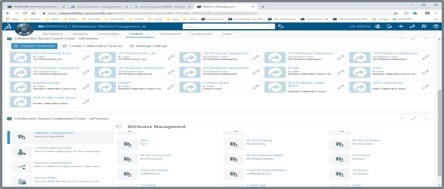

Platform Management enhancements

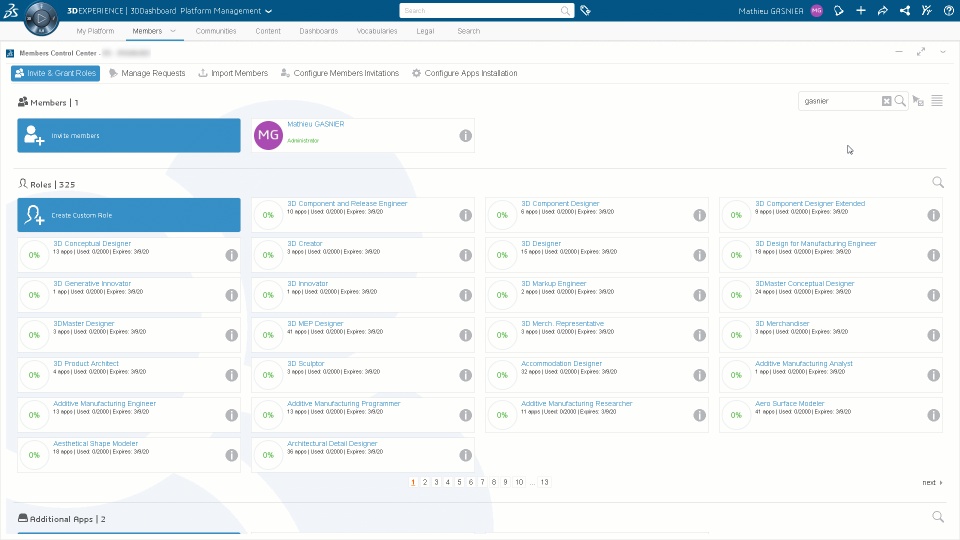

In cases Roles deployed are based on Credits or Tokens, a new section is available in Members tab of Platform Management dashboard. This section shows the amount of Credits or Tokens (remaining vs right). These types of Roles based on either credits or tokens are mainly Roles from SIMULIA & 3DEXCITE.

3DNotification enhancements

For notifications sent to many users with actions required, status will now be updated for all users as soon as the required action is performed. For instance, if I send a community membership request, all community owners will be notified. When an owner answers my request, all other owners will be notified of the action performed.

3DEXPERIENCE ENOVIA on the Cloud

New Apps: ENOVIA Issue Management and ENOVIA Issue 3D Review

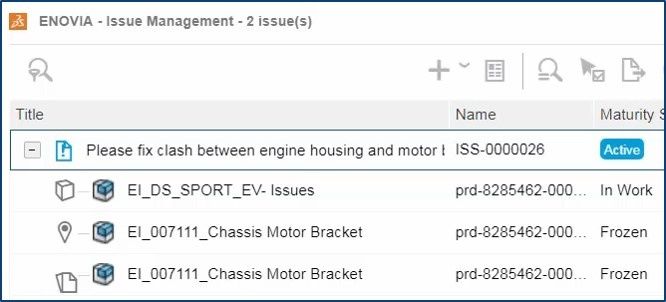

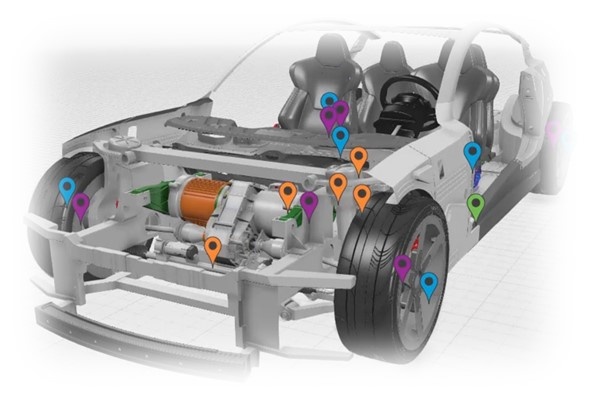

Create, identify and visually analyze issues to facilitate early discovery of problems enhancing quality and improving productivity

Capture: Create & assign issues directly from 3D
Organize: Prioritize your team's work with full visibility
Review & Validate: Access up-to-date 3D to Review & Validate resolution
3D Tracking: Track issue resolution progress directly in 3D

Enhanced App: 3DSpace

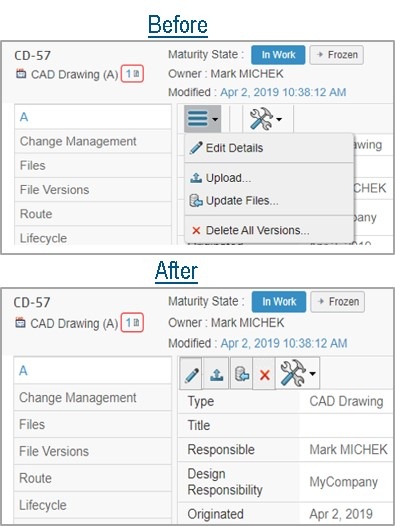

Reduce clicks by moving the commands under the actions menu, to the page toolbar

• Toolbar UI Changes – Can be applied with a new setting for specific BPS menus
• New setting has been applied to documents and projects
• When the setting is applied the commands under the “actions” menu are stacked horizontally on the toolbar thus avoiding a click to navigate the commands under the menu

Tips: This feature can be turned off with the following stacking commands horizontally is achieved by a setting on menu, there setting can be overridden by passing “showmenuinToolbar” true in URL. “Horizontal ToolBar” is the setting to be applied on any menu which we want to stack on toolbar.

Enhanced App: ENOVIA 3D Navigate

Support for side panels saves time  with less clicks, versus working in a single window panel

• This side panel function will enrich customer’s experience by offering 2 panels and each one contains some information or operations.

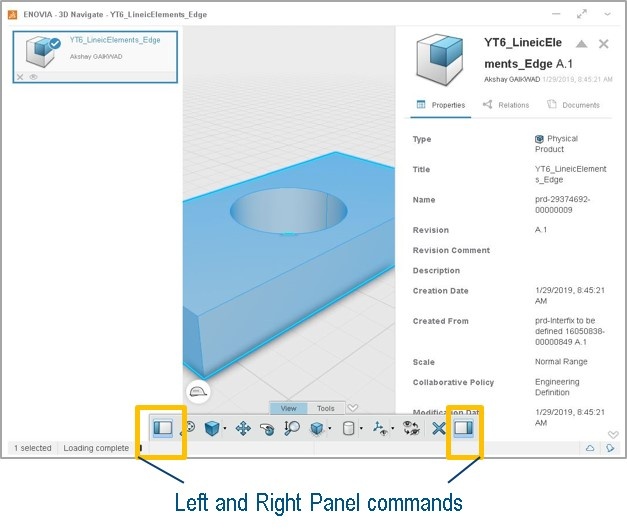

• This feature has been implemented in 3D navigate as shown. Left panel is the root, right panel displays properties

When displaying a large data set, loading boxes serve as geometry placeholders to visually determine how much geometry remains to be processed by the 3D viewer

• Loading Boxes are displayed in orange  and will automatically display after 15 seconds (default value)
• Widget preference settings control loading box display on or off and loading box display delay time

Enhanced App: ENOVIA Product Structure Editor

Enhanced Expand to not include 3D Representation

• Faster structure expands without showing needless items
• Individual nodes can be expanded to the 3D Representations

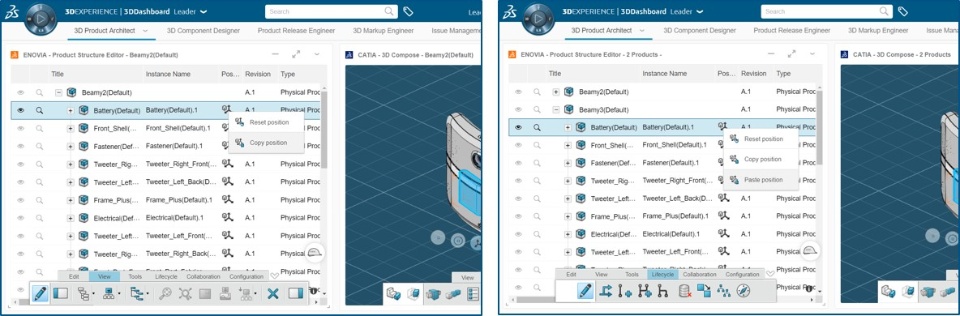

3D Positional Matrix can now be Copied and Pasted to other Items

• Copy position of a given component within a structure
• Paste that value into another structure where the same component may be used

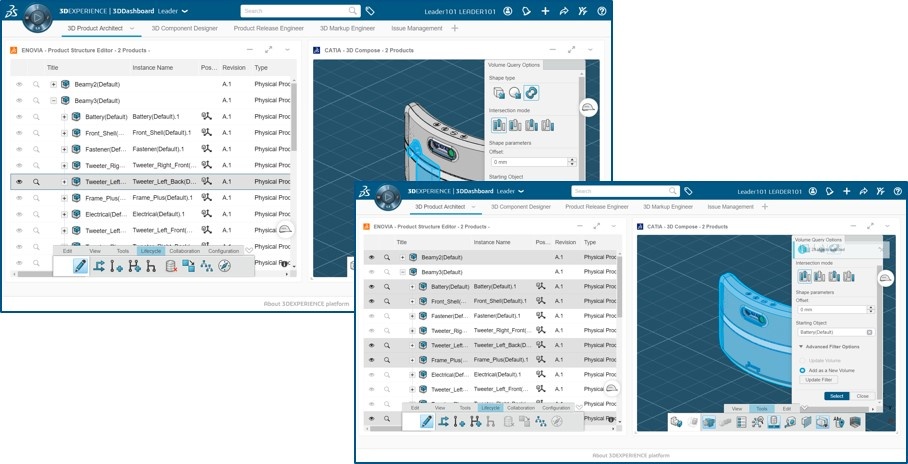

Volume Query Enhancement – Proximity improvement

Selecting a single component will  use its bounding box to determine other items in the proximity

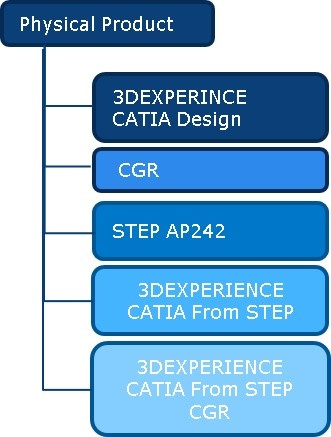

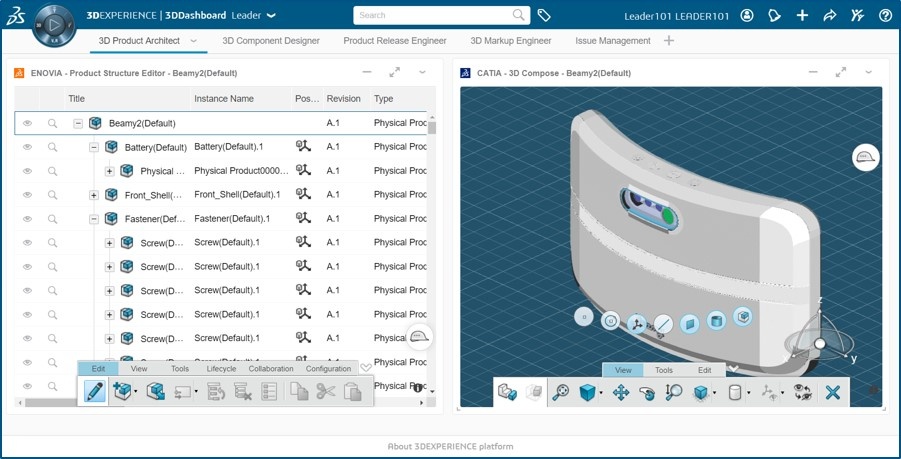

STEP AP242 can now be visualized within Product Structure Editor

• STEP AP 242 may be a  long term archival format vs. the native 3D data
• 3D Visualization of the STEP data is seen in 3D Compose

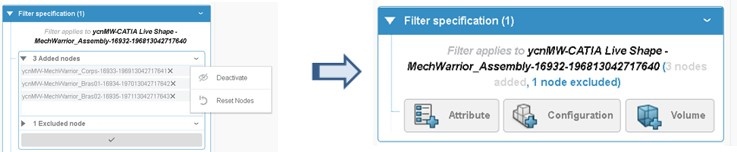

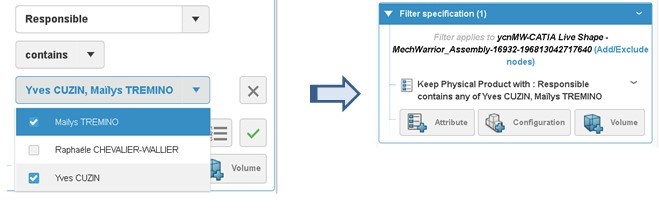

Support multi attribute value selections for filtering and context management criteria enhancements

Multi Attribute Value Selection

• Supports Shift and Ctrl keys to define a multi-selection

Context Management Criteria Menu

• New menu command to “Activate / Deactivate” criteria nodes
• New Menu command “Reset Nodes”  to clear all defined nodes

Enhanced App: PLM Collaborative Services for CATIA V5

Automation of overwrite during download by Providing faster throughput with less interaction with user dialogs

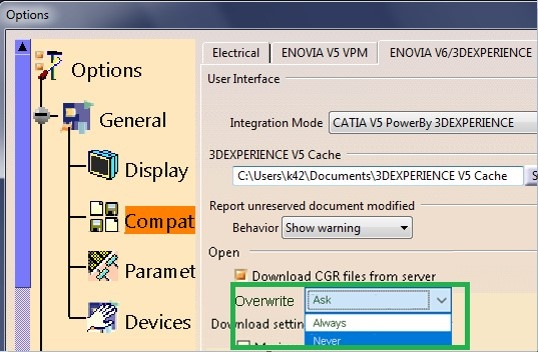

• Default can be changed from “Ask” or “Never” to “Always”
• Most current data will always be used from the server
• Existing data will be overwritten automatically when using “Always”

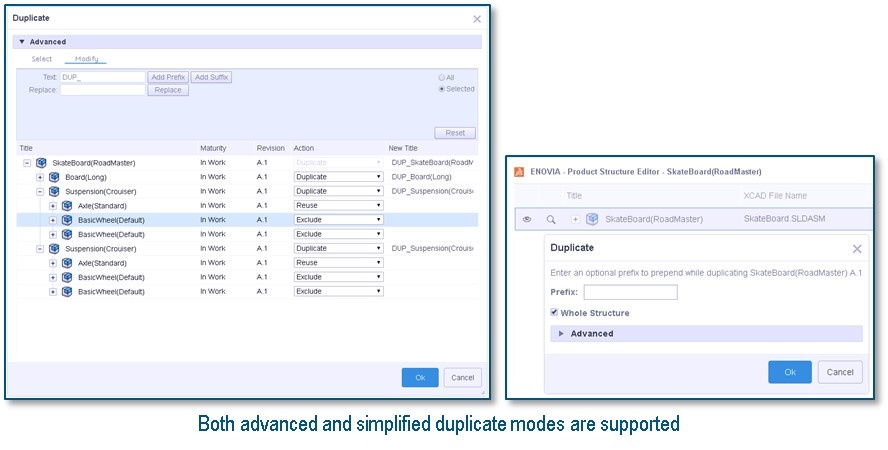

Leverage Carry Over by using Duplicate directly from within CATIA V5

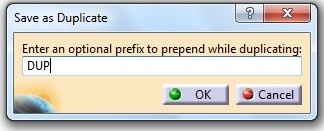

• Save as Duplicate will save existing designs as new
• Inclusion of prefix to temporarily name the new components
• The designs will be seen as new within the Save dialog
• Right Mouse Button in Save dialog will allow rename of files
• Right Mouse Button in Save dialog will allow top Parent to be duplicated

More immersive capabilities enables flexibility within CATIA V5

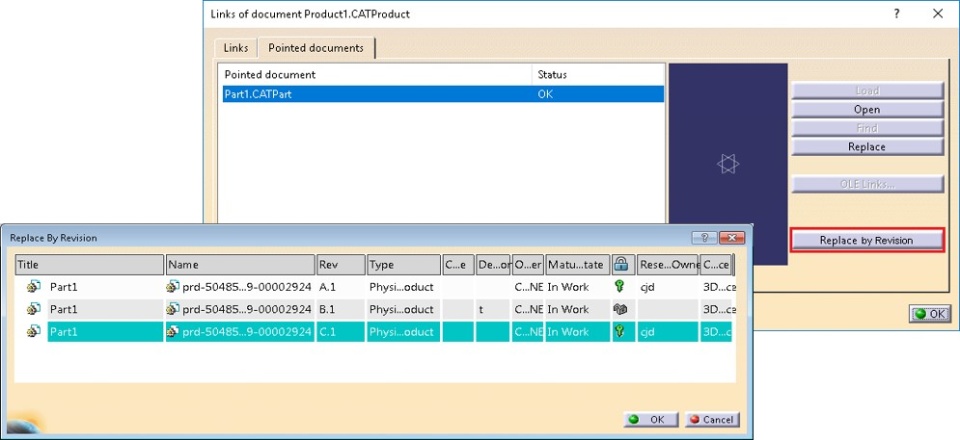

• Replace by Revision of the pointed document
• Available replacements revisions are displayed
• Replacement Revision is updated in CATIA V5

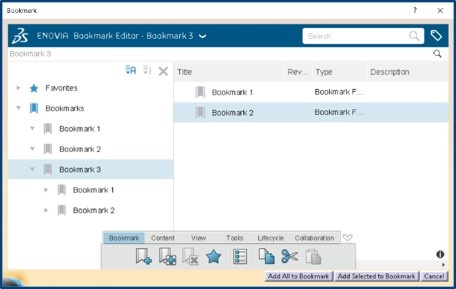

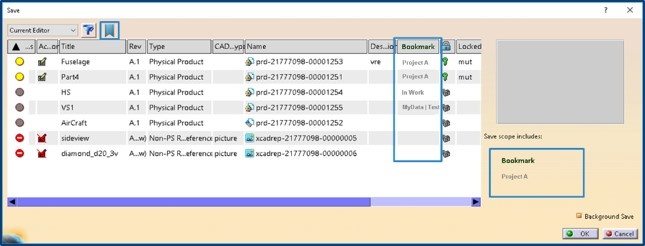

CATIA V5 users can see and select desired bookmarks for organization of designs

A bookmark column is added to the save dialog

New bookmarks can be selected which will be appended to the existing list

The Bookmark application can be launched within CATIA V5 for additional operations

• Add All to Bookmark
• Add Selected to Bookmark

Enhanced App: PLM Collaboration Services for SOLIDWORKS

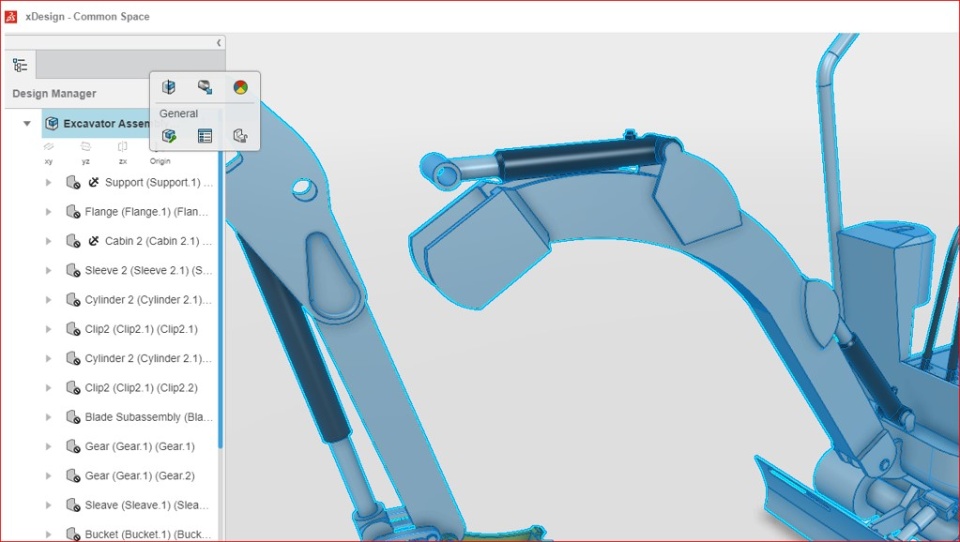

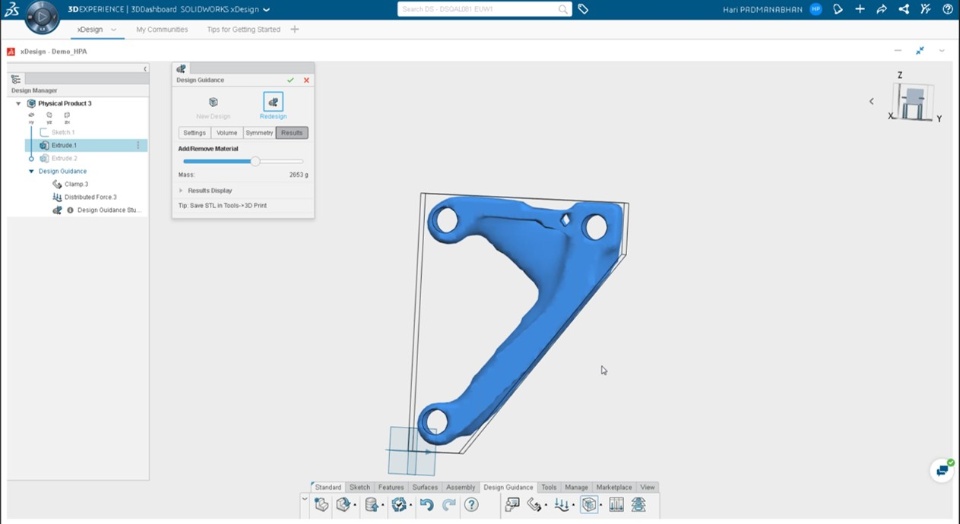

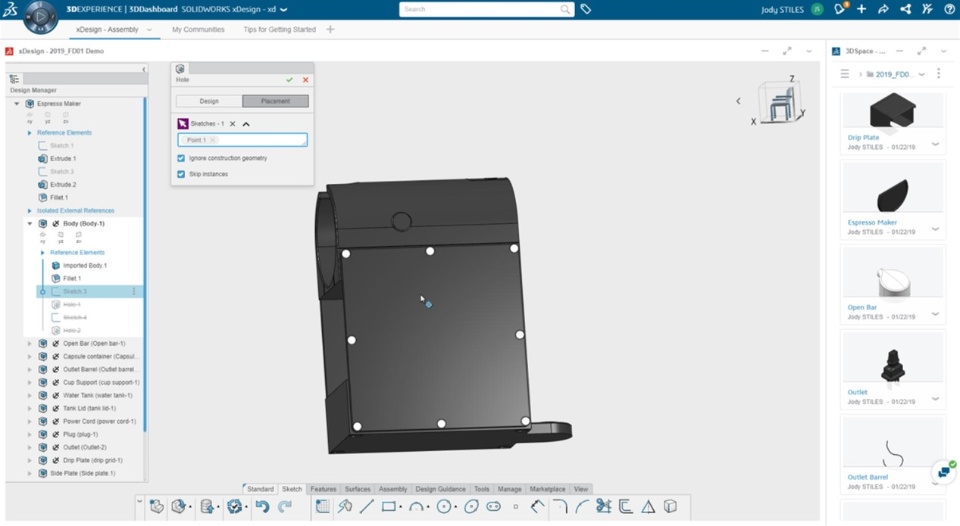

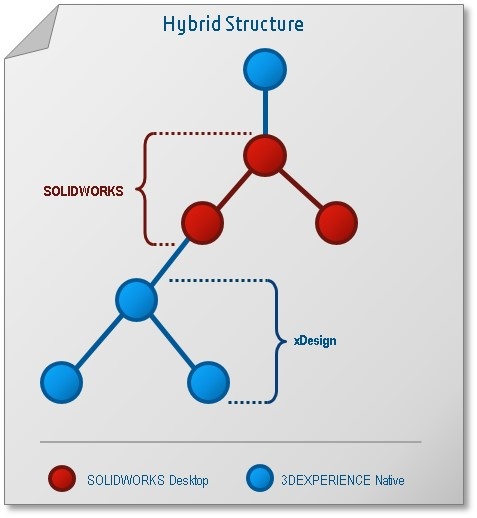

Allow co-design between SOLIDWORKS Desktop and xDesign/xShape users

The ability for SOLIDWORKS Desktop to open (read-only) any type of 3DEXPERIENCE native data, such as:

• xDesign
• xShape

The ability to insert 3DEXPERIENCE native parts and subassemblies into a SOLIDWORKS Desktop assembly

This capability require users to have 3D Product Architect (PAU) license assigned to them.

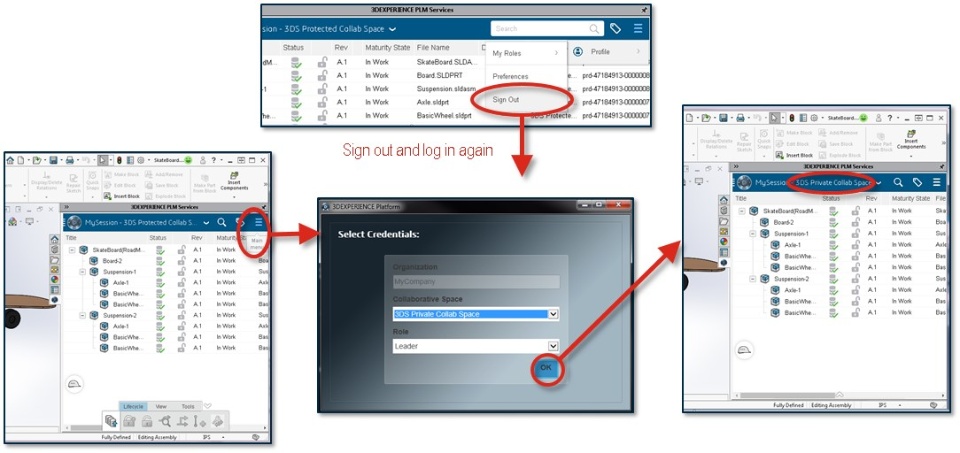

Switch active collaborative space in the SOLIDWORKS session allowing users better control of access to created designs

A new command to sign out and sign in again is added inside SOLIDWORKS desktop to allow the switching of the security context

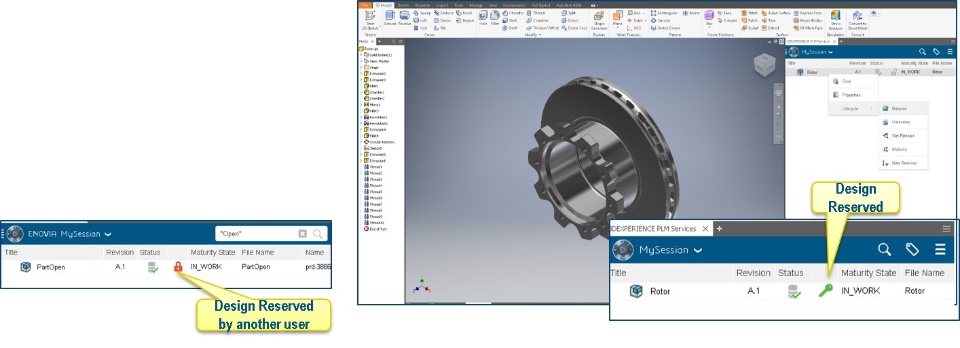

Support the ability to un-reserve designs during save to the platform

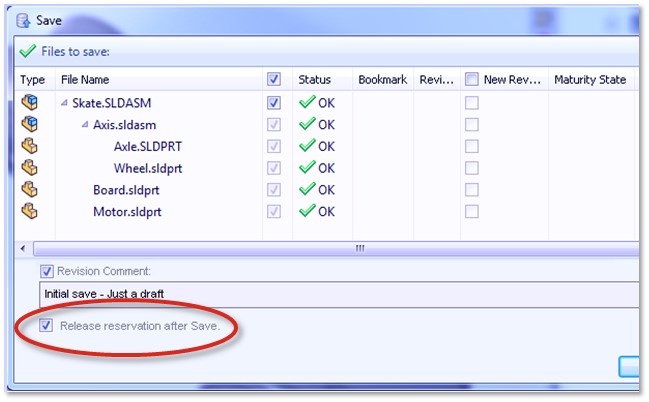

The Save (to platform) dialog box is extended with an option to remove the reservation of the saved designs

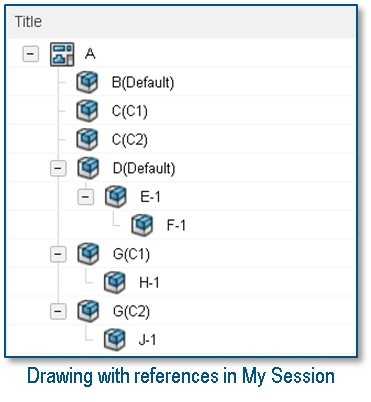

Enhanced tree view in the My Session task pane window making it easier to see if drawings needs to be regenerated after a design change

• The tree will include parts and assemblies referenced by drawings.
• The tree will include in-context references (part to assembly/part references).
• Internal / virtual components will be displayed with a special icon in the tree ().

Get Revision command split into two commands

In releases up to R2019x FD01 we had a command called “Get Revision” which would replace the revision on the local disk with the selected new revision regardless if it was the same revision or another revision. This command is now split into two commands:

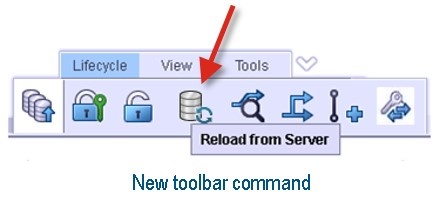

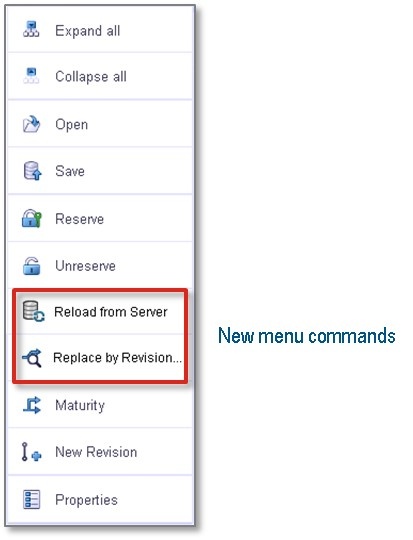

• Reload from Server – retrieve the latest iteration of the already cached revision
• Replace by Revision – replace the cached revision with another revision

Lifecycle Duplicate command for SOLIDWORKS Desktop designs by simplifying the reuse of designs

The Duplicate command in the Collaborative Lifecycle widget will now support SOLIDWORKS Desktop assemblies, sub-assemblies, and parts as long as all of them contain only one configuration

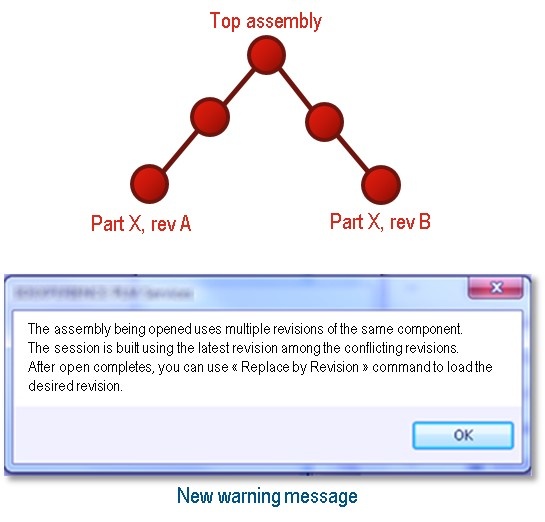

Warn about conflicting referenced revisions by reducing the risk of design mistakes

It’s possible to create an assembly that references two different revisions of the same part using the platform. Such an assembly cannot be opened in SOLIDWORKS Desktop and we will now warn the user about this situation.

Enhanced App: ENOVIA Engineering Release

Enhance the Engineering Item definition with specification definition

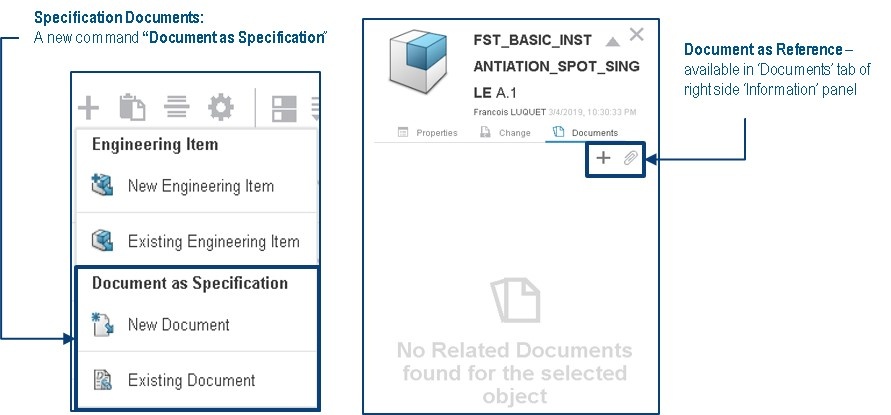

Documents can be attached as specifications to an engineering item (in addition to the existing reference link)

• A new command ‘Document as Specification’  is available for an Engineering Item to create/attach  specification document
• The lifecycle promotion of the engineering item depends on the lifecycle state of the related specification document
• Reference Document can now be attached to an Engineering Item from ‘Documents’ tab in Information panel of any Engineering Item

Control the “Specification” through a rule

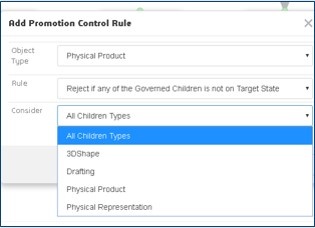

New rule on maturity change of an Engineering Item, which evaluates the current state of Specification Document before executing the maturity transition of the engineering item

• For a Specification Document, Administrator can add new rule for maturity change, for example, to reject a change in maturity of an engineering item if the related Specification Document is not already in the target state
• This rule is embodied in the existing option to consider ‘All Children Types

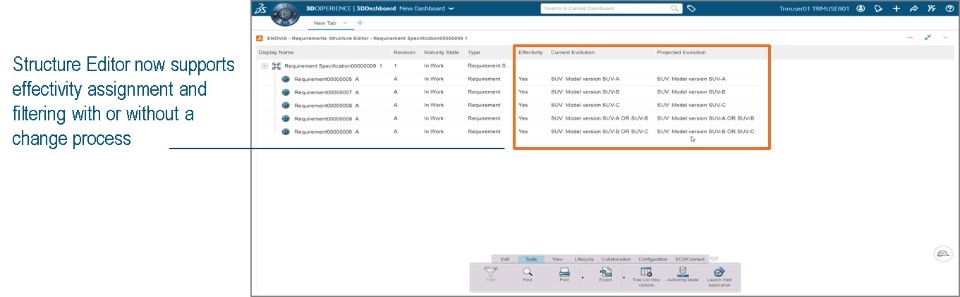

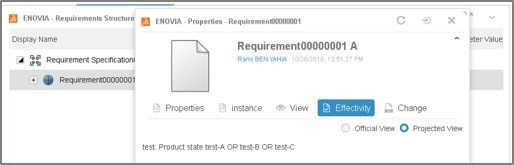

Enhanced visibility and editing of effectivity information

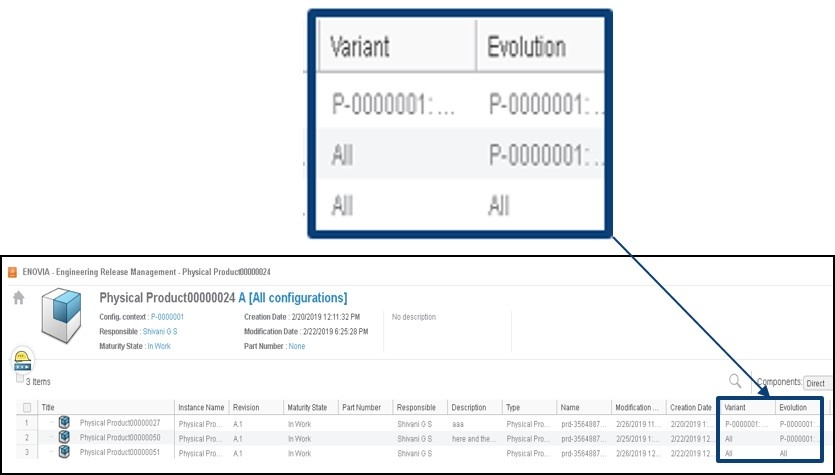

Variant and evolution attributes are directly visible in the “datagrid” view of the widget

• Two new columns are displayed to easily retrieve and visualize information about variant and evolution effectivities of all the Engineering items listed
• Items which do not have specific effectivity assigned, will be displayed as valid for ‘All’ effectivities
• Note that you can edit these effectivities from this view by double click on each of them
• Two new columns are displayed to easily retrieve and visualize information about variant and evolution effectivities of all the Engineering items listed
• Items which do not have specific effectivity assigned, will be displayed as valid for ‘All’ effectivities
• Note that you can edit these effectivities from this view by double click on each of them

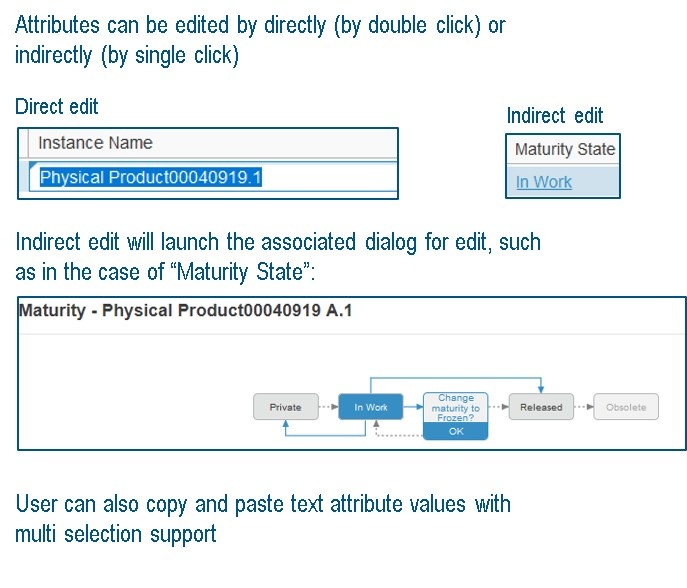

Enable attribute editing from a table view

Direct edit of attributes: Title / instance name / Description

• Double click on these attributes will  enable an immediate edit
• User can also copy and paste text attribute values with multi selection support

Other attributes:

• Indirect edit of attributes: Revision / Maturity State / Part Number / Responsible:
• Single Click on these attributes will launch respective commands. .
• Keyboard shortcuts such as Ctrl+C and Ctrl+V (for copy and paste) are now supported to copy and paste the values from Title, Instance Name and Description fields along with multi-selection support

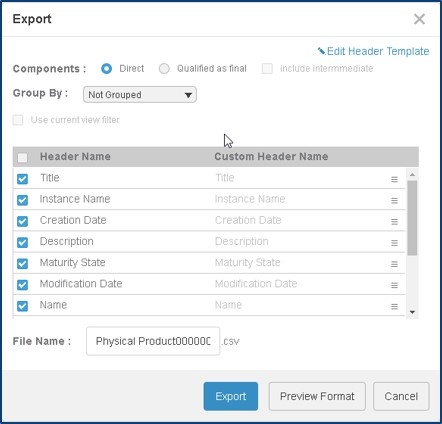

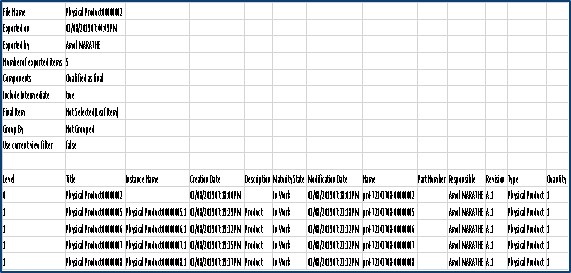

Enhanced Export Report Capabilities

New preferences are available in both: Widget, report. To enable a generation of various reports


Reports can be based on: leaf, qualified as final and/or intermediate  engineering items

• Leaf engineering item can be defined also through a custom attribute, which can be taken into account during the report generation

Report header and column attributes can be defined to fit the user needs

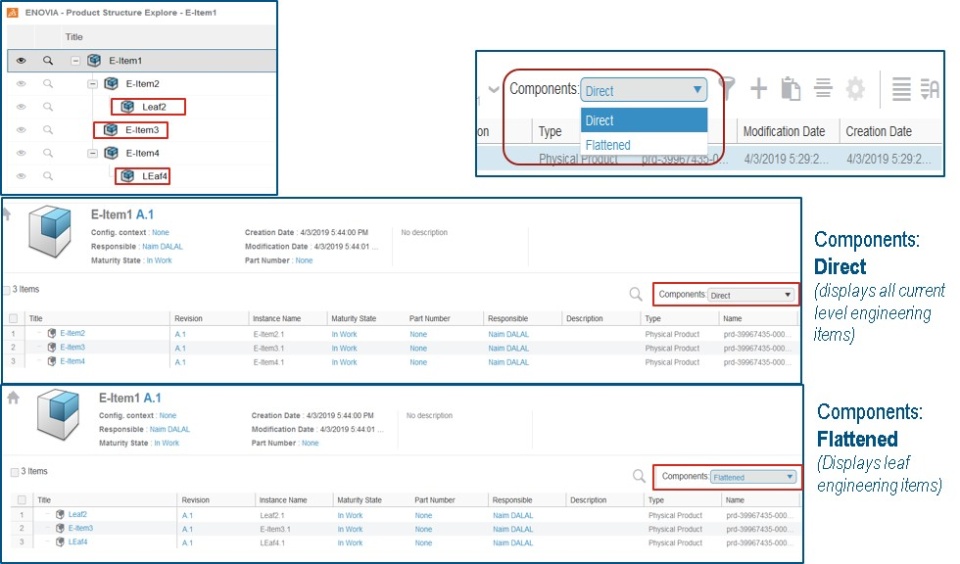

Quick view of the engineering definition that answers user needs

User can define the desired view of the “Engineering Definition” based on the engineering item:
Direct:

• The engineering definition displays all the engineering items in the current level (no filtering)

Flattened:

• The engineering definition displays only engineering items available in the “Leaf” level of the structure

Enhanced App: ENOVIA Connected Software

Federate Software code and build artifacts to 3DEXPERIENCE by connecting software content to the enterprise platform to release and manage a holistic, hardware/software definition

Enforce static reference of external SCM content prior to maturing Software Item to  state, to ensure data integrity.

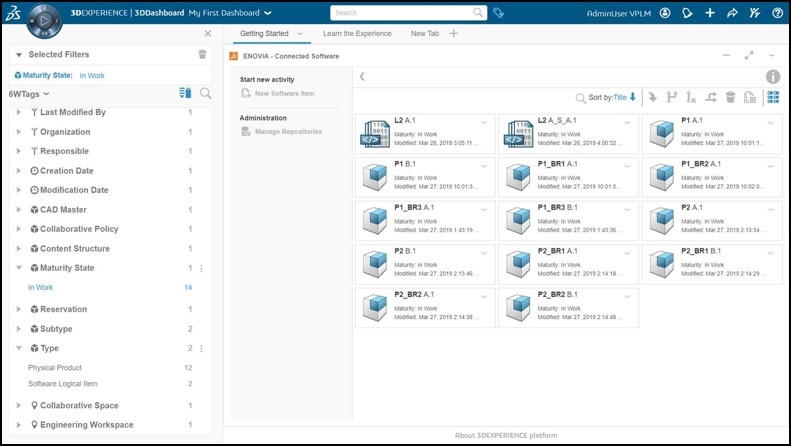

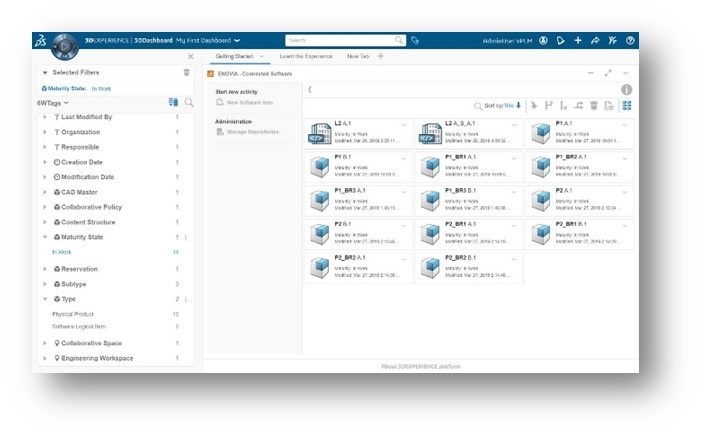

Enhanced indexing, searching, and 6WTag for SW item.

• Use Item Address, Version Address and name of associated SCM Repository to search SW Items
• 6WTags panel can be user to filter SW items
• Search in Current Dashboard to filter objects/files on search string
• In Page Filtering provide filtering by values that are not available through the 6WTags panel

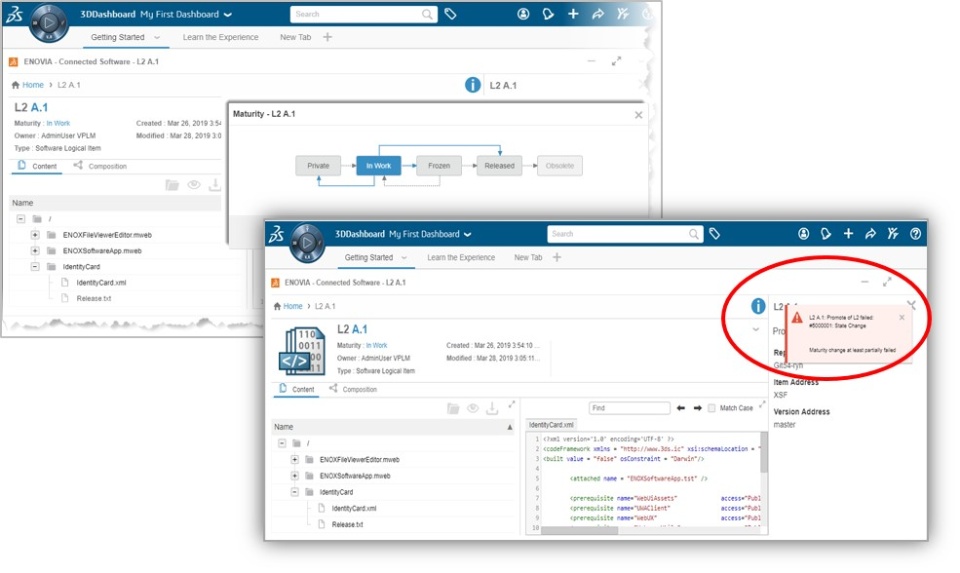

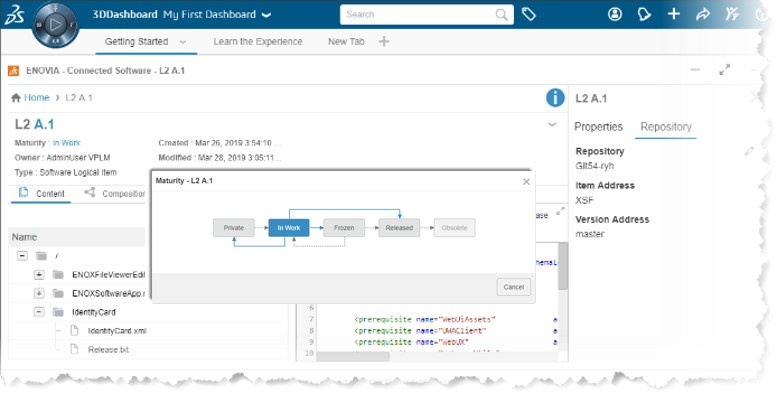

Ensure SW Item maturity promotion refers to static data in SCM by controlling the ability to modify the connection to the SCM data once the Software Item reaches the Frozen and Released states

Control the ability to modify the connection to the SCM data once the Software Item reaches the Frozen and Released states, by preventing promotion to these states unless reference is to a static version/tag.

• Once SW item is in Frozen/Released state the objects and their data are expected to be “fixed”.

Increased search performance and flexibility

Enhanced indexing, searching, and 6WTag for SW item.

• Use Item Address, Version Address and name of associated SCM Repository to search SW Items
• 6WTags panel can be user to filter SW items
• Search in Current Dashboard to filter objects/files on search string
• In Page Filtering provide filtering by values that are not available through the 6WTags panel

Enhanced App: Collaboration and Approval

Provide more flexibility in Change Order definition

Change action creation:

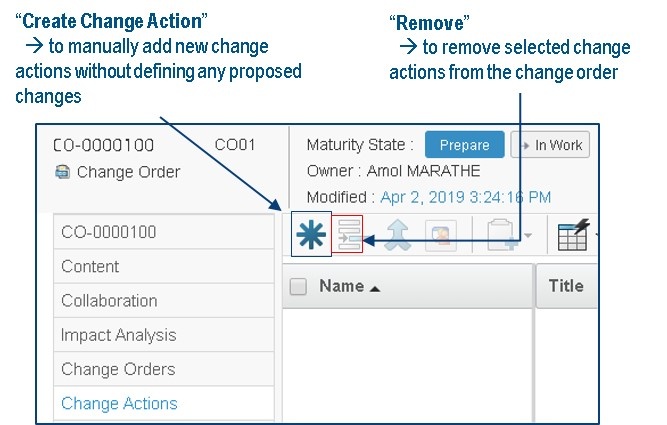

• User can manually create a change action under an existing change order (CO) even when the proposed changes are not yet defined
  • This allows the assignees to define the proposed changes later in the process
• Change actions can also be removed from the Change Order

Change action promotion:

• Change Orders with “Fast track” policy, can be promote from “Prepare” to “In Work” if they have Change actions without any “proposed changes”
  • Yet, at least one change action must be defined under the Change Order

Notifications:

• Notifications are sent to assignees when a rejection (demote) of a Change Order or Change Action from ‘In Work’ is done
• User is notified that a validation is needed when trying to promote a change action from “In Work” to “In Approval” in case this change action has no “Proposed” or “Realized” changes

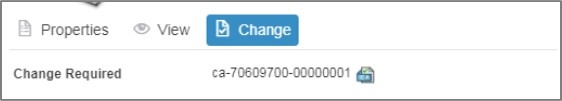

Provide change flexibility by extending the Change definition to include external objects

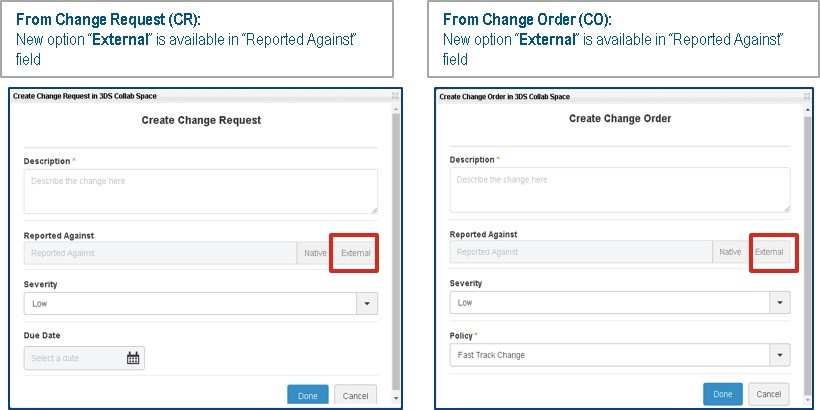

It is now possible to define an external item as ‘Reported Against’ while creating a new change request (CR) or change order (CO)

Change Object Dependency and Co-dependency by coordinating and tracking cross-functional change dependencies

The promotion of Change objects (CA/CO) that have dependencies between them, is restricted according to:

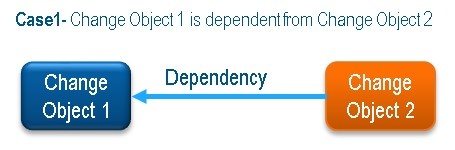

• Dependency:
  • Change Object 1 cannot be promoted to In-Approval/Approved before Change Object 2 is at least in Approved state

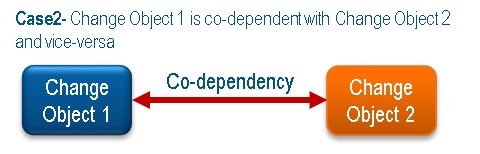

• Co-dependency
  • Either of the Change Objects cannot be promoted to Approved unless the other co-dependant change object is at least in “In Approval” state

Enhanced App: Change Action Management

Easily work on a Change from the web

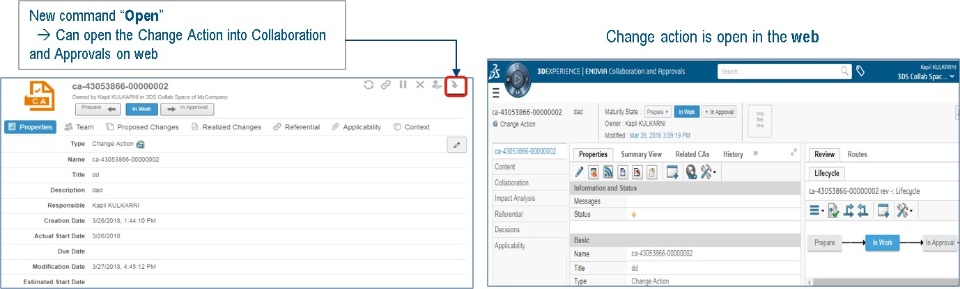

3DEXPERIENCE CATIA users can now open a change action from the native client directly into Collaboration and Approvals web application

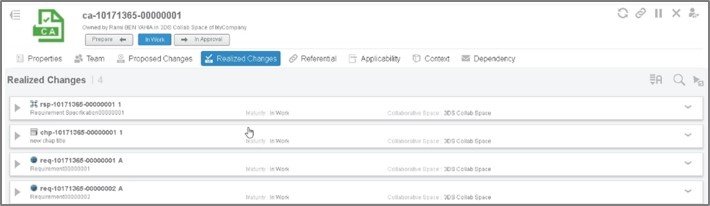

Accelerate work on “Realized Changes” when implementation plans evolve

Why

• Moving “Realized Changes” to another Change Action (CA) is required in cases such as:
  • Fast change tracking of the particular realized change(s)
  • Management of Rejection
  • Faster approval of objects such as Long lead items

How

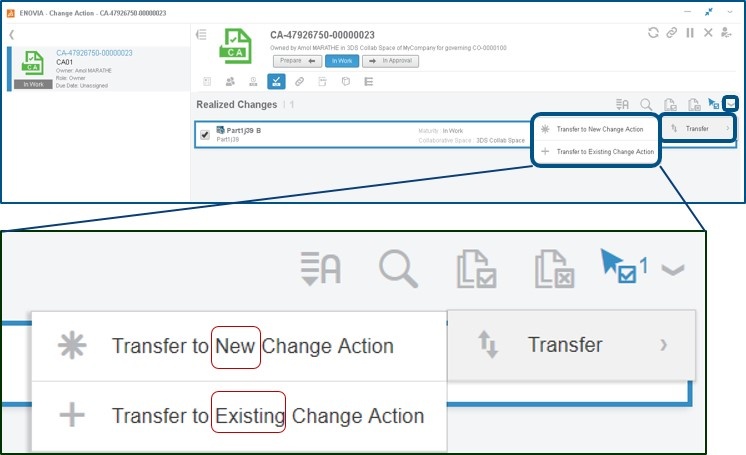

• Move one or more “Realized Changes”  to a new or existing “Change Action”
• Associated activities can also be transferred (optional)

Notes

• This highlight supports both configured and non configured Engineering Items
• Use the “Multi-select” in the “Realized Changes”  to enable the command
• To enable this feature, make sure to disable the setting ‘Change Collaboration for EBOM-Product Structure’ in Collaborative Space Content Configuration Widget

Additional controls to ensure ‘review & approval’ process is not done by the same person

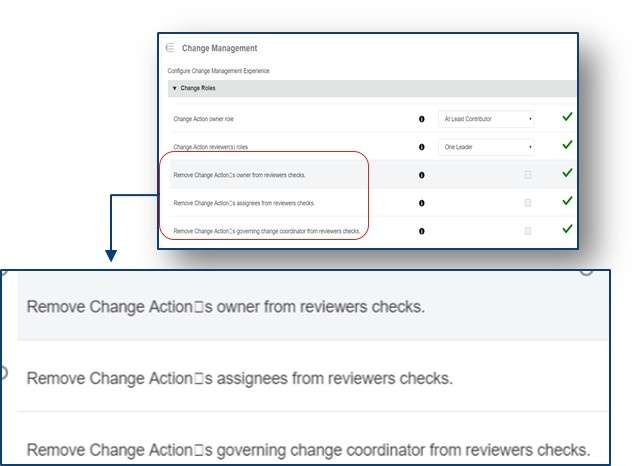

Provide additional system level parameters to enforce the proper set of reviewers are defined:

• Remove Change Action owners from reviewers checks
  • When the parameter unchecked, this means: Do not allow change action owner to be the only reviewer of the change action
  • If checked, the owner cannot be the only reviewer of the change action. If the owner is a reviewer, a secondary reviewer will be required, but it cannot violate any of the other parameters
• Remove Change Action assignees from reviewers checks
  • When the parameter is unchecked, this means: Do not allow change action assignees to be  the only reviewers of the change action
  • If checked, the assignee cannot be the only reviewer of change action. If an assignee is a reviewer, a secondary reviewer will be required, but it cannot violate any of the other parameters. You can have multiple assignees as reviewers.
• Remove Change Action governing change coordinator from reviewers checks
  • When the parameter is unchecked, this means: Do not allow change order coordinators to be  the only reviewers of the change action
  • If checked, the change coordinator from the parent change order (CO) cannot be the only reviewer of the change action

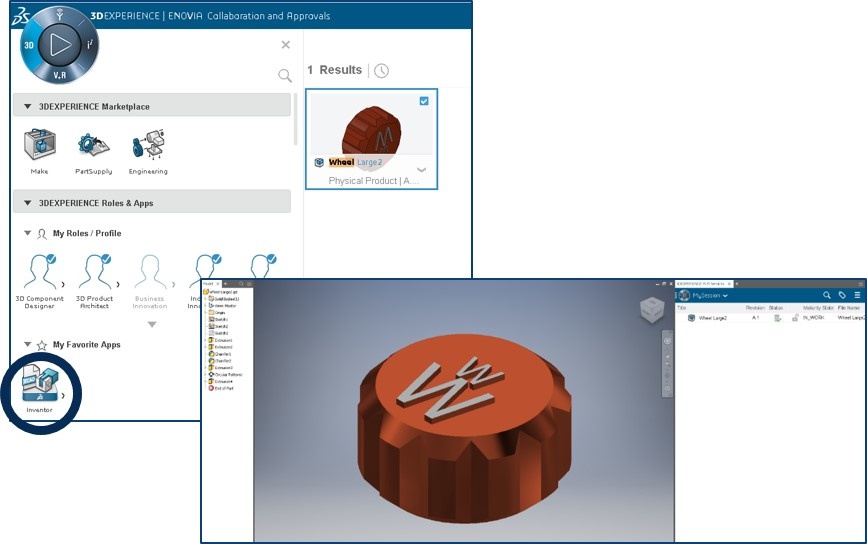

Enhanced App: PLM Collaboration Services for Inventor

Protection from design conflicts

• Data must first be saved into 3DEXPERIENCE
• Available from MY Session
• Multiple selections supported
• Applicability based on user access rules and object maturity state

Convenient access to search and to open designs

Select design(s) for open

• Single or multiple selections

User new Compass command “PLM Collaboration Services for Inventor” to automatically launch Inventor and load design(s) into active session

Search for design(s) using 3DEXPERIENCE Indexed search

Convenient access to tasks from My Session

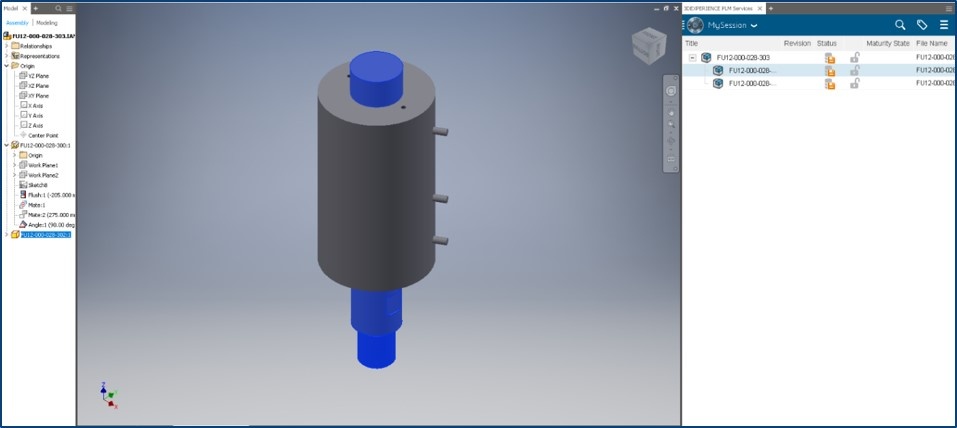

A tree view of the content of inventor active window.

A list of commands, available thru RMB in the tree view and thru the Action Bar

• Expand all (*)
• Collapse all (*)
• Save
• Properties
• Lifecycle
• Maturity, New Revision, Reserve, Unreserve

Table display will have the following columns:

• Title, Revision, Status, Reservation, Maturity State, File Name, Name, Type

Enhanced App: ENOVIA Traceable Requirements Management

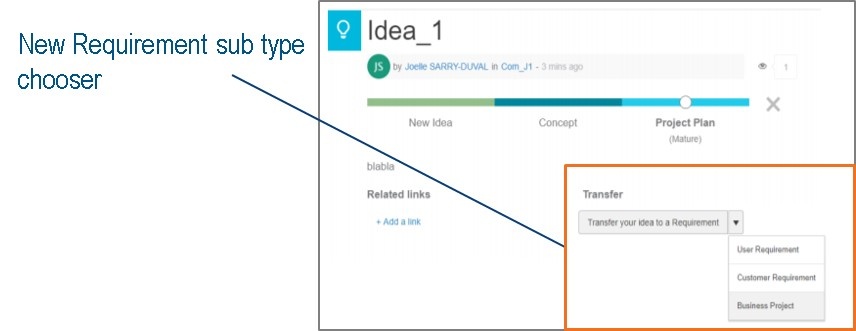

When Ideas in 3DSwym are converted to Requirements, the user can now choose a requirement sub-type to create

Requirements now support  unified change process which ensures consistent change release, governance and  modification tracking.

Requirements Properties Widget now includes “Change” which controls whether the object is change controlled or not.  Work Under CA is displayed after CA assignment

After Work under CA is assigned the modifications are tracked and can be viewed under realized changes.

If CFG is available, Requirement effectivity can be managed under change control

Users can configure and filter a requirement structure without a change process

Enhanced App: ENOVIA Project Management

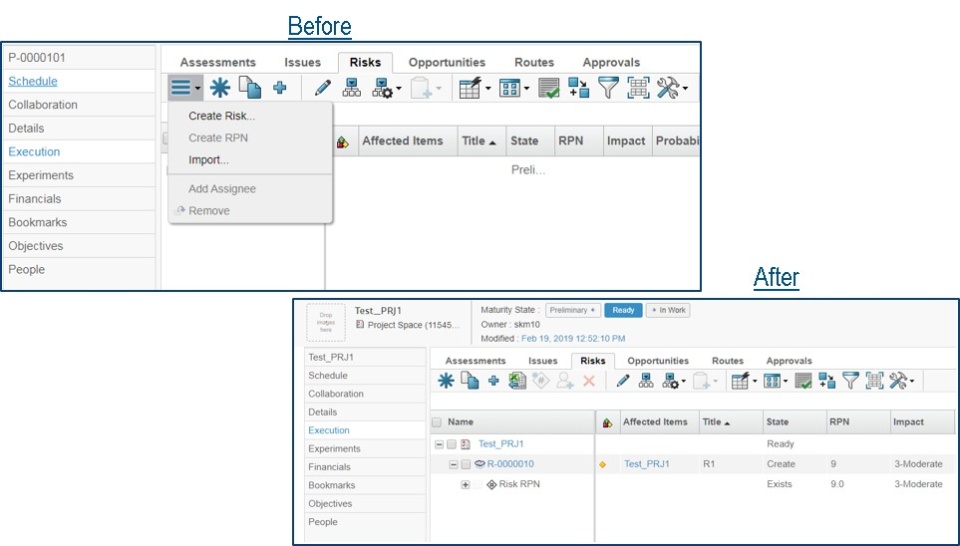

Toolbars, Icons and RMB menus harmonization

Main UX improvements:

• Less Pull-Down Menu
• Less Clicks
• More actions available with Right Mouse Button (RMB)
• More Icons
• More Intuitive UX

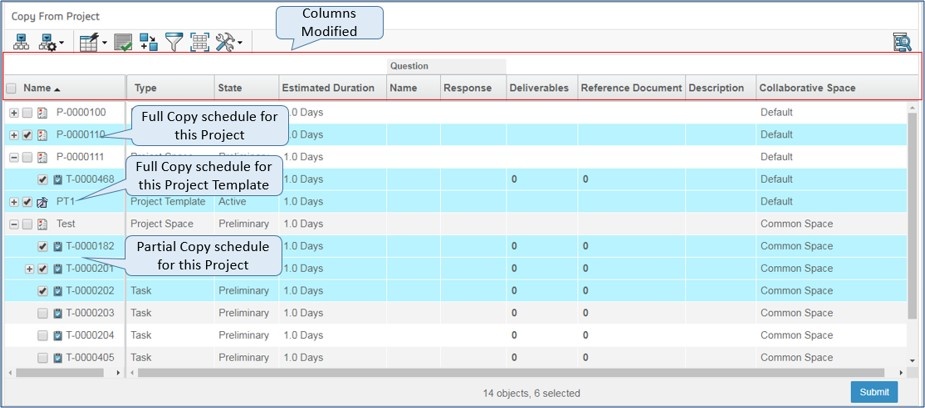

Copy Full or Partial schedules from Multiple Projects

Copy from Project

• Users can now copy the entire Projects, Templates, or even partial Projects, all with the same command.

Enhanced App: ENOVIA Collaborative Tasks

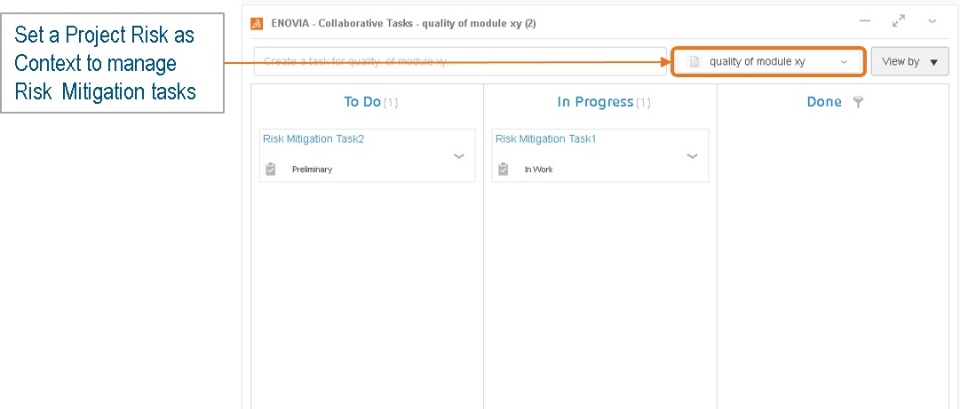

Risk mitigation plan tracking and dashboarding is now supported

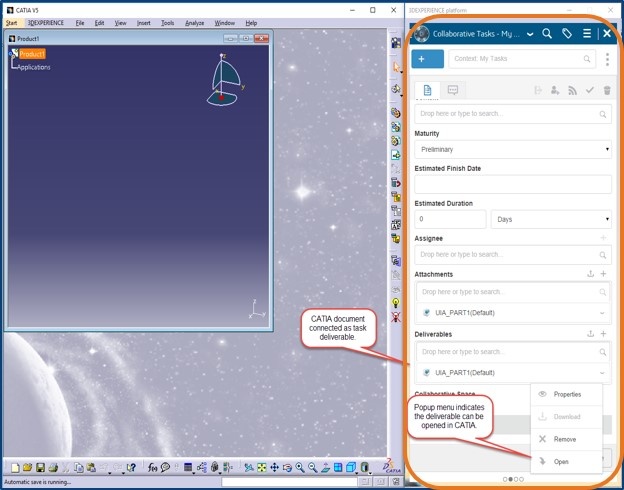

Collaborative Tasks PowerBy AddIn for CATIA V5

Improve designer productivity with in-context task management

• Collaborative Tasks behaves just like it does in the 3DExperience platform.
• Designers can directly Open Task Deliverables in CATIA V5 to work on them.

Enhanced App: ENOVIA 3D Merchandising

Merchandising guides now support local quantity management

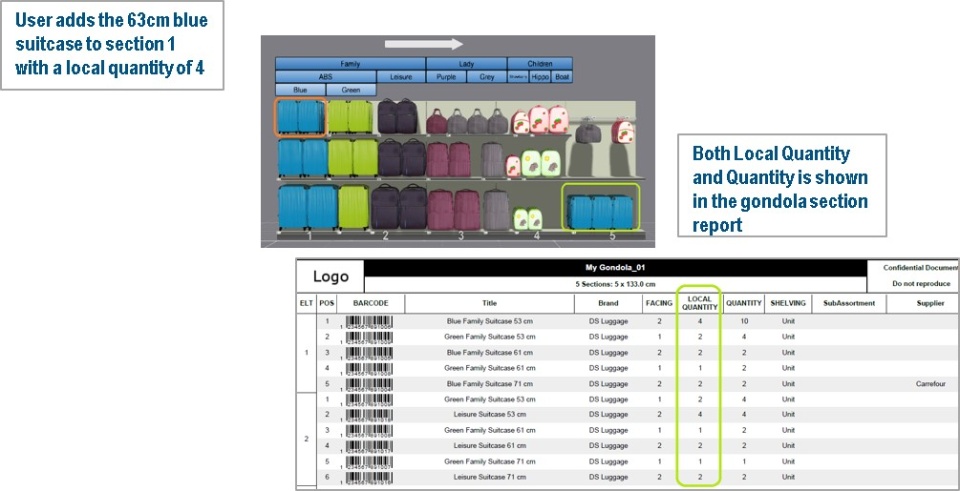

Local Quantity” column is introduced in Gondola and Scene mode

• User specifies the “Local Quantity” for an item in a specific location
• The Gondola section report will show the Local Quanity and Quantity values

Enhanced App: ENOVIA IP Classification

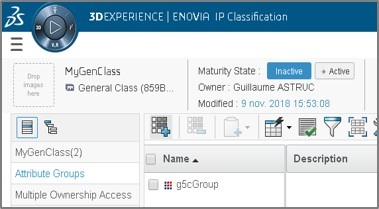

Support  viewing  library class, attribute groups and attributes in any classified object’s property page

When an attribute group is added to a class, a weighting value will be captured which will determine where it will be displayed in the object property page.

If the weighting value is positive, the class, attribute group and attributes will be displayed before the object attributes.

Enhanced App: Collaboration for Microsoft

Support  viewing  library class, attribute groups and attributes in any classified object’s property page.

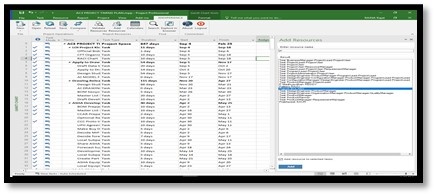

Improved user experience to add resources from 3DEXPERIENCE to MS Project

Administrators on the cloud can now customize the attribute mapping between MS Office document properties and 3DEXPERIENCE document attributes.

View, edit and create documents under a Bookmark Workspace using MS Office integration and Windows explorer integration.

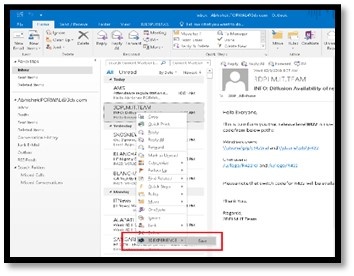

New – Save context menu on an email object enables reduces clicks by not having to open the email in a separate window.

Enhanced App: ENOVIA Interference Check

Enhance Interference Management by removing Iterations required to Display detected Interferences

Why:

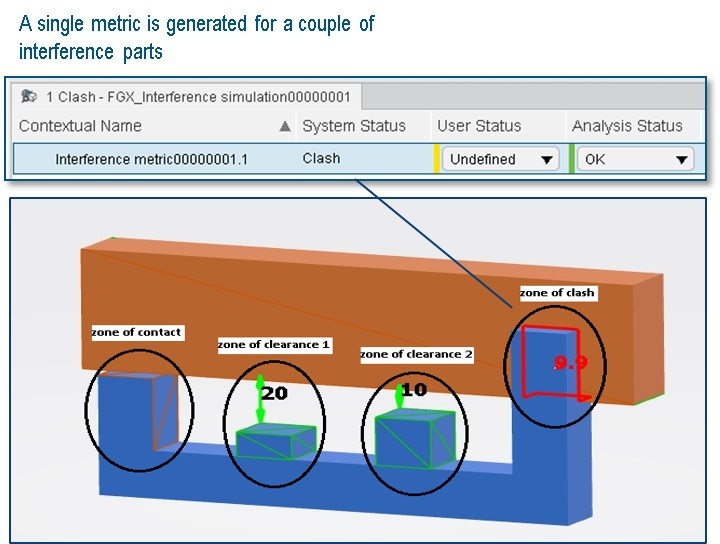

• During analysis of interference, customers need to visualize zones of interferences irrespective of their type: clash, contact or clearance

How:

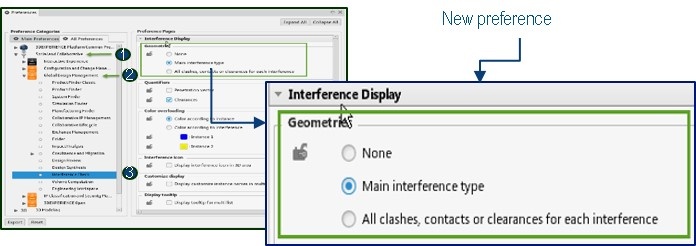

• A new preference has been added to enable visualization of the geometry of all zones:
  • Clash zones
  • Contact zones
  • Clearance zones
  • Distances between clearance zones

Load and Explore only those interferences that you need to work on

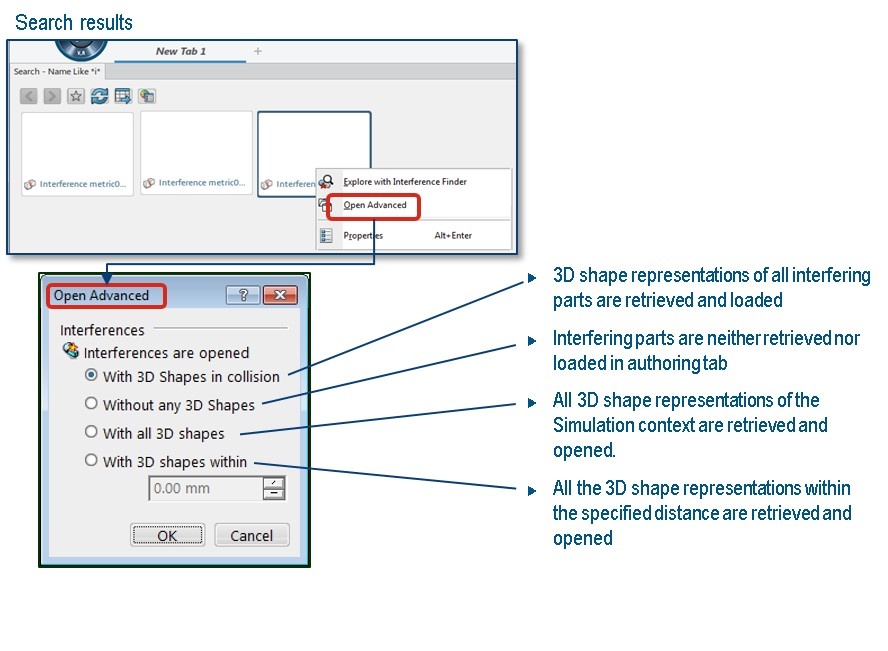

• A new command “Open Advanced” is available from the search results (in contextual menu)
• User can open one or more interference metrics from the same simulation
• Results are open in the app “Interference check”

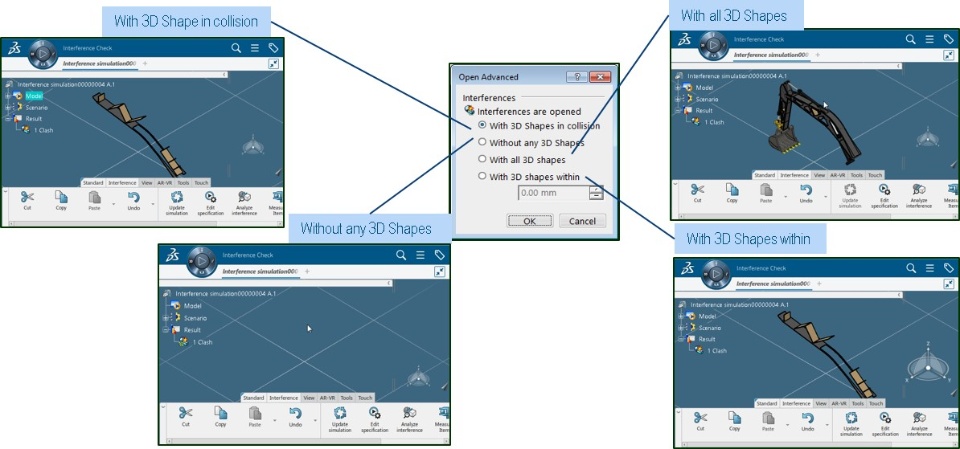

Examples of How the Interferences can be opened from “Open Advanced”

Enhanced App: ENOVIA Model Definition

Enhance the user experience by providing users with personal preferences & user interaction improvements

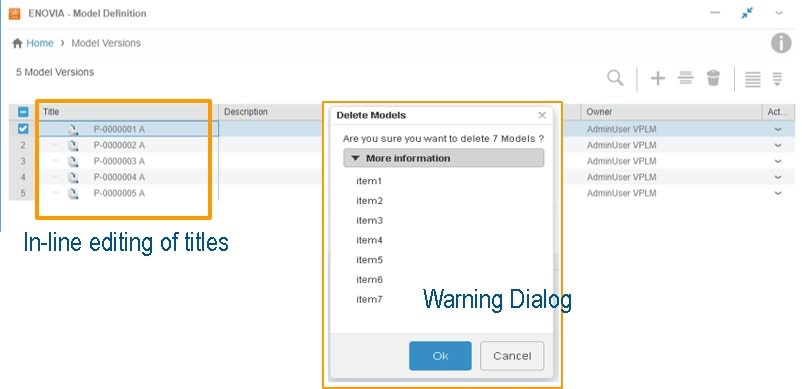

In-line editing of titles

• User will be able to change the Title by clicking on the Title cell of an item, and then pick the new value for the title

Deletion of items

• Warning message before permanent deletion of any items

Status of panels
New columns available in Data Grid View in lists

3DEXPERIENCE CATIA on the Cloud

Enhanced App: Product Perception Experience

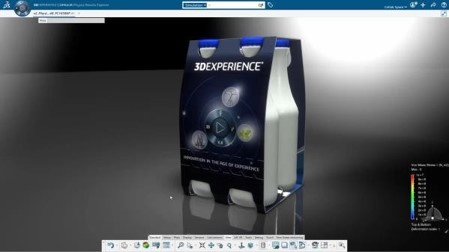

You can now create & Play 3D Visual Experiences for compelling styling Presentation

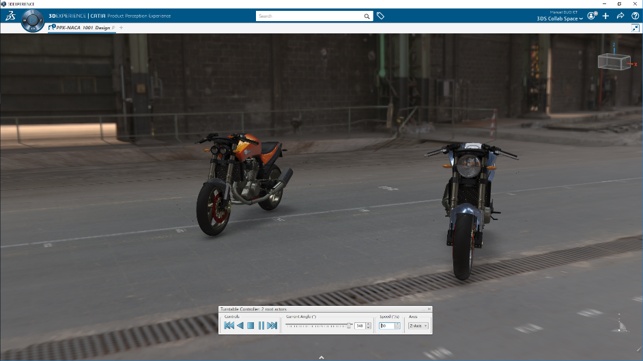

• Turntable
• Properties panel made PPX-specific
  • Used to be the Creative's one as is
• Preferences tab reorganized
• Material cross-highlighting
  • I select a material in the tree, all the parts gets highlighted in the 3D
• Paste viewpoint variant parameters
  • Focal length, exposure to a complete line of viewpoints

Enhanced Apps: 3DPlay & 3DDrive for Social Collaborative Services

User Experience enhancement

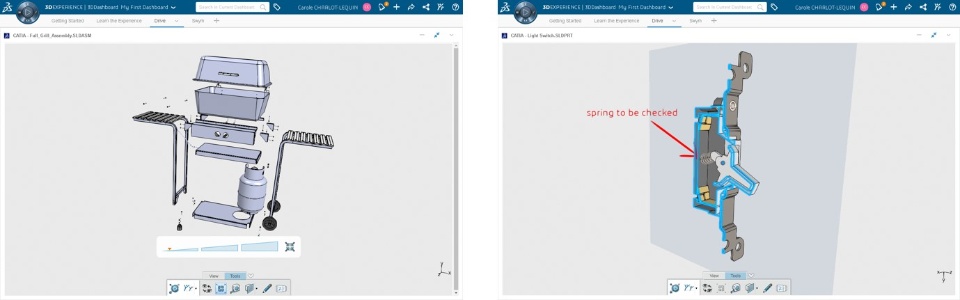

• 3DPlay full capability scope for SolidWorks and DXF/DWG files in 3DDrive
  • Explode, measure, section, annotation
  • Share as picture to 3DSwym

Construction Cities Territories Industry

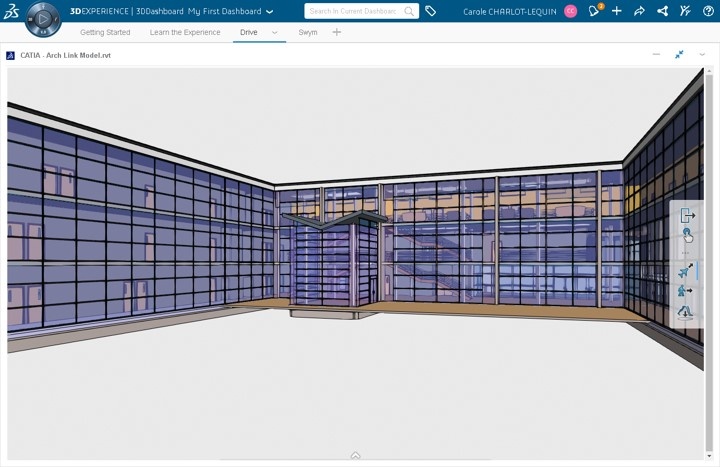

• Support of REVIT files in 3DDrive
• Fly/walk mode improved navigation

Enhanced App: ICEM Design Experience

Enhanced modeling & usability thanks to:

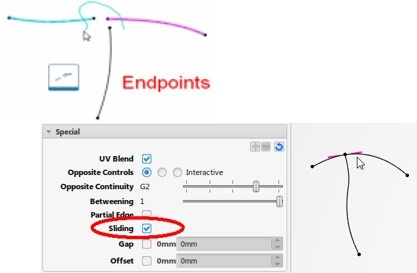

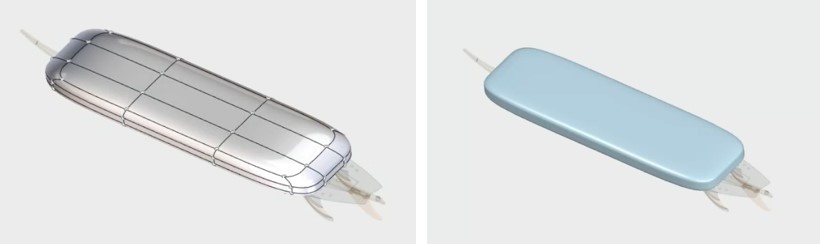

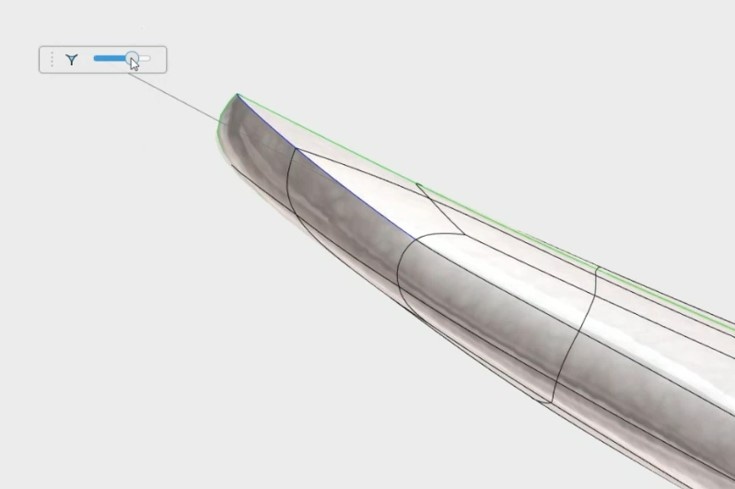

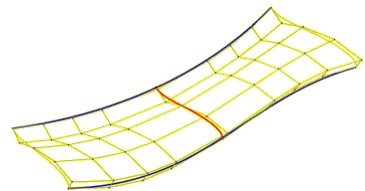

OmniSurf – Single Patch

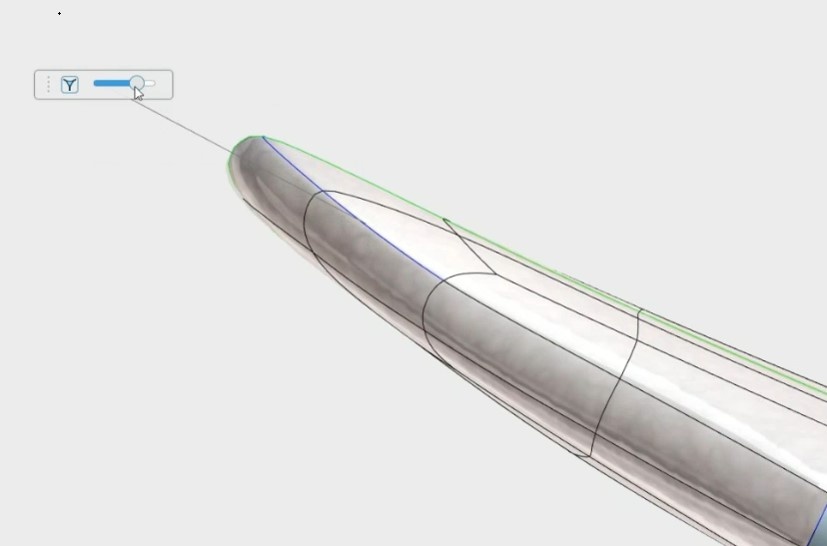

Improved algorithm now produces only a single patch result

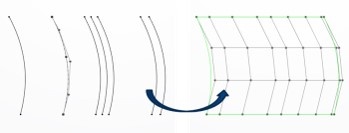

OmniSurf - Multi-Blend

Improved control mesh quality through OmniSurf Type Multi-blend surface (N Parallel)

OmniMatch

• Improved automatic detection of curve matching situations (interior/endpoints)
• New slider to slide the matching point along the master in a T config

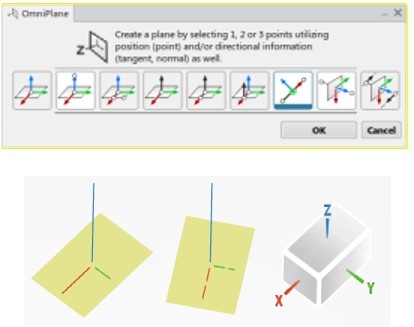

OmniPlane

• New selector panel to aid the user in defining different methods to create a plane
• Improved plane visualization options

Selection

• Position selection by "intersect"

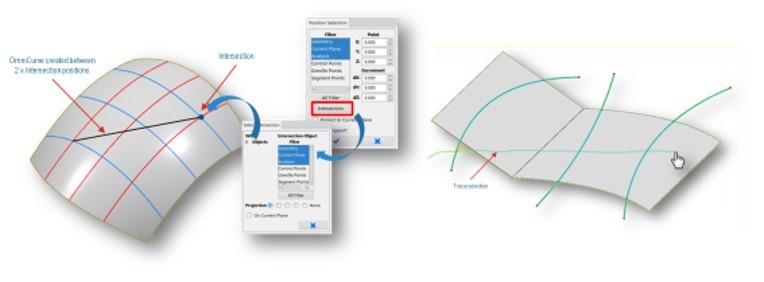

• Multiple selection of filtered objects

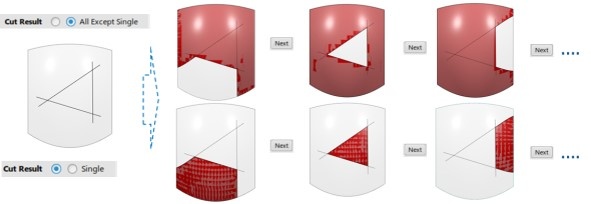

OmniCut

Simplification of Cut results

Analysis

GSD Planes are now selectable for Analysis input when defining a Plane

Enhanced App: xDesign

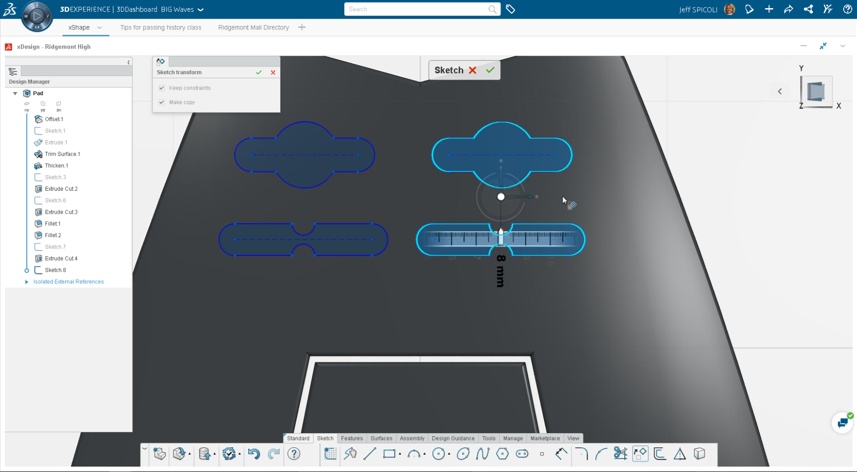

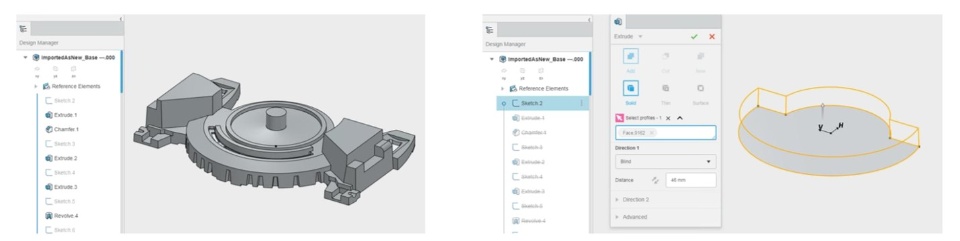

New capabilities in sketching

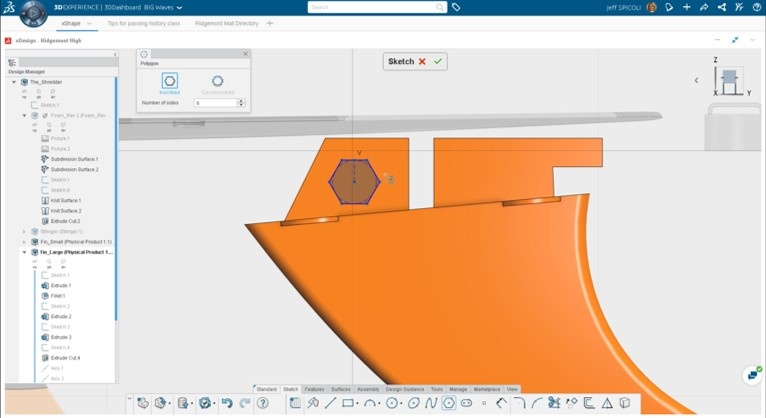

• Spline & Polygon(inscribed and circumscribed)
• Cut Copy paste in sketching

New and improved capabilities in Modeling

Improved Offset, Insert picture, Hole, Fillet, Projection and Insert Geometries.

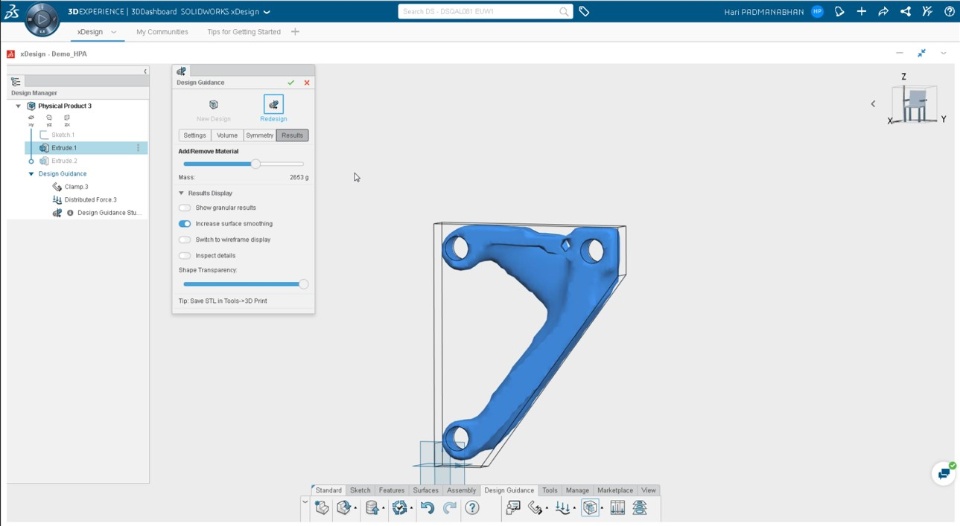

Improved Design Guidance

Smooth mesh and clean preserved regions.

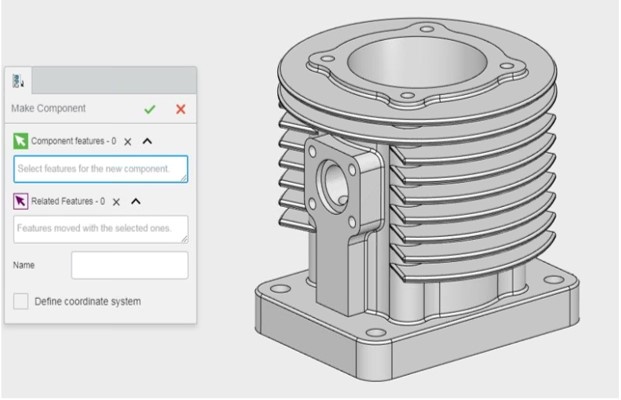

This release adds the capability to reserve assembly and it is now possible to filter axis and sketches from view

User friendly UI

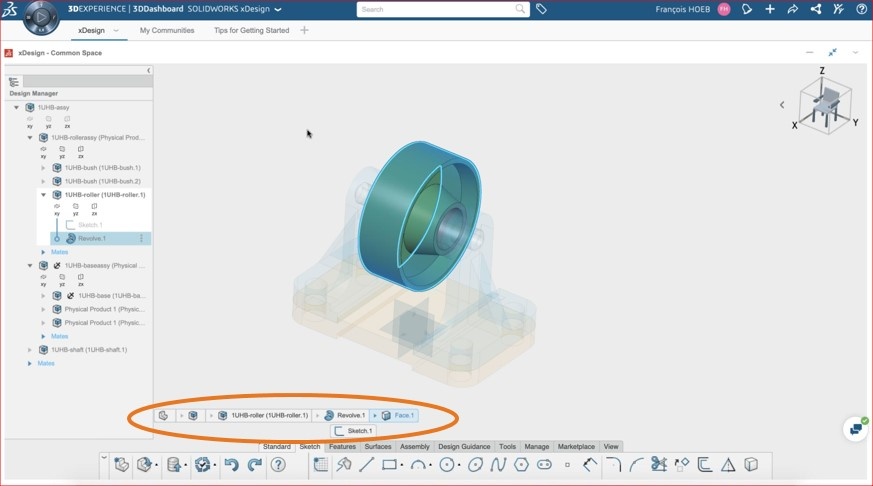

• Hierarchy Breadcrumb displayed for correct selection
• Escape and Shortcut button in touch toolbar
• Dual mode Box selection capability for quick selection
• Parent child behavior for Suppress & Delete

Improved performance

Sketching, modeling, assembly, data loading etc.

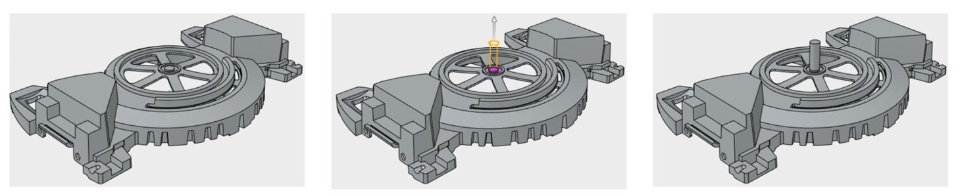

Quick edit

Capability to perform operation on any component of assembly without activating it.

Enhanced App: xGenerative Design

Enhancement on productivity and user experience

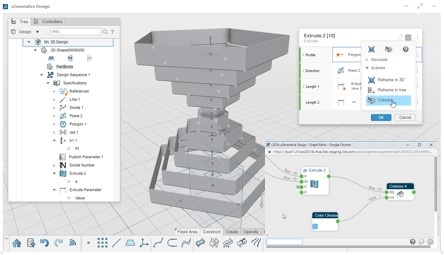

• Graph – Auto connect, easy way to create a link between connectors of 2 different operators (when connectors are overlapped during a node drag)
• Graph – Help panel, extraction of the help panel in a moveable and resizable window
• Graph – Context Toolbar relook (when you select or edit a node)
• Graph – UX improvements (for MAC and laptop), Limitation of mouse wheel speed, Limitation of zoom range, Pan the graph with Ctrl+click
• Graph – Various improvements like Alpha channel on color nodes, error messages of several operators, performances of multi-selection in the graph, auto-layout improvement, better display after graph editor opening
• Controllers view in separate tab/panel, you can now see and use spec tree and controllers panel at the same time
• SpecTree improvments, filter & search are now working
• Colorize operator is now available in interactive dialog panels

New Operators

• Publish Parameter, creates an output parameter published by the design sequence
• Publish List, creates a list either referencing published geometries or parameters

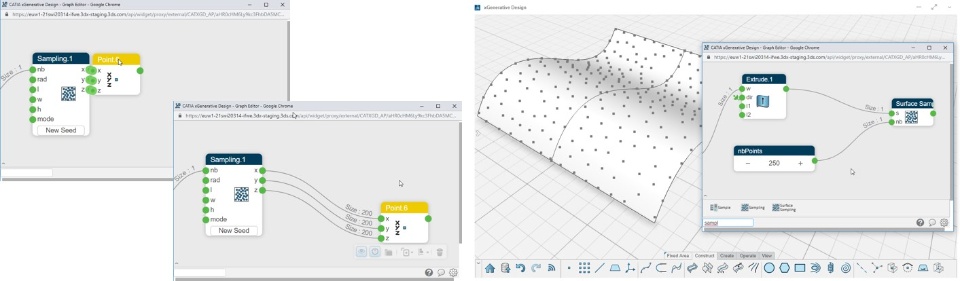

• Surface Sampling, builds a list of points on a surface using a poisson disk sampling

Enhanced Apps:

• CATIA Piping & Tubing 3D Design
• CATIA Piping & Tubing 3D Part Design
• CATIA Piping & Tubing Systems Design
• CATIA Generative Fluid 3D Design

Continuous improvement of fluid system design capabilities

Productivity / User experience

• 3D Admin : Usage of new Asynchronized option in  Part filter to optimize loading performances for big Catalogs
• 3D UI : current Line ID Low Light available also in assembly mode

Functional completeness

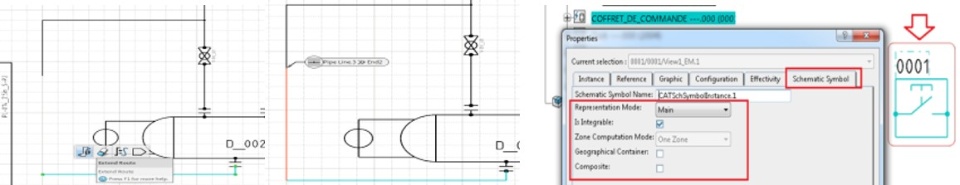

• Schematic: Connect 2 Pipe/duct line without merging. Used for Connect, Create Route or Extend Route commands
• Schematic: Component definition Main / Called: Customers need to clearly identify if a component belongs to the documented system (current Schema) or if it is “quoted” from another system.

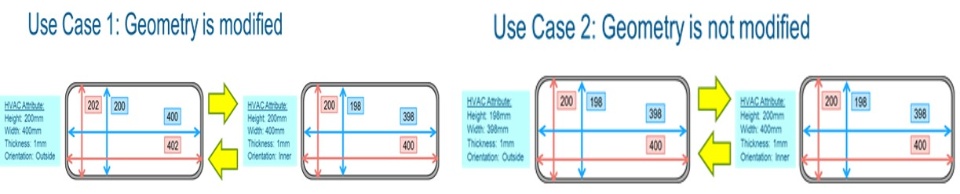

• 3D Design HVAC : Integrate inside/outside thickness behavior to update existing HVAC Duct (update geometry or Height/width attribute value)

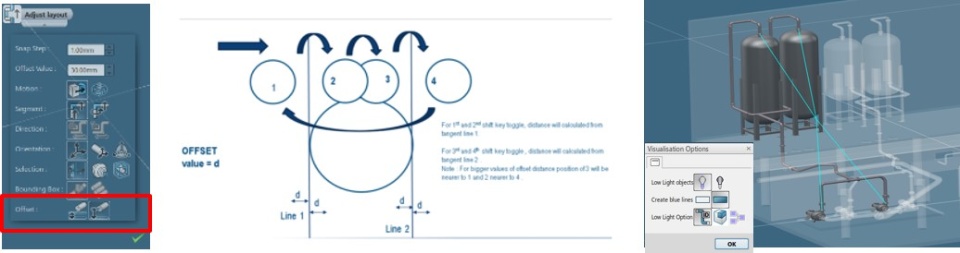

• 3D Design Adjust Layout : support all pipe to pipe  segment alignment cases with possible offset

Knowledge base design

• Schematic : Business Rule to drive instance attribute value propagation during Manipulate symbol
• 3D Manufacturing Preparation : new API to compute Component Orientation for spool fabrication

3DEXPERIENCE DELMIA on the Cloud

Enhanced apps:

• DELMIA Additive Part Preparation
• DELMIA Powder Bed Fabrication

These new release features will enhance capabilities for support creation and edition but also bring improvements on User Interface and workflow by improving productivity with easy to use commands

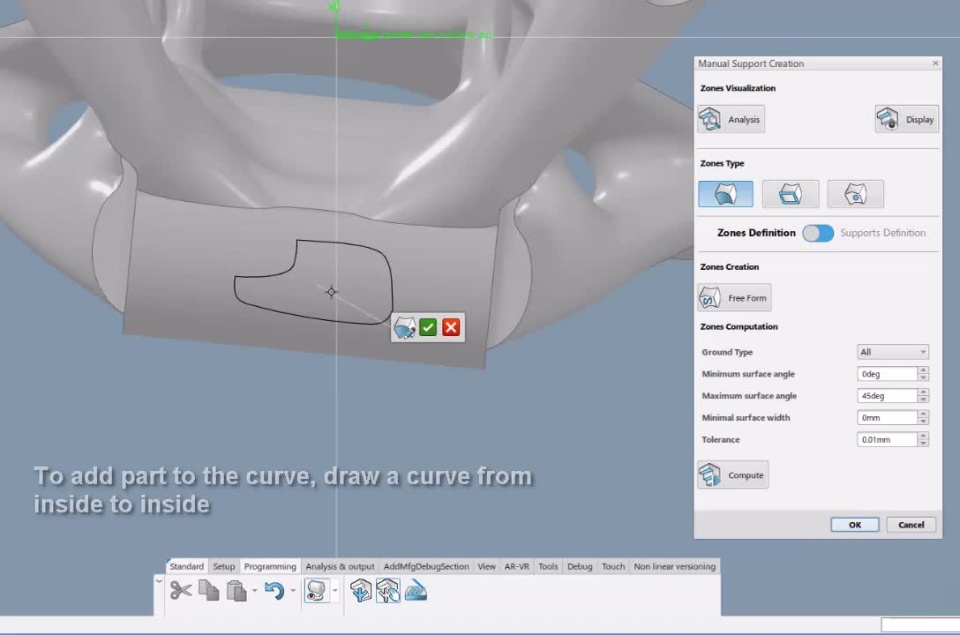

New command for Manual Support Creation

• Direct access to Manual Support Creation with a new command in action bar.
• Access through Support Creation command has been removed

Support Creation

• A new option Edit the contour of the sketch allows to modify the curve (add/remove) drawn with Free Form tool.
• This option is only available on curve creation

A new context bar on positioned part
A context bar on positioned part gives direct access to Layout, Manual Support Creation and Propagate Supports commands.

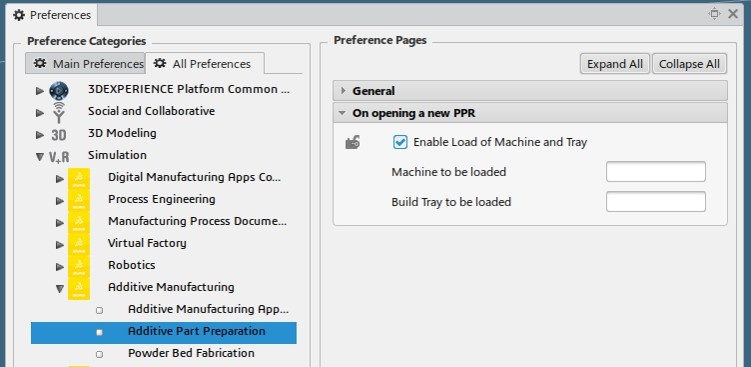

Default machine and build tray management in Preferences
A default machine and build tray can be filled in Preferences and taken in account for new PPR creation so that the user won't have to select them every time.

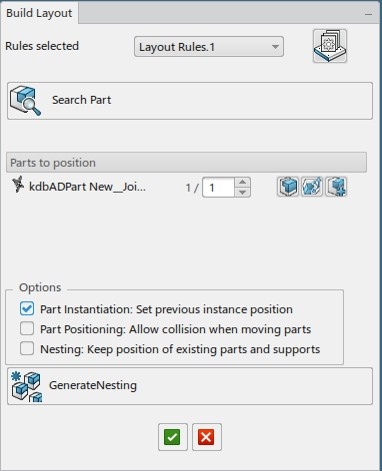

Part selection moves from Build Setup to Layout command
To simplify the workflow, parts are now selected in Layout command instead of the Build Setup command. This way user can stay in the same command to add or remove part to produce.

3DEXPERIENCE SIMULIA on the Cloud

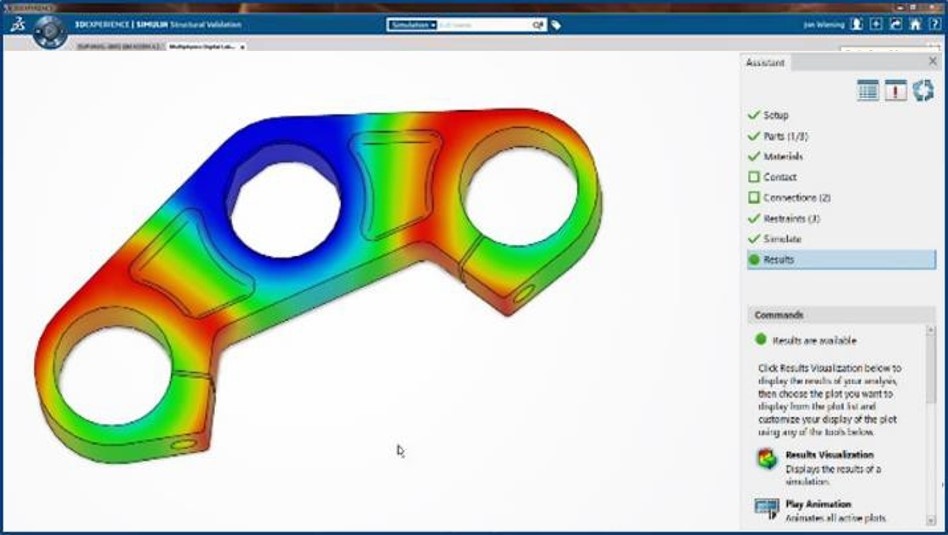

New role: Structural Designer

An intuitive design simulation solution for designers looking for product performance assessment under linear static conditions to guide the design process.

This role provides linear simulation in a guided environment for Designers

• Seamless integration and common user experience between CAD, PLM and CAE
• Smart applications focused on intuitiveness to remove the guesswork from product design
• Provide fast insight and direction to answer key performance questions for product innovation

Other improvements

• Intuitive guided workflow including: Linear Static, Buckling, Frequency and steady state thermal
• Automated modeling with adaptative meshing to control accuracy vs compute time
• Includes the solver execution capability up to 4 cores

New role: Structural Engineer

A Design Simulation role for Design Engineers providing comprehensive linear structural analysis to assess the performance of products during the product development process

This role provides comprehensive linear FEA

• Provides Design Engineers with powerful and intuitive tools needed to perform linear structural simulations during the design process
• Delivers unique design workflow in 3DEXPERIENCE with an access to robust simulation technology within an intuitive interface
• Utilizes simulation results collaboratively as valuable insights
• Includes high performance results visualization

Other improvements

• Guided Workflow for Linear Static, Frequency, Buckling, Steady State Thermal, Harmonic and Modal Dynamic analysis types
• Multi-step sequences
• Intuitive contact definition with powerful contact detection capability
• High quality meshing with solid, shell and beam elements including automatic mesh generation
• High-performance results post-processing
• Includes the solver execution capability up to 4 cores

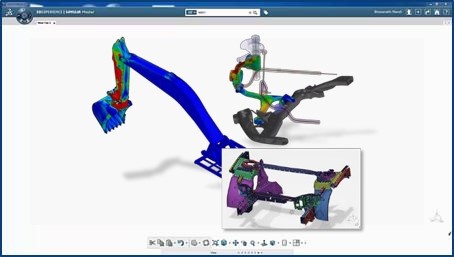

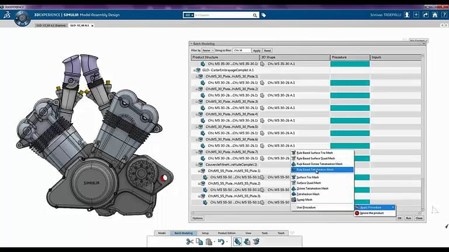

New role: Structural Mechanics Engineer

Solves complex engineering problems using superior mechanical simulation methodologies to predict, validate and improve product behavior

This role has a complete simulation technology

• Perform advanced simulations to ensure accuracy and robustness
• Productive interface including substantial time reduction in model build and assembly with fast, high-quality meshing
• Integrate workflows to Create/Execute/Deploy simulation processes
• Seamless integration between CAD, PLM, and CAE (no import required)
• High performance results visualization, particularly for very large models  including realistic rendering

Other improvements

• Multistep structural scenarios including: Static, Frequency, Thermal,
• Buckling, Implicit/Explicit Dynamics, Linear Dynamics and more
• Seamless associativity/integration with geometry for generative simulation including functionality for simulation geometry preparation
• Productive apps for large model 3D visualization/post-processing and XY  plotting enabling design insight and decision making from results
• Highly efficient toolset for 1D/2D/3D automatic and interactive modeling & meshing
• Includes the solver execution capability up to 4 cores

New role: Multibody Analyst

Access and manage Simpack Powered By 3DEXPERIENCE

Simpack is a Multibody Simulation software for the dynamic analysis of any mechanical or mechatronic system in time or frequency domain to predict motion, velocities,  accelerations, forces, and stresses.

Multibody Specialist is a role to connect Simpack to the 3DEXPERIENCE platform

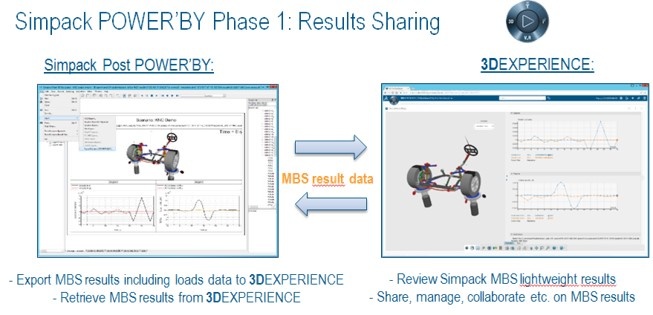

• Run Simpack in a “connected” mode, leveraging
• 3DEXPERIENCE as a collaboration platform
• Full access to the existing capabilities of Simpack,  including continued option to edit models in a native  Simpack Pre environment
• Result data management capabilities for Simpack

New role: Electromagnetics Analyst

Access and manage CST Studio Suite Powered By 3DEXPERIENCE

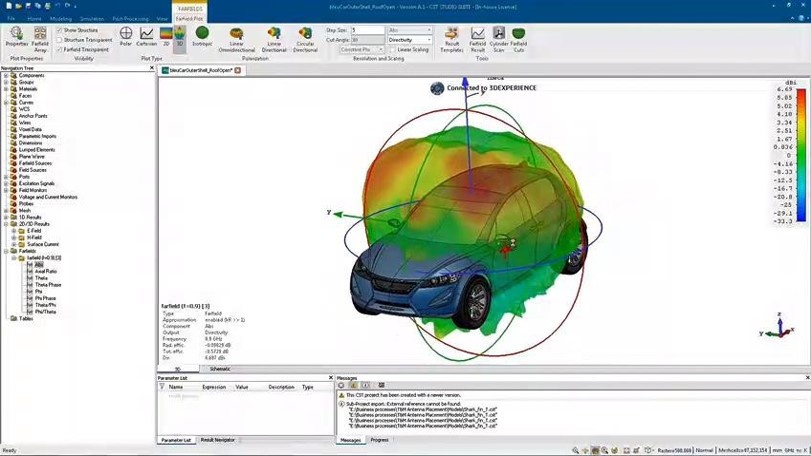

CST Studio Suite is Electromagnetic (EM)  software for simulation of electromagnetic  behavior

Electromagnetics Analyst is a Role  to connect CST Studio Suite to the  3DEXPERIENCE platform

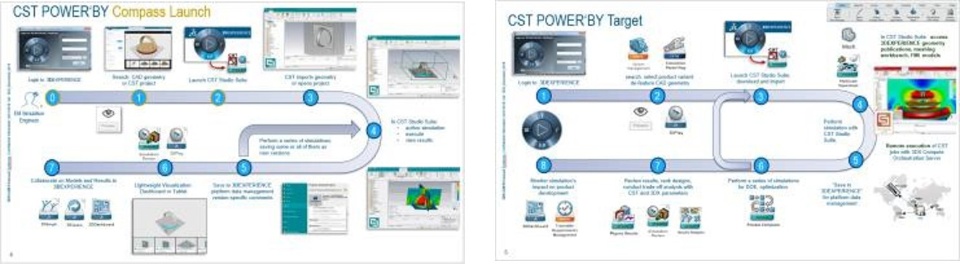

• Run CST Studio Suite in a “connected” mode,  leveraging 3DEXPERIENCE as a collaboration  platform
• Full access to the existing capabilities of CST  Studio Suite
• New data access and management capabilities  for CST Studio Suite
• Leverage high-quality CATIA geometry in EM  simulation

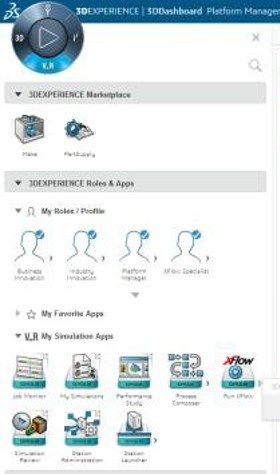

New role: XFlow Analyst

Access and manage XFlow Powered By 3DEXPERIENCE

XFlow is Computational Fluid Dynamics software for high-fidelity transient flow prediction

XFlow Analyst is a role to connect XFlow to the 3DEXPERIENCE platform

• Use XFlow leveraging 3DEXPERIENCE as a collaboration platform.
• Full access to the existing capabilities of XFlow, including continued option to edit models in a native XFlow environment.

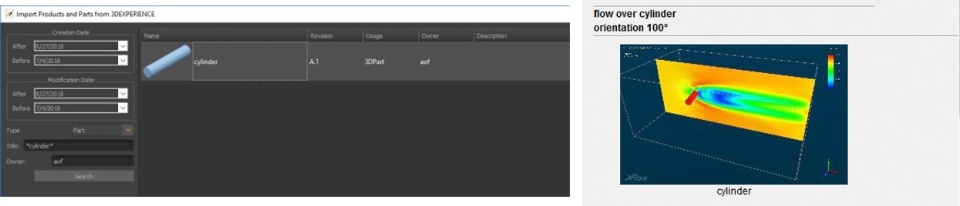

• Import parts & products from 3DXEXPERIENCE, upload XFlow simulations and image results.

This new version brings additional SIMULIA improvements for following apps

• SIMULIA Composites Model Creation
• SIMULIA Steel Structure Model Creation
• SIMULIA Structural Model Creation
• SIMULIA Internal Acoustic Model Creation

List of improvements

Model Properties
Query basic properties of a model such as mass, volume, and moments of inertia and save the information to an external file

Connection Manager
Additional information available and improved connection management features in Connection Manager

Point and Line Fastener
Point and line fastener definition improvements

Deactivate model features
Deactivate mass, point inertia and group features without removing them

Point Fastener Detection
Secify the number of supports to consider when detecting possible fastener locations

This new version brings additional SIMULIA improvements for following apps

• SIMULIA Mechanical Scenario
• SIMULIA Additive Manufacturing Scenario Creation
• SIMULIA Linear Dynamic Scenario Creation

List of improvements

• You are now able to specify additional damping controls and stabilization coefficients for surface-based contact
• You are now able to specify material parameters as a function of independent field variables for specified material behaviors

This new version brings additional SIMULIA improvements for following app

• SIMULIA Station Administration

List of improvements

Administrator access role is now required to register servers and modify station attributes

3DEXPERIENCE SOLIDWORKS on the Cloud

Role updates

• 3D Creator is the new name of former role xDesign
• 3D Sculptor is the new name of former role xShape

App enhancements: xDesign

User Experience improvements

• Use is now made easier thanks to a new breadcrumbs
• Delete child feature is now available

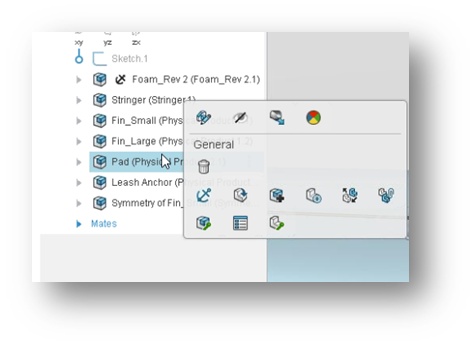

• The CTRL key command hides mini-bar to ease multi-selection

Right click is now supported

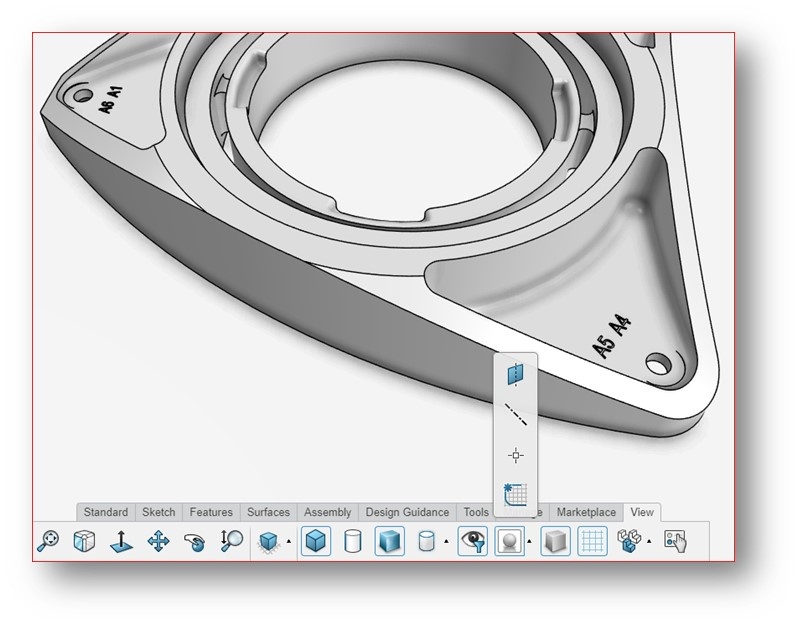

Axes and Sketched are now available in View filters

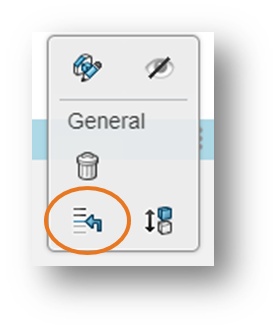

"Roll To" command is now available for easy roll back or forward in tree

Some new touch enhancements like S-key or Escape

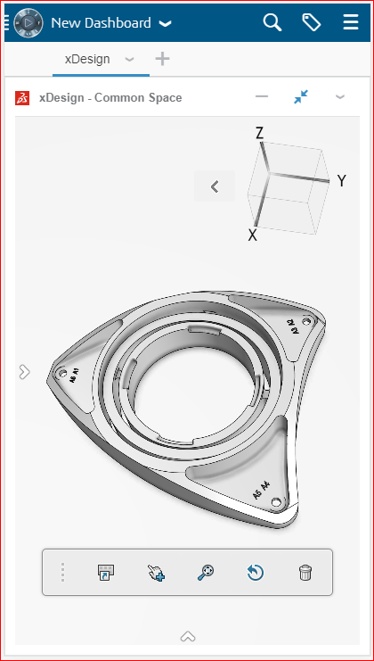

App window is now responsive as items based on screen/window size are now auto-hidden

It is now possible to copy and paste sketch entities (using shortcut CTRL+C / CTRL+V) and a new tool is available to transform sketch.

This release provides additional improvements on user experience such as :

• An enhanced User Assistance
• No more seams on cylindrical faces for native geometry
• 3DPlay consistent content viewing experience and the ability to publish to 3DSwym

Performance improvements

Performance are improved for Feature Creation with:

• Preview: 6x faster
• Ok: 8x faster
• Overall: ~8x faster

Performance are improved for Feature Edit with:

• Preview: 75x faster
• Ok: 5x faster
• Overall: ~9x faster

Performance are improved for Make Component with:

• Overall: ~11x faster

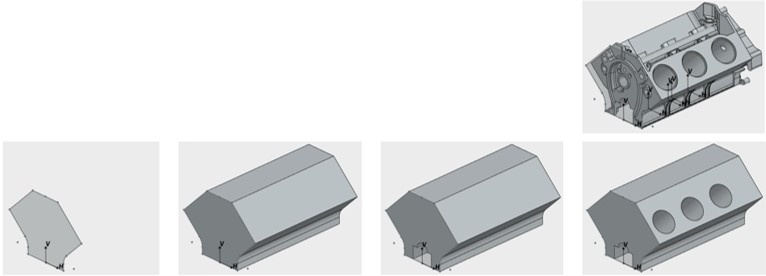

Performance are improved for Rollback with:

• Feature 1: 21x faster
• Feature 2: 21x faster
• Feature 3: 21x faster
• Last feature: ~5x faster
• Overall: ~9x faster

Additional performance improvements made in all these areas:

• 3DDrive thumbnail creation
• Sketch Performance
• Server connection
• General modeling
• Opening data

Features improvements

New design guidance with improved mesh smoothing

Preserved regions are now exact

Sketch Polygon and improved Tangent Propagation for Fillet/Chamfer

Hole enhancements with preview and improved usability

Assemblies improvements

Reserve and Unreserve with more control
Right click of assembly name allows control of assembly structure separate to that of editing features at that level

App enhancements: xShape

Variable Crease

Slider control to vary crease sharpness

Smoothing option similar to a conic fillet

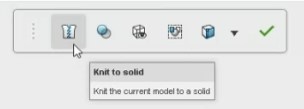

Knit to solid

Automatically knit closed Sub-D surface to solid

Access from feature tree and while editing
