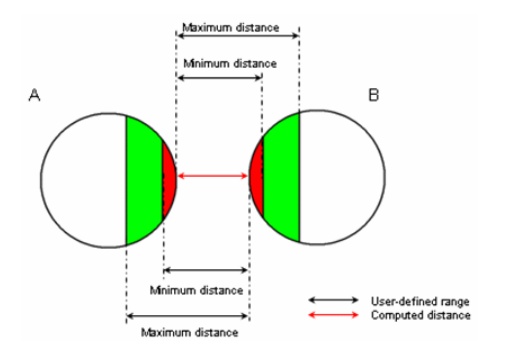

The Band Analysis command allows you to set a minimum and maximum distance that the components have to meet. If you see red, this means that the components have violated the minimum distance. Green means that it’s the area that is between the minimum and maximum distance.

By default, in 3DEXPERIENCE CATIA, this command is not visible in the Design Review App. To add Band Analysis command to the action bar:

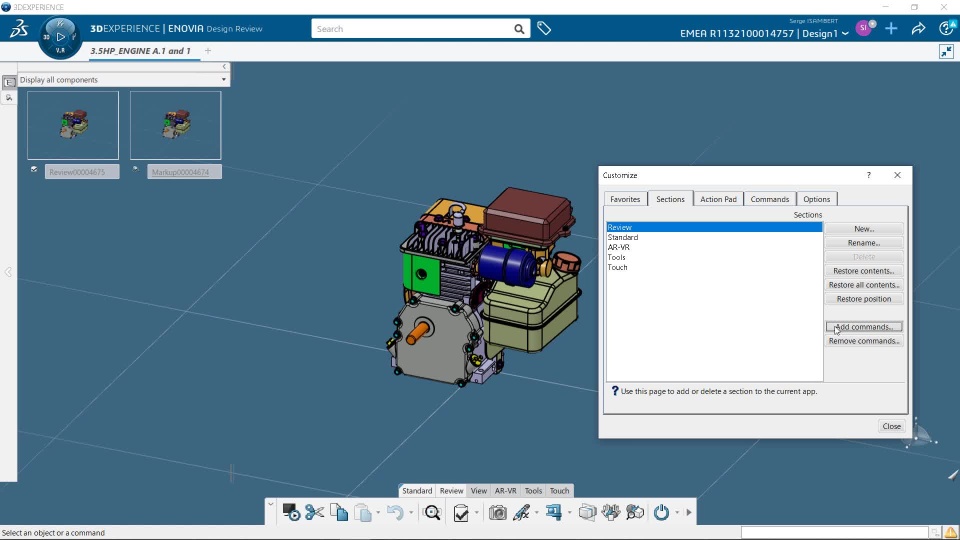

• Right-click the top bar and select Display > Customize.
• In the Section tab, click Review > Add commands locate Band Analysis command.
• Click OK.
