Presentation
2024x Dassault Systemes sample Starterkit, cover limited number design rules, spec and Piping Parts.
Please find enclosed in this post a complete Piping Resource Set from 2024x with two Standards :

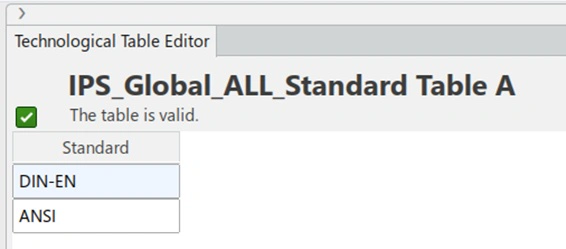

- DIN-EN (Default Specification)
- ANSI
The idea of this Resource Set is to have a light one that can be imported on Cloud with no limitation (47k objects maximum can be imported on Cloud), and that can be easily used for any Piping Demonstration.
Both Standard are build exactly the same way :
- 10 Nominal Sizes for Rigid Pipes
- 3 Nominal Sizes for Flexible Pipes
- 3 materials : 1 for Rigid Pipes, 1 for Flexible Pipes, 1 for all the Parts
- Turn Rule Table to automatically place the Elbow
- Minimum Straight Length and Directional Length Table
- Automatic Part Placement Table to place Flange plus Gasket on any Valve
- Branching Rule Table to automatically manage the Tee junction
- Automatic Reducer Rule Table to automatically manage Reducer junction
- Limited number of Parts but enough to engage with any customer - 3 different type of valves:
- Check Valve
- Gate Valve
- Ball Valve
If you have any question do not hesitate to contact me.

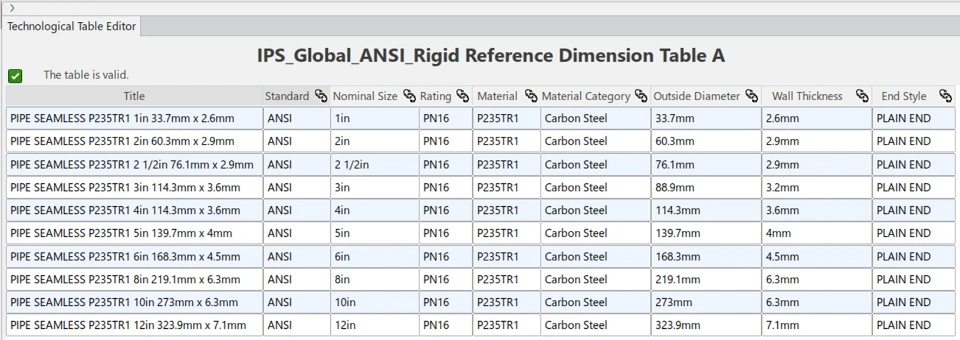

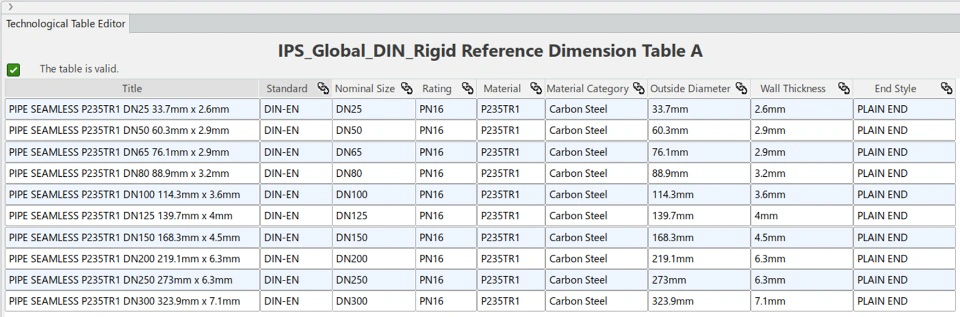

Rigid Pipes

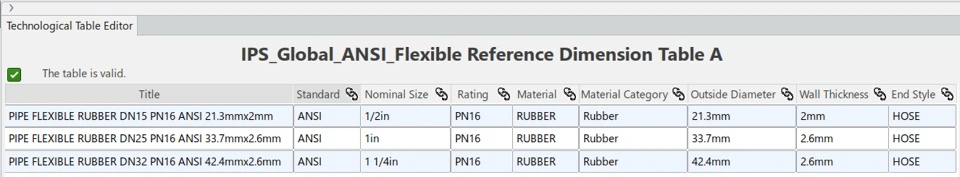

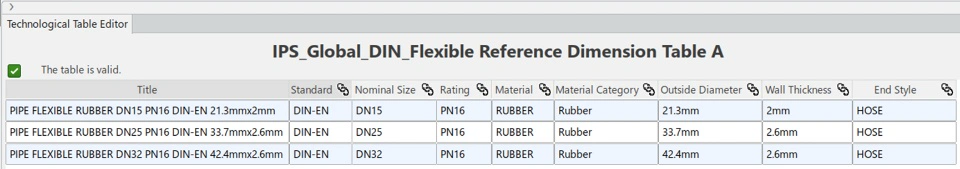

Flexible Pipes

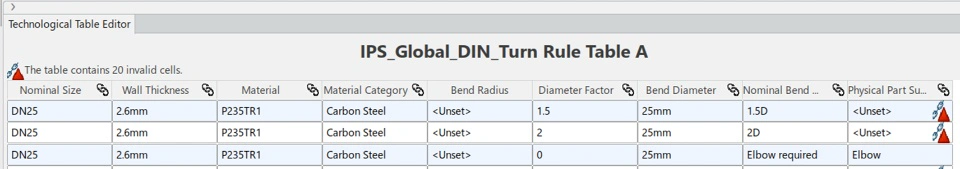

Turn Rule Table (extract)
The one for ANSI Standard is the same
Minimum Straight Length Table (extract)
The one for ANSI Standard is the same
Directional Length Table (extract)
The one for ANSI Standard is the same

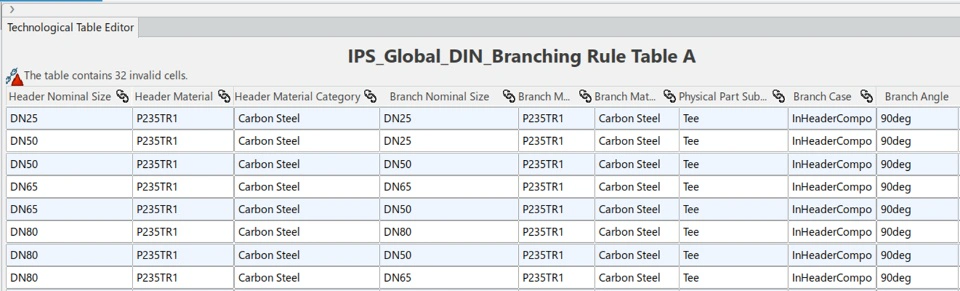

Branching Rule Table (extract)
The one for ANSI Standard is the same
Automatic Part Rule Table

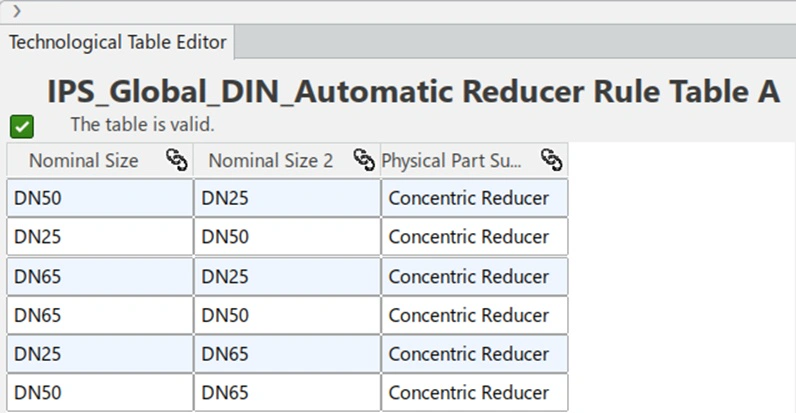

Automatic Reducer Table (extract)
The one for ANSI Standard is the same
