Consider a scenario where a design team is working on a 3D CAD model of an assembly containing hundreds of parametric features such as pads, holes, fillets and patterns. During the design change, there is a possibility that few of feature may encounters error and become inactivate due to internal dependency. In such scenarios, the designer faces major challenges to identify such a feature. Parameterization Analysis allows users to filter and display specific features within a 3D representation. This can include root features, inactivated features and isolated features that do not have any parent or child relationships.

This technical practice helps you to familiarizes you with the Parameterization Analysis tool is used to identify features where specific update modes or strategies, such as Ignore parents in error, have been applied. This is crucial for understanding how different features interact and depend on each other. The tool provides a visual representation of the feature structure, displaying each feature within its own body. This expanded tree structure helps in visualizing the hierarchy and dependencies of features, making it easier to manage and modify the model. By using Parameterization Analysis, users can ensure that their 3D models are robust, flexible and easy to modify, which is essential for design reusability and adaptability.

Users can perform operations while the Parameterization Analysis dialog box is open, allowing real-time adjustments and analysis. You can analyze the structure of a representation and isolate specific features within a 3D representation. For example, this is particularly useful when managing power copies.

Use Case: Analyze feature update failures resulting from parameter changes and identify unstable dependencies.

Scenario: In the parametric design of the BIW, when you update the position of the front suspension, the sweep feature fails for specific values of a parameter. In such scenario, updating the parameter beyond the limits is not possible conventionally.

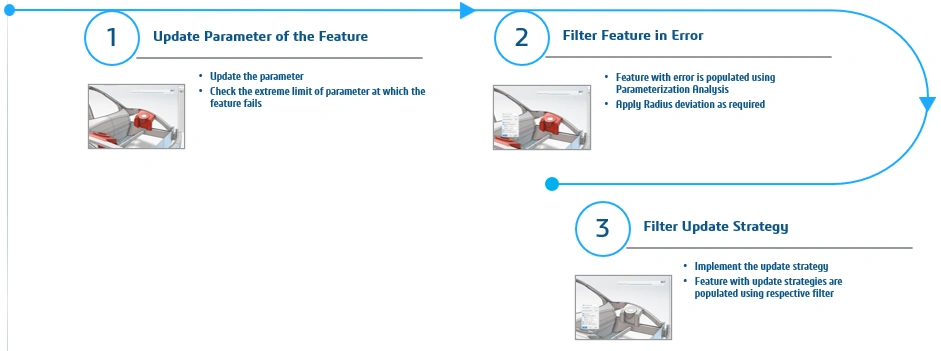

Using Parameterization Analysis, you can filter the errors, which will allow all errors in the design to populate. Later, you can apply various update strategies to resolve the errors. The features with strategies can aslo be populated using specific filters.


Play the video to wactch the implementation of the Parameterisation Analysis tool, for a sweep feature that fails during a parameter update.

To learn more about Parameterization Analysis, explore the M3S learning module.
