Context

In some cases you want to propagate an information from one object to another during the creation of the Implement link

• it can be propagate the Tag attribute of Schematic object to the 3D instance object
• it can be propagate a property of the 3D object to the 2D object

Datasetup Resource Set : Business Logic for ITEM

Datasetup Resource : After creation of PPR link

Exemples

Use case 1 :

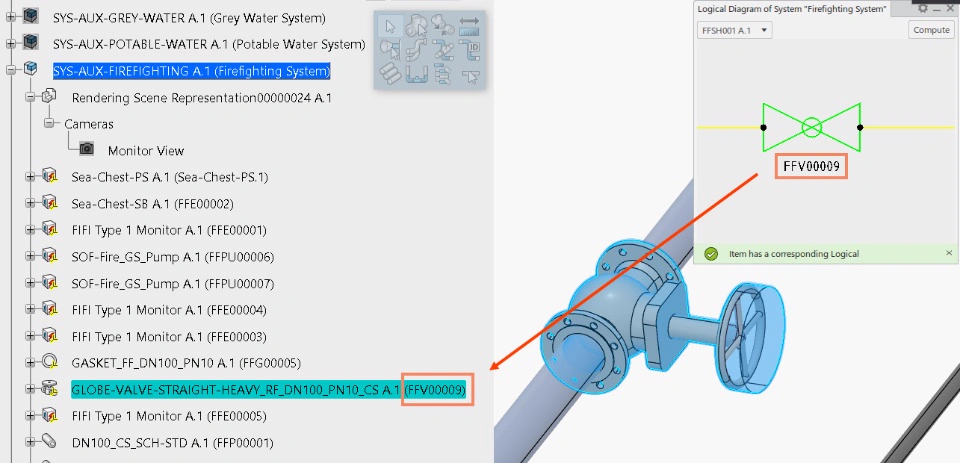

Propagate attribute value of logical Object instance Name to linked 3D object instance Name

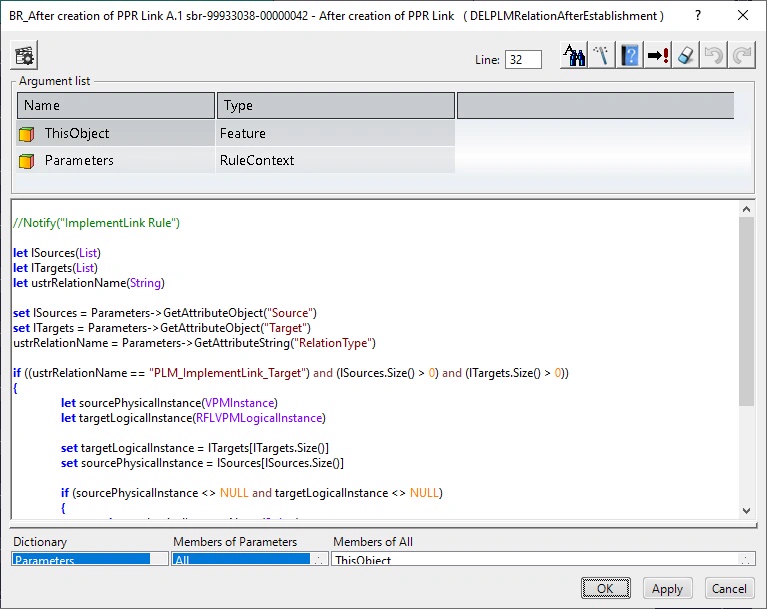

Code: BR Sample for Piping Valve only

//ThisObject -> Feature : PArameters -> RuleContext

let lSources(List)
let lTargets(List)
let ustrRelationName(String)

set lSources = Parameters->GetAttributeObject("Source")
set lTargets = Parameters->GetAttributeObject("Target")
ustrRelationName = Parameters->GetAttributeString("RelationType")

if ((ustrRelationName == "PLM_ImplementLink_Target") and (lSources.Size() > 0) and (lTargets.Size() > 0))
{
    let sourcePhysicalInstance(VPMInstance)
    let targetLogicalInstance(RFLVPMLogicalInstance)

    set targetLogicalInstance = lTargets[lTargets.Size()]
    set sourcePhysicalInstance = lSources[lSources.Size()]

    if (sourcePhysicalInstance <> NULL and targetLogicalInstance <> NULL)
    {
        let ustrLogicalInstanceName(String)
        let ustrPhycialInstanceName(String)
        ustrLogicalInstanceName= targetLogicalInstance.Name
        ustrPhycialInstanceName= sourcePhysicalInstance.Name

        if(sourcePhysicalInstance.IsSupporting("Piping_Valve_Inst"))
        {
            sourcePhysicalInstance.Name = targetLogicalInstance.Name
        }
    }
}
