While working with complex surface design, maintaining high surface quality is critical. Surface quality largely depends on the orientation of the surface and its input elements. These orientations are typically defined at the initial stage of surface development. However, during design iterations, users often face challenges in visualizing, validating or updating these orientations when changes are introduced.

In some cases, controlling orientation requires the use of knowledge rules. Implementing such rules can be time-consuming and often demand scripting expertise, which adds to the overall complexity of the design process.

Resilient Modelling addresses these challenges through the Display Feature Orientation and Define Feature Orientation tools. These tools allow users to understand the spatial relationships and directions of various features in the 3D model.

This Technical Practice helps you learn about :

Display Feature Orientation:

This tool allows you to know how features are positioned and oriented relative to each other. The orientation is shown on the selected feature with a blue arrow, providing a clear visual indication of its direction.

Define Feature Orientation:

This tool allows you to explicitly set or modify the orientation of a feature such as a sketch, surface, or curve within a 3D model. This ensures consistency in feature behavior, especially when dealing with automatic updates, design changes or feature reuse, for example in Power Copies or UDF's.

Unlike Display Feature Orientation which only visualizes orientation, Define Feature Orientation lets you actively control and adjust the way a feature is oriented in space, improving robustness in parametric modeling.

The Display Feature Orientation and Define Feature Orientation tools work seamlessly with other resilient modelling tools like:

• Parameterization Analysis: To identify features that may need orientation definitions
• Update Strategies: Works alongside strategies like Ignore Parents in Error to maintain model stability
• Feature Naming and Organization: Clear orientation definitions make the design tree more intuitive


By combining Define Feature Orientation with other resilient modeling techniques, you can create more robust, flexible and error-resistant 3D models.

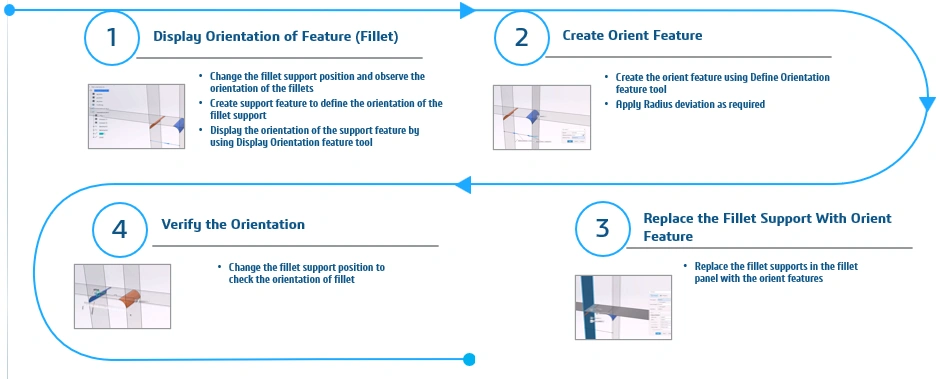

Use Case: Update the Orientation of fillet using Orientation tools

Scenario: Let us see a scenario where you want to control the orientation of the fillet.The Define Feature Orientation tool allow to create orient feature, which further can be used to update the orientation of the fillet surface more efficiently.

Play the video to see the fillet orientations using the Display Feature Orientation tool and later modify them using the Define Feature Orientation tool.

To learn more about Display and Define Feature Orientation, explore the M3S learning module.
