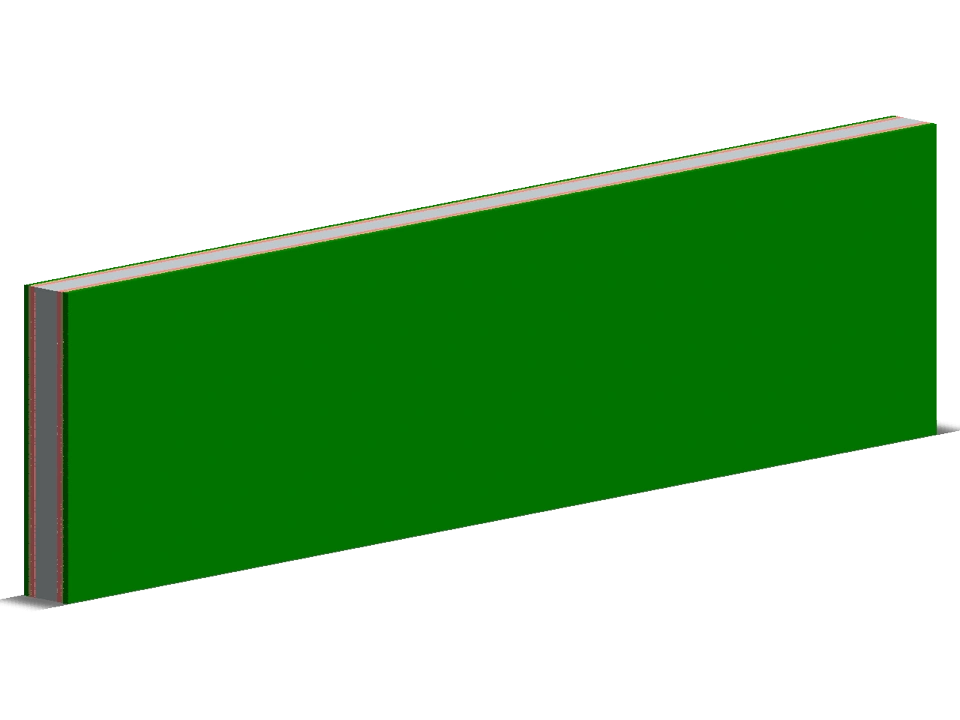

Description
Wall Objects can be used with Building 3D Design to convert low-level wall features into higher-level wall features. These features can then be converted to an even higher-detailed product assembly structure.
Parameters / Outputs

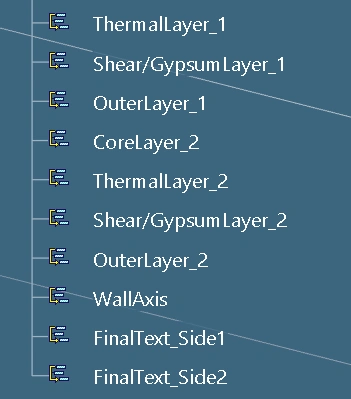

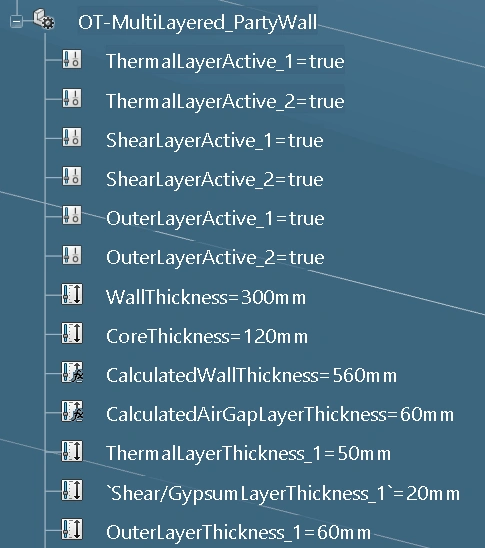

Note: Parameters will slightly vary depending on the wall object-type selected
How Its Used / Image Gallery

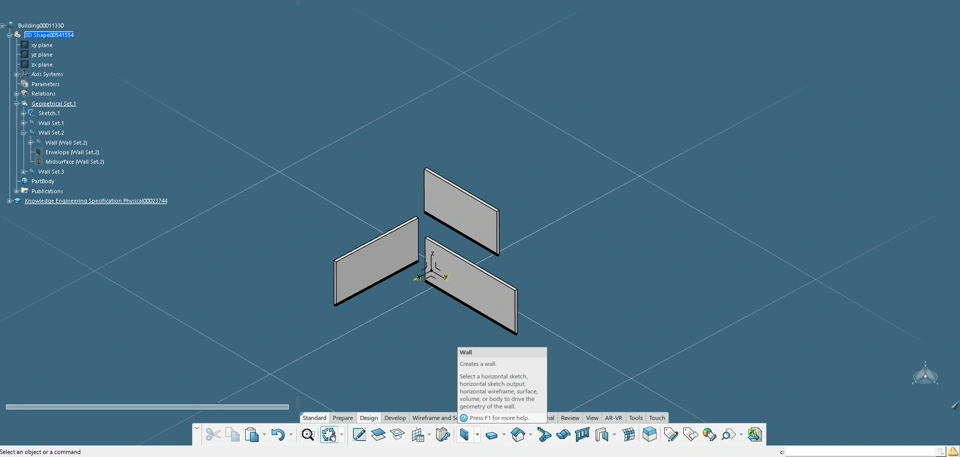

Create desired walls using the "Wall" function in Building 3D Design

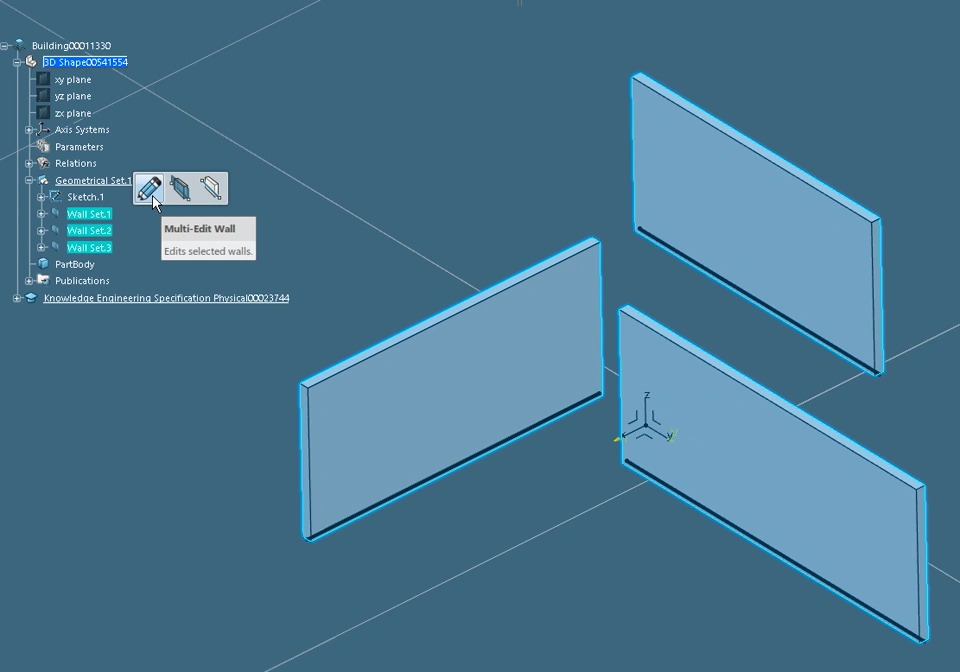

Shift-select the desired walls then select "Multi-Edit Wall"

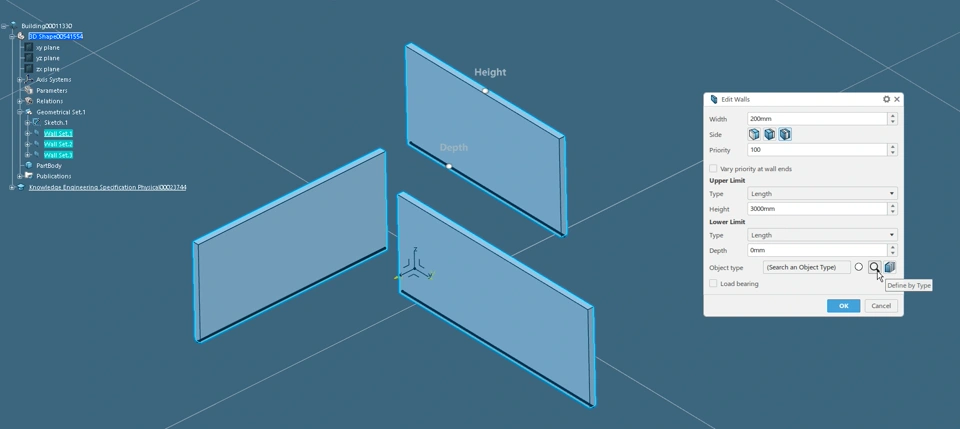

Beside the "Object type" field, select the magnifying glass (Define by Type), and use the explorer to search for the desired Wall Object Type

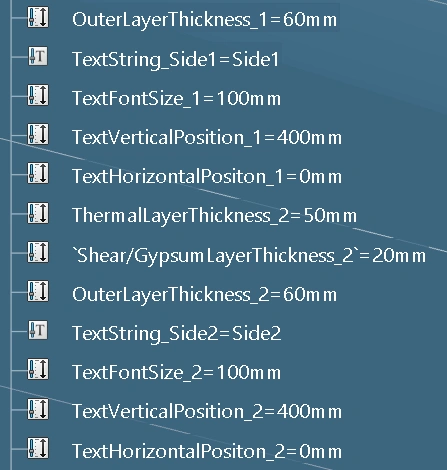

Change the parameters as desired and click Ok. The parameters can also be changed at later stage by simply double-clicking the wall
Be active at the product level and use the "Change Level of Development" function in the Building and Civil Assemblies app

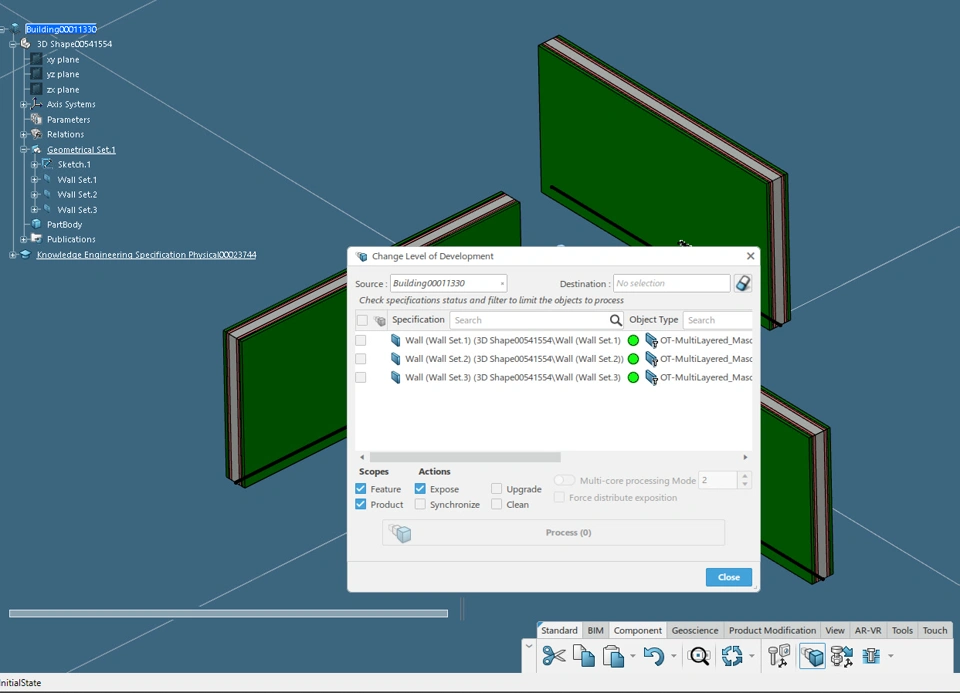

Click the 3DShape, Geoset, or other container housing the Wall geometry as the "Source". The available walls should be displayed

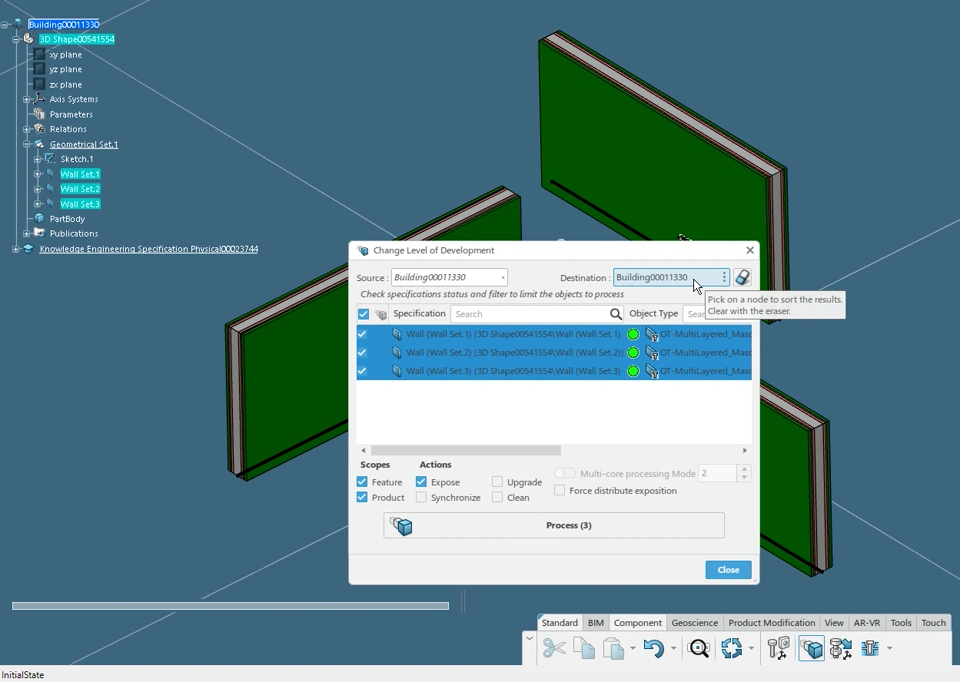

Check the desired walls, and select the desired product as the "Destination"

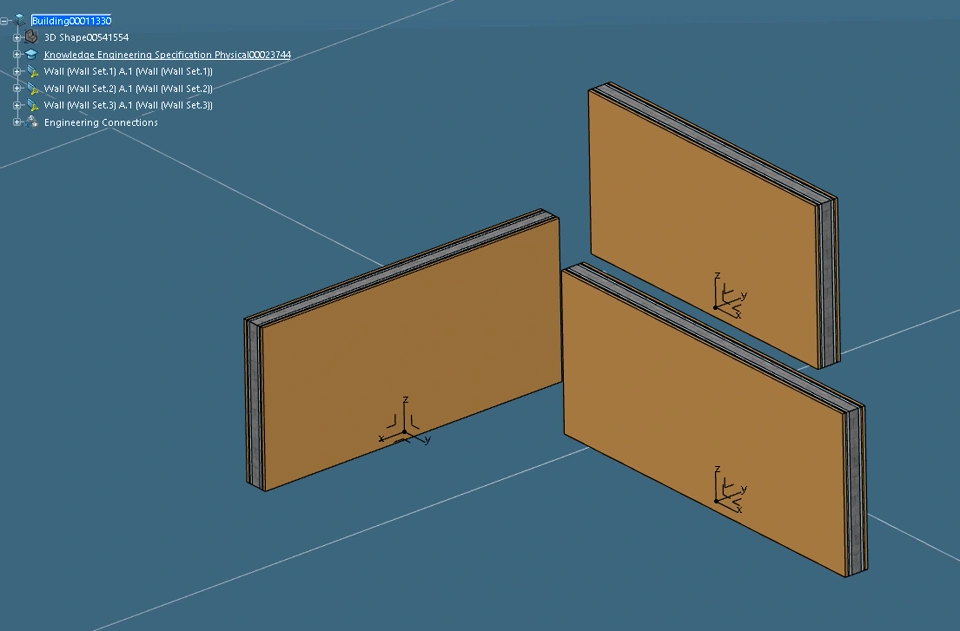

Select "Process." Once complete, the wall assemblies should now be created in the desired product
