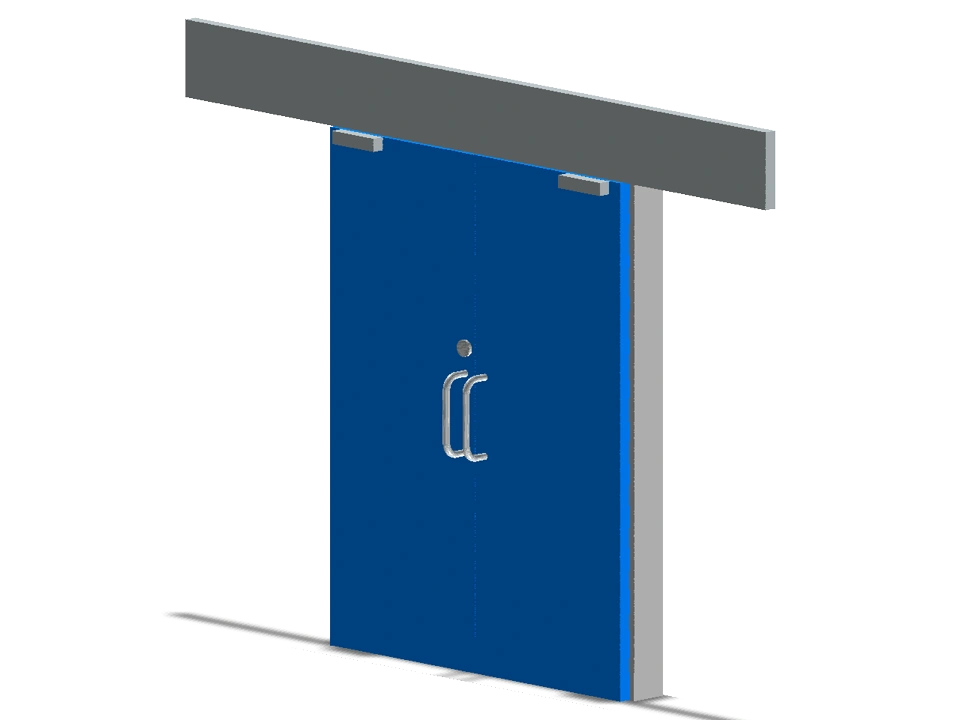

Object Type Name: OT-Door-Sliding Door
Documentation:

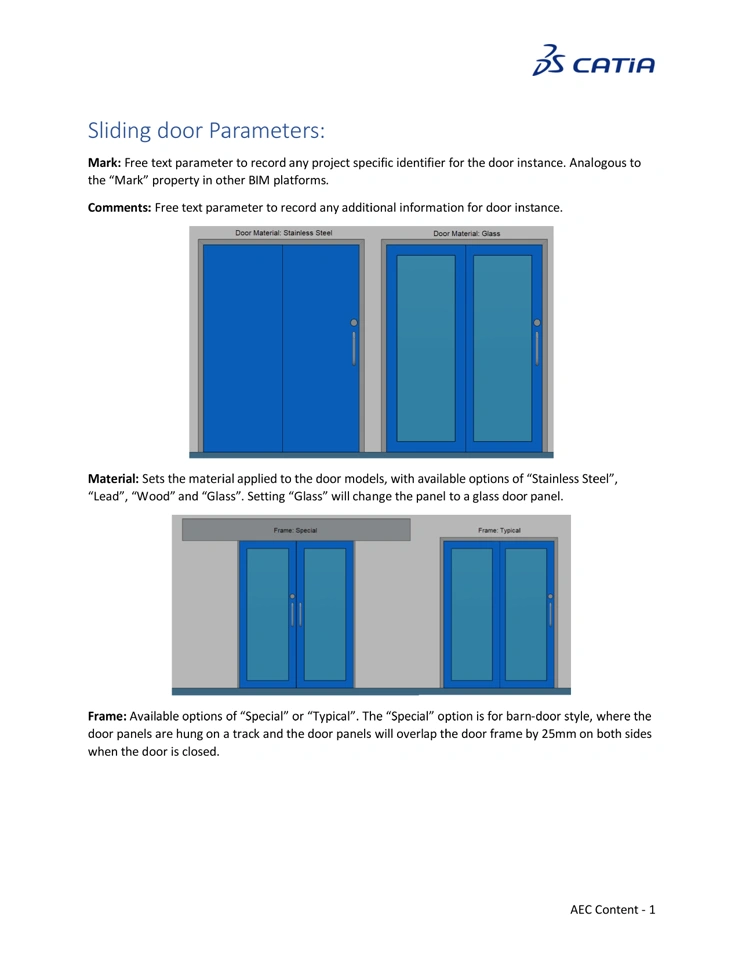

Sliding door Parameters:
Mark: Free text parameter to record any project specific identifier for the door instance. Analogous to the “Mark” property in other BIM platforms.
Comments: Free text parameter to record any additional information for door instance.
Material: Sets the material applied to the door models, with available options of “Stainless Steel”, “Lead”, “Wood” and “Glass”. Setting “Glass” will change the panel to a glass door panel.
Frame: Available options of “Special” or “Typical”. The “Special” option is for barn-door style, where the door panels are hung on a track and the door panels will overlap the door frame by 25mm on both sides when the door is closed.
Number of panels: Determines the number of door panels with available choices of 1 or 2. The 1 panel option is only available when Frame is set to “Special”.
Door height: Distance from the floor to the inside face of the door frame.
Door width: The horizontal distance between the inside face of the door frame.
Jamb width: The door frame width.
Jamb depth: The door frame depth, parallel with the egress direction.
Panel thickness: The door panel thickness.
Bottom clearance: The clearance between the door panel bottom and the floor. This does not affect the door height.
Door sliding direction: To determine when side the door panel will slide to open, choose between “Left”, “Right” and “Center”. “Center” will only affect the geometry if Frame is set to “Special”.
Percentage open amount: Value from 0 to 100, sets how much the door is opened.
Lites: Adds a window to each door panel. With choices of “None”, “Circular”, “Rectangular”, “Square” and “Door wide horizontal rectangle”. Will not generate windows if the door material is set to “Glass”.
Lite position: Sets the window position on the door panel, with available options of “Center”, “Handle Side” and “Hinge Side”. “Handle Side” offsets the window onto the door panel half closest to the door handle and “Hinge Side” offsets onto the opposite half that is closest to the door hinges.
Lite size: Sets the window size, with choices of “Small”, “Medium” and “Large”. “Medium” is the base case and set the window width (or diameter for circular windows) to 200mm. “Small” and “Large” are 40% smaller and larger respectively. For “Rectangular” windows, the vertical height dimension is 2.5 times the window width.
Accessible: Sets the door handle size, with available choices of “Regular” and “Disability”. The “Disability” option generates a larger door handle.
2D symbol: Enables the 2D drafting symbol in the model. Enabling this checkbox will also hide the geometry in the higher level of development models.
2D symbol open position: Modifies the 2D drafting symbol to show the door fully opened.
Peephole: Adds the peephole geometry to the 3D model. Does not add the peephole geometry if the door material is set to glass or if the door windows are enabled.
Peephole type: Information only, choose between “F+P M. Silver” and “F+P M. Brass”.
Flush bolts: Adds the flush bolt geometry to all door panels.
Closer: Choose between “None” and “Sliding closing mechanism”, this adds the closer 3D model. Only modifies geometry when Frame is set to “Special”.
Lock: Enables the lock model.
Lock types: Information only, choose between “BCC”, “SUR”, “SUR 120def Axis”, “3 points A2P* V. 5000”, “3 points B. 81.50” and “3 points A2P* B. 81.61”.
Lock reinforcement: Information only, choose between “None”, “1 point”, “3 points” and “5 points”.
Drop seal type: Information only. Options are “Hardwood threshold”, “Sealed elsewhere”, “Painted steel threshold” and “Brush seal”. The drop seal geometry is always present.
Type of fixing: Information only, choose between “Plasterboard”, “White finish”, “Door frame and counter-frame”, “Tunnel frame”, “Drywall partition system with Omega profiles”, Precast plaster blocks” and “Renovation”.
Bottom fixings: Information only, choose between “None”, “2” and “4”.
Acoustic performance: Information only, choose between “N/A”, “30dB”, “64dB” and “90dB”.
Fire rating: Information only, choose between “Not rated”, “E15”, “E30”, “E60”, “E130”, and “E160”.
Anti-lift pins: Information only, choose between “None”, “2”, “3” and “4”.
Finish: Information only, choose between “Painted” and “Glossy white – RAL9016”.
Type of wood frame: Information only, choose between “Hardwood”, “Softwood”, “Softwood – 28dB rated”, “Hardwood – 28dB rated”, “Hardwood – 38dB rated”, “Hardwood – 40dB rated” and “Hardwood – 38dB rated – CL3”.
Type of frame: Information only, choose between “Unpainted”, “Laminated wood”, “2 profile molding” and “3 profile molding”.
Door facing: Information only, choose between “Unpainted”, “Laminated wood”, “2 profile molding” and “3 profile molding”.
