Rectangular Recessed

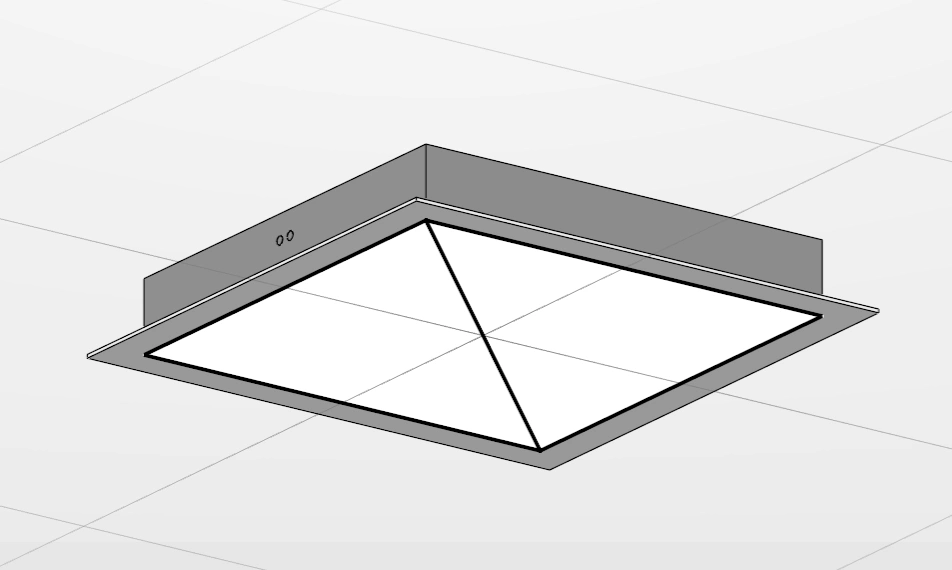

Model 600mmL x 600mmW

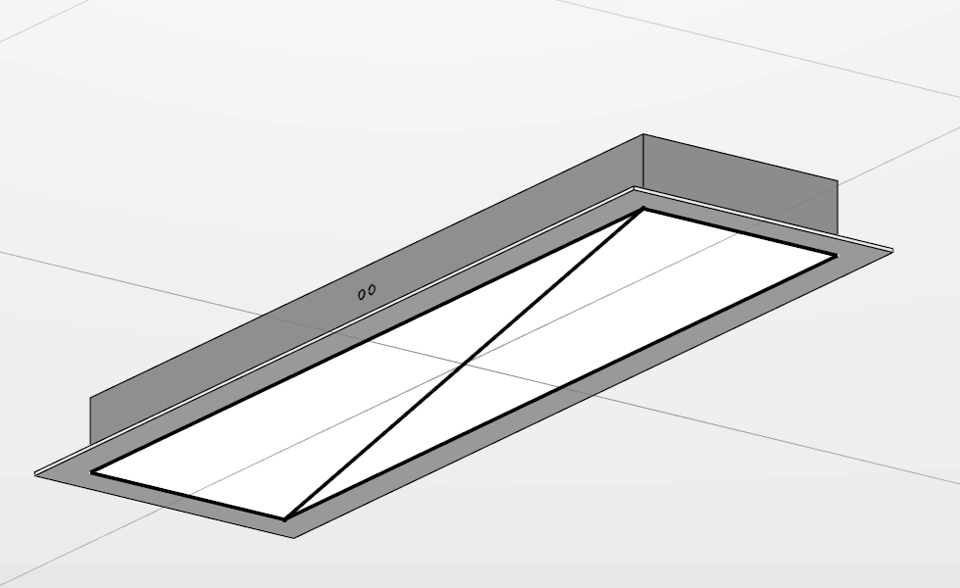

Model 1200mmL x 150mmW

Model 1200mmL x 300mmW

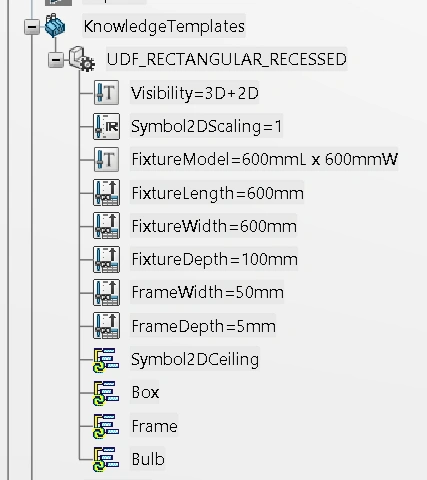

Features embedded in the part

1. Visibility

This parameter is located under "Parameters" > "DS_Customer_Parameter" and it would control the visibility of the main two outputs, the 3D model and the 2D symbol.

2. Symbol2DScaling

This parameter is located under "Parameters" > "DS_Customer_Parameter" and it would control the scale of the 2D symbol.

3. Fixture Model

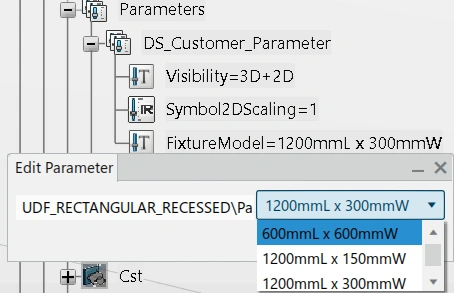

This parameter is located under "Parameters" > "DS_Customer_Parameter". Select here the desired model of this fixture type.

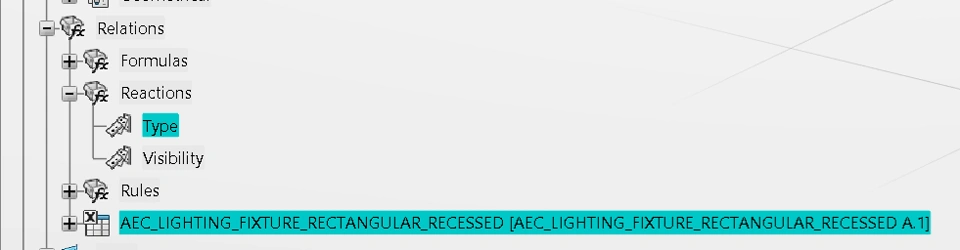

Models available in this dropdown are controlled by the design table of this fixture type and the reaction called 'Type'.

4.Luminiscent material

This luminescent material has been applied to a volume called 'Bulb' which would allow to create lighting renderings.

5. Electrical Ports

This fixture is compatible with electrical routing data setup, it includes with the following electrical ports.

6. Knowledge Template

This fixture includes a knowledge template which requires also an axis system as input to be instantiated.

3DXML
