3DXML:

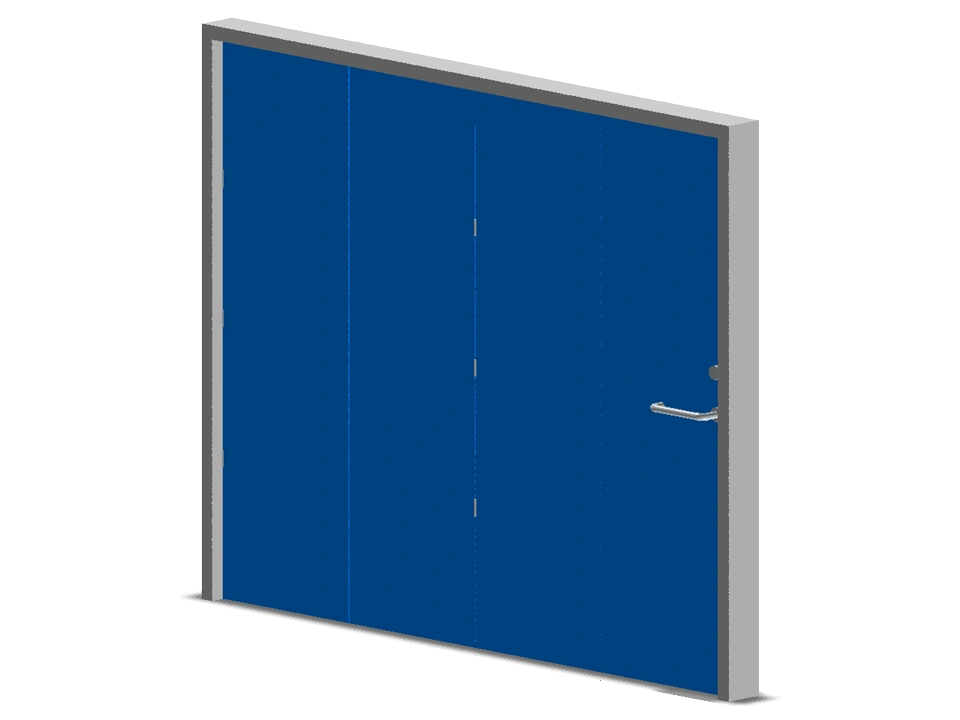

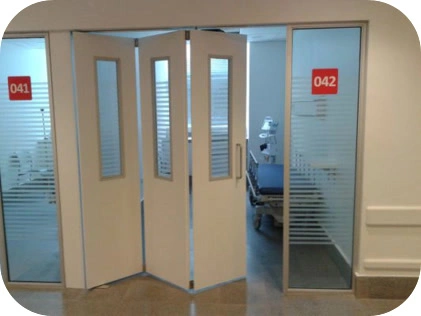

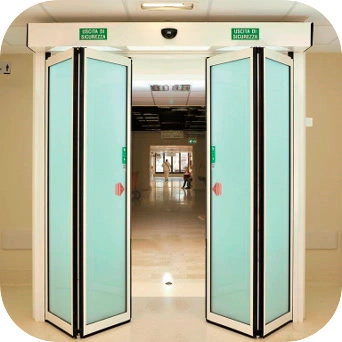

Object Type Name: OT-Door-Folding Door
Documentation:

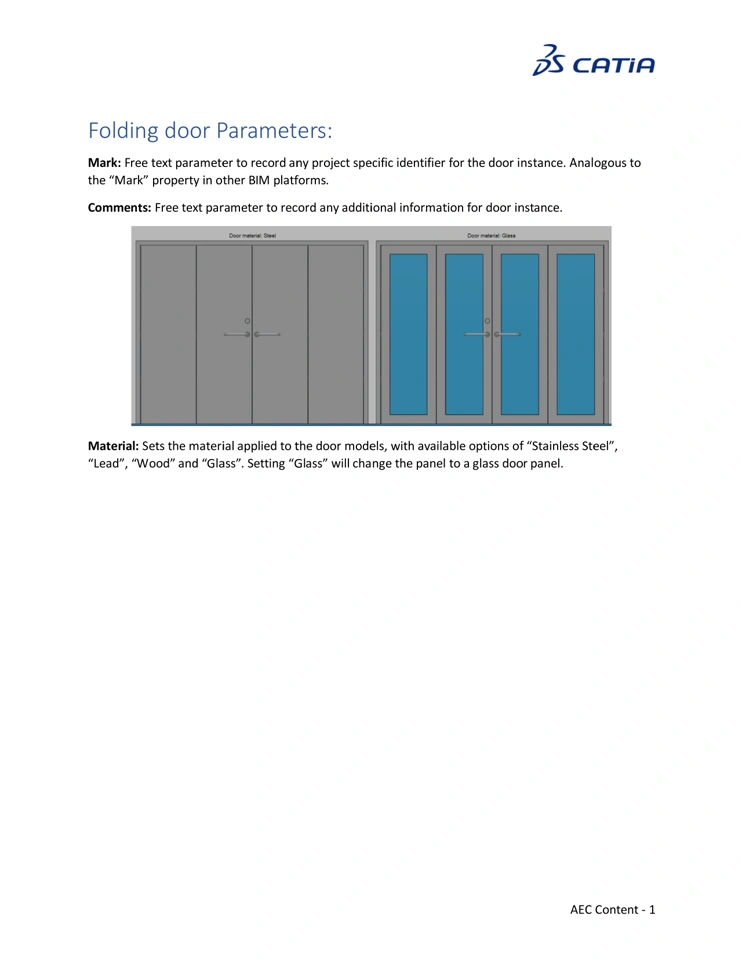

Folding door Parameters:
Mark: Free text parameter to record any project specific identifier for the door instance. Analogous to the “Mark” property in other BIM platforms.
Comments: Free text parameter to record any additional information for door instance.
Material: Sets the material applied to the door models, with available options of “Stainless Steel”, “Lead”, “Wood” and “Glass”. Setting “Glass” will change the panel to a glass door panel.
Number of panels: Determines the number of door panels with available choices of 2, 3 or 4.
Door height: Distance from the floor to the inside face of the door frame.
Door width: The horizontal distance between the inside face of the door frame.
Jamb width: The door frame width.
Jamb depth: The door frame depth, parallel with the egress direction.
Panel thickness: The door panel thickness.
Hinge side: Determines which side the door hinges will attach to the door frame, with options of “Left”, “Right” or “Both”. “Both” only has effect when the number of panels is 4, otherwise it has the same effect as “Left”. The side that the hinge attaches to is viewed from the side where the door folds out towards.
Bottom clearance: The clearance between the door panel bottom and the floor. This does not affect the door height.
Door open state: Determines if the door in 3D is opened, with 3 options of “Closed”, “Half opened” and “Fully opened”.
Lites: Adds a window to each door panel. With choices of “None”, “Circular”, “Rectangular”, “Square” and “Door wide horizontal rectangle”. Will not generate windows if the door material is set to “Glass”.
Lite position: Sets the window position on the door panel, with available options of “Left”, “Center” and “Right”. This is viewed from the side where the door folds out towards.
Lite size: Sets the window size, with choices of “Small”, “Medium” and “Large”. “Medium” is the base case and set the window width (or diameter for circular windows) to 200mm. “Small” and “Large” are 40% smaller and larger respectively. For “Rectangular” windows, the vertical height dimension is 2.5 times the window width. This parameter is not applied when the “Door wide horizontal rectangle” option is selected. For “Door wide horizontal rectangle”, the window height is 28in and the width is the panel width minus 200mm.
Hinges: Controls how many instances of hinge the geometry is generated in the 3D. Available choices are “None”, “2”, “3” and “4”. Choosing “None” will remove all hinge geometry from the 3D and the 2D drafting symbol.
Accessible: Sets the door handle size, with available choices of “Regular” and “Disability”. The “Disability” option generates larger door handle models for the “Lever” and “Vertical Bar” door handle options. For other door handles choices, the parameter does not modify the geometry.
2D symbol: Enables the 2D drafting symbol in the model. Enabling this checkbox will also hide the geometry in the higher level of development models.
2D symbol open position: Modifies the 2D drafting symbol to show the door fully opened.
Door handle: Selects the door handle model from the available choices of “Lever”, “Push Pull Latch” and “Vertical Bar”.
Panel edges: For information only, available options of “Normal” and “Overlay”. To document if there is an overlap between the door panels and door frame.
Door edges: For information only, available options of “Normal” and “Overlay”. To document if there is an overlap on the door handle edge of the door panel.
Flush bolts: Adds the flush bolt geometry to the door panel that opens.
Closer: Choose between “None” and “Folding mechanism”, this adds the closer 3D model.
Lock: Enables the lock model.
Lock types: Information only, choose between “BCC”, “SUR”, “SUR 120def Axis”, “3 points A2P* V. 5000”, “3 points B. 81.50” and “3 points A2P* B. 81.61”.
Lock reinforcement: Information only, choose between “None”, “1 point”, “3 points” and “5 points”.
Drop seal type: Enables the drop seal geometry. Options are “Hardwood threshold”, “Sealed elsewhere”, “Painted steel threshold”, “Brush seal” and “None”. Choosing “None” will remove the drop seal geometry and there is no visible difference between the other choices reflected in the 3D. The drop seal geometry also only be generated if the “Bottom clearance” is greater than 0mm.
Type of fixing: Information only, choose between “Plasterboard”, “White finish”, “Door frame and counter-frame”, “Tunnel frame”, “Drywall partition system with Omega profiles”, Precast plaster blocks” and “Renovation”.
Bottom fixings: Information only, choose between “None”, “2” and “4”.
Acoustic performance: Information only, choose between “N/A”, “30dB”, “64dB” and “90dB”.
Fire rating: Information only, choose between “Not rated”, “E15”, “E30”, “E60”, “E130”, and “E160”.
Anti-lift pins: Information only, choose between “None”, “2”, “3” and “4”.
Finish: Information only, choose between “Painted” and “Glossy white – RAL9016”.
Type of wood frame: Information only, choose between “Hardwood”, “Softwood”, “Softwood – 28dB rated”, “Hardwood – 28dB rated”, “Hardwood – 38dB rated”, “Hardwood – 40dB rated” and “Hardwood – 38dB rated – CL3”.
Type of frame: Information only, choose between “Unpainted”, “Laminated wood”, “2 profile molding” and “3 profile molding”.
Door facing: Information only, choose between “Unpainted”, “Laminated wood”, “2 profile molding” and “3 profile molding”.
